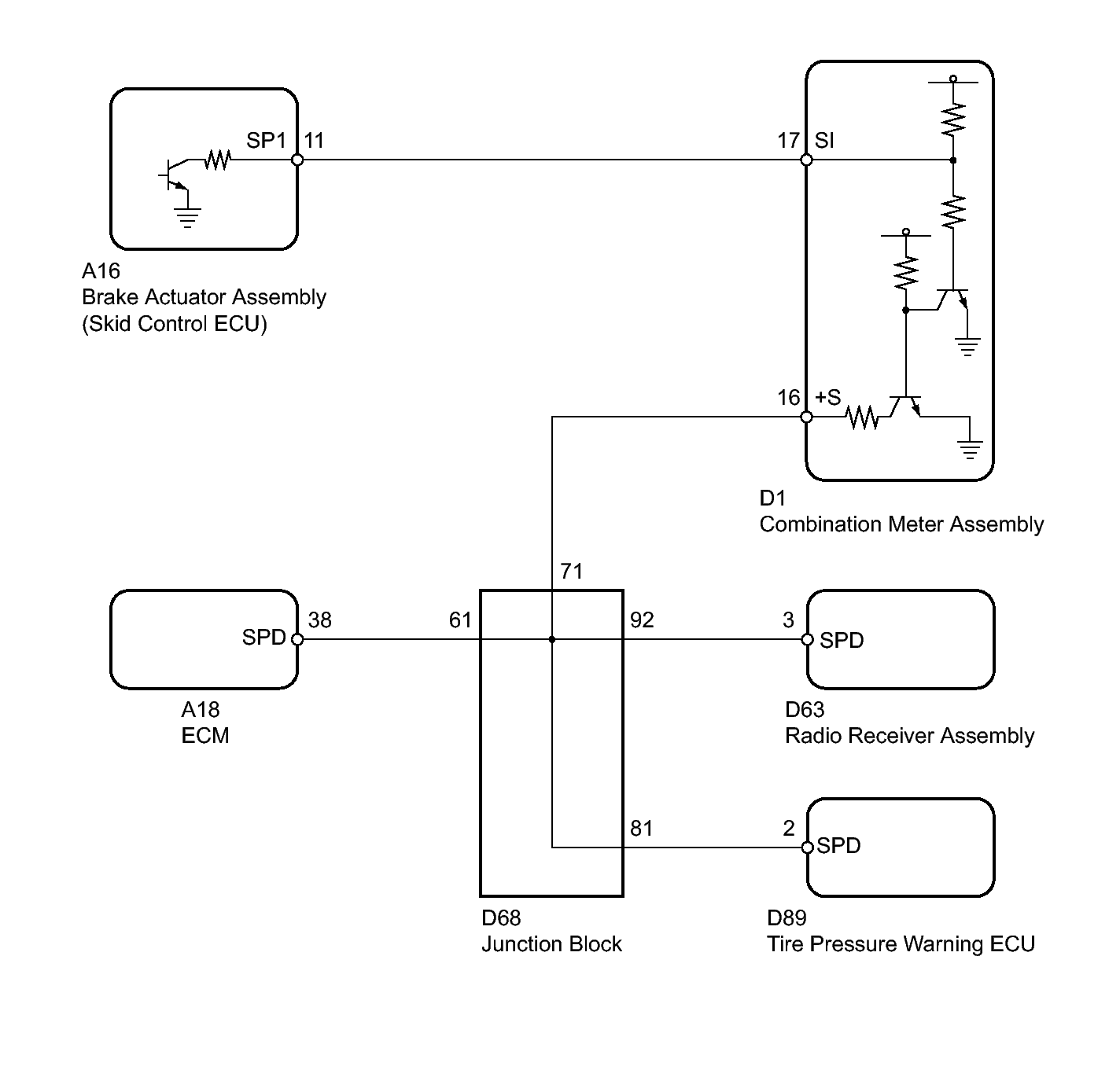

Home >> Scion >> 2013 >> iQ Base >> Repair and Diagnosis >> Electrical >> Gauges >> Meter / Gauge / Display (Diagnostic Codes & Symptom Tests) (Except Electric) >> Meter / Gauge System >> Symptom Tests >> Speed Signal Circuit >> Wiring Diagram
