Light Control Switch Circuit: Wiring Diagram

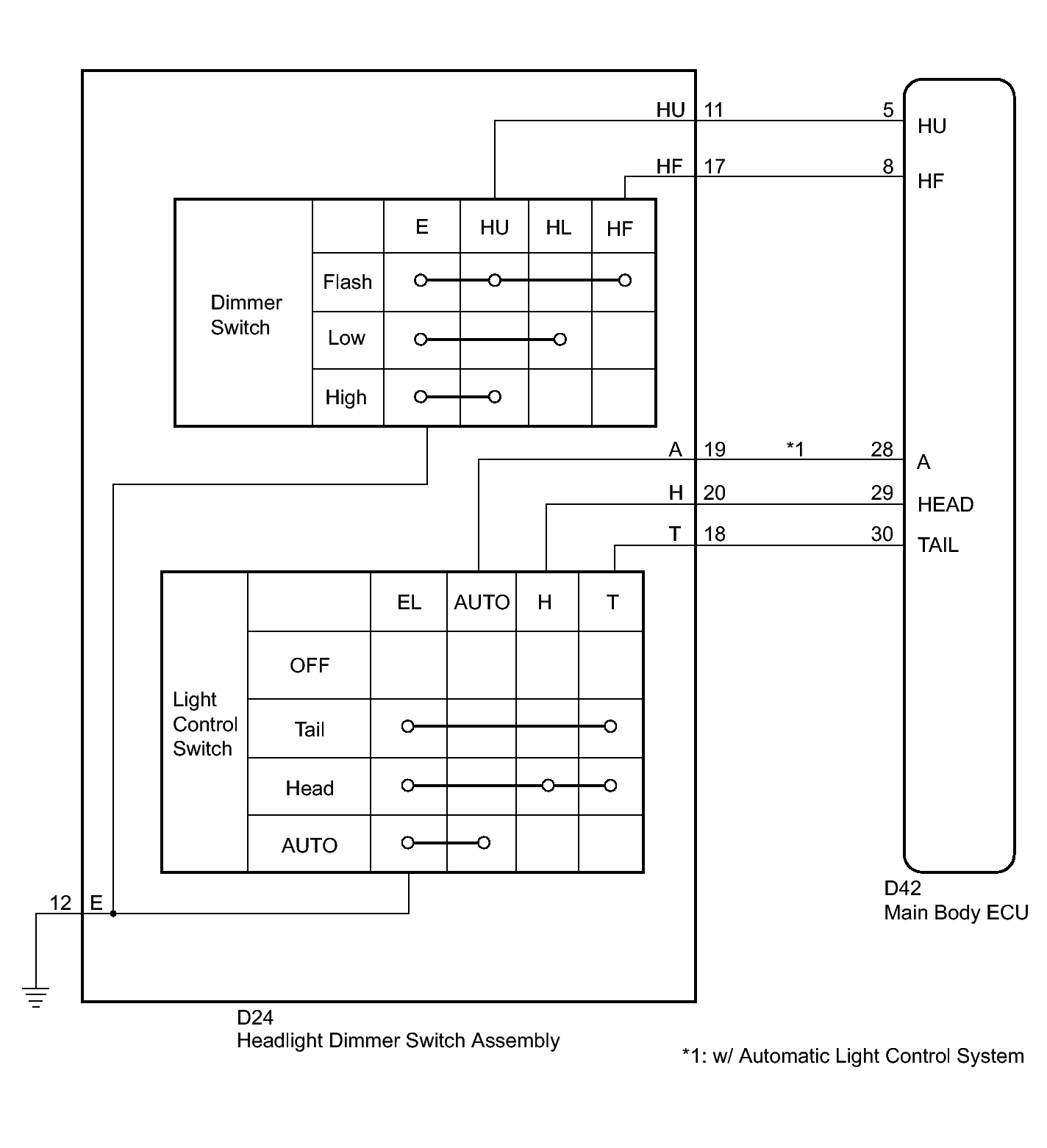

Fig 1: Light Control Switch Wiring Diagram

GTY346758

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
