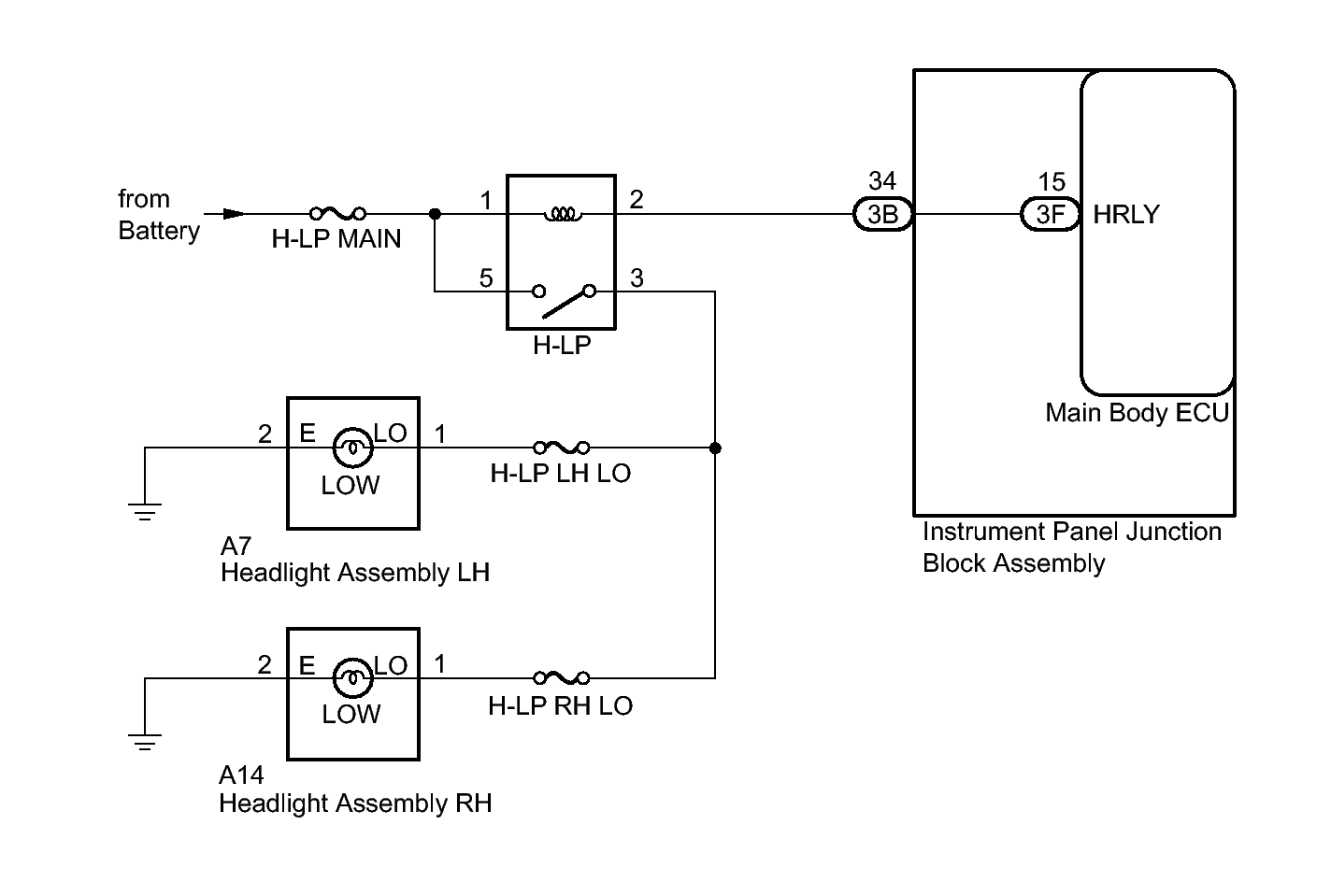

Home >> Scion >> 2013 >> iQ Base >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Lighting System (Exterior) (Diagnostic Codes & Circuit Tests) (Except Electric) >> Lighting System >> Circuit Tests >> Headlight Relay Circuit >> Wiring Diagram
