Headlight (HI-BEAM) Circuit: Wiring Diagram

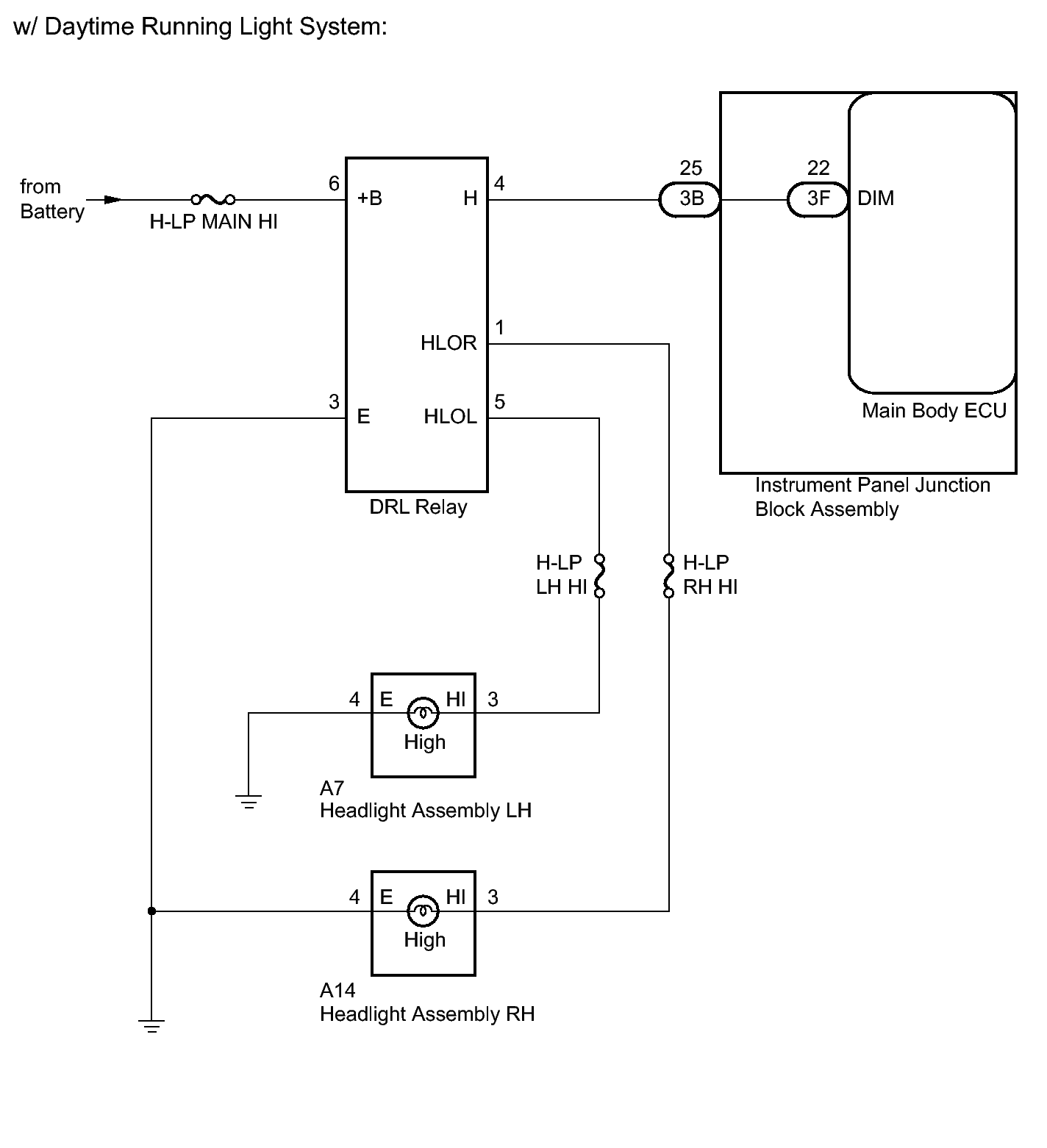

Fig 1: Headlight (HI-BEAM) (w/ Daytime Running Light System) Wiring Diagram
GTY347263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

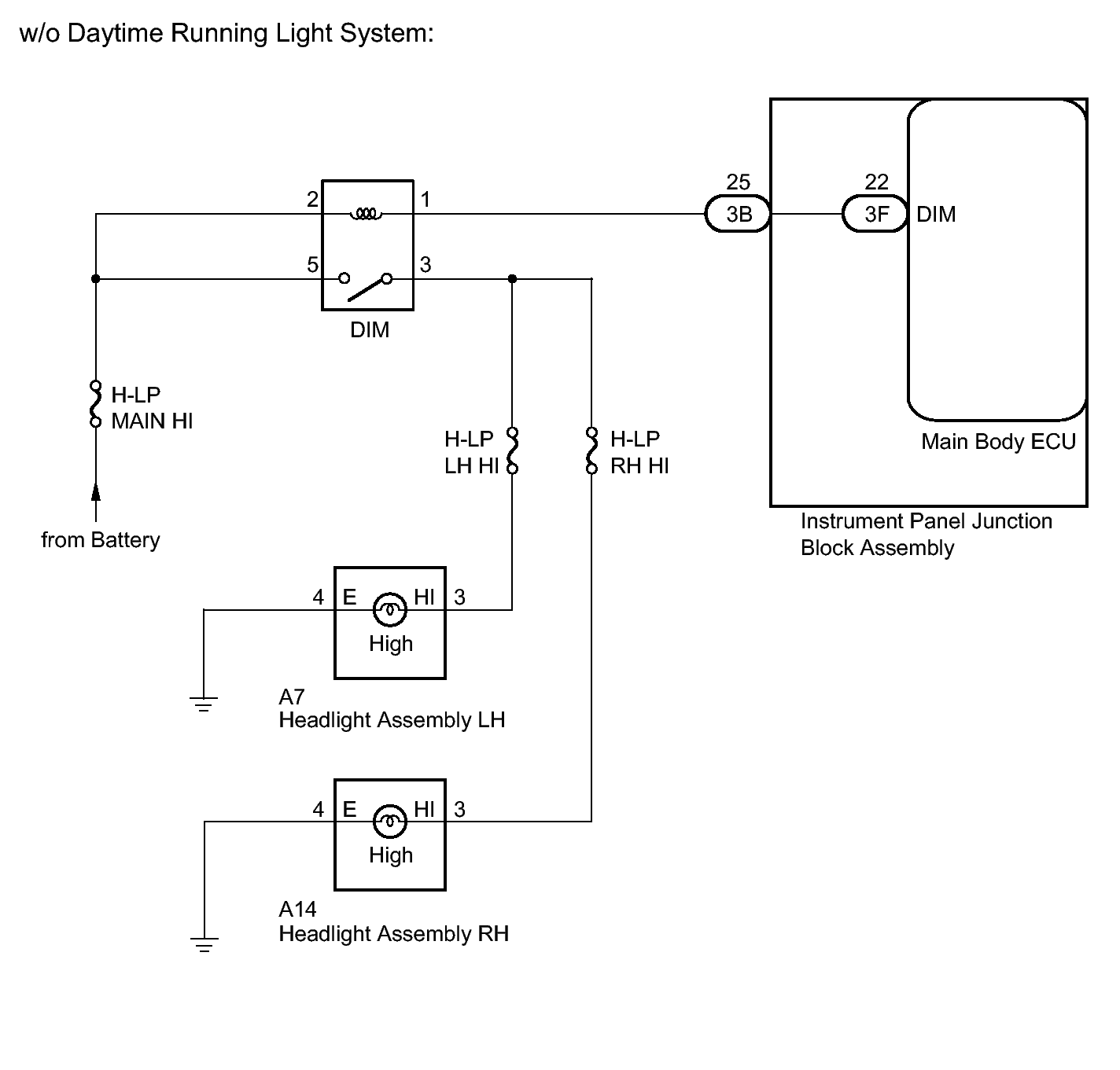

Fig 2: Headlight (HI-BEAM) (w/o Daytime Running Light System) Wiring Diagram
GTY346321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
