Starter Signal Circuit: Wiring Diagram

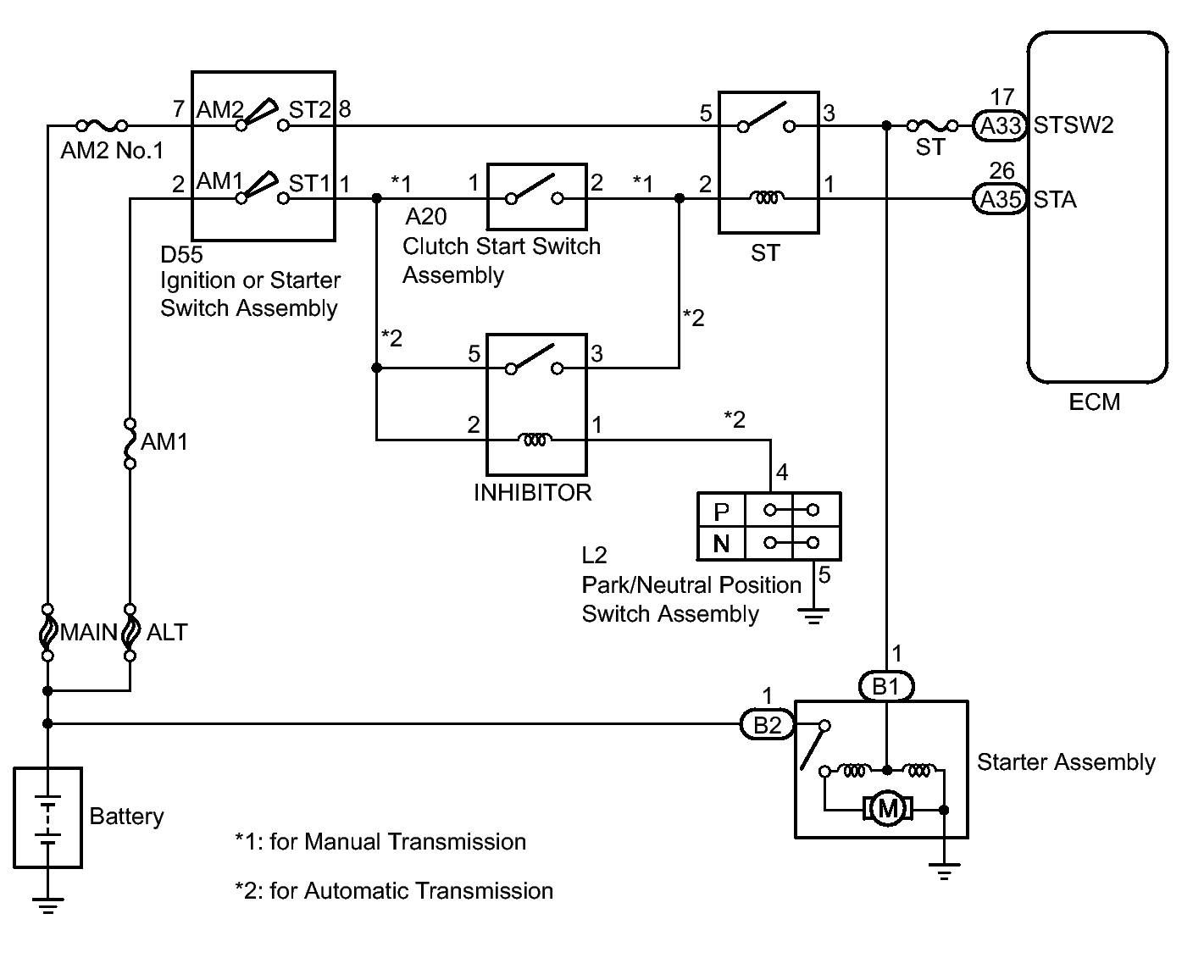

Fig 1: Identifying Starter Signal Wiring Diagram
GTY391883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

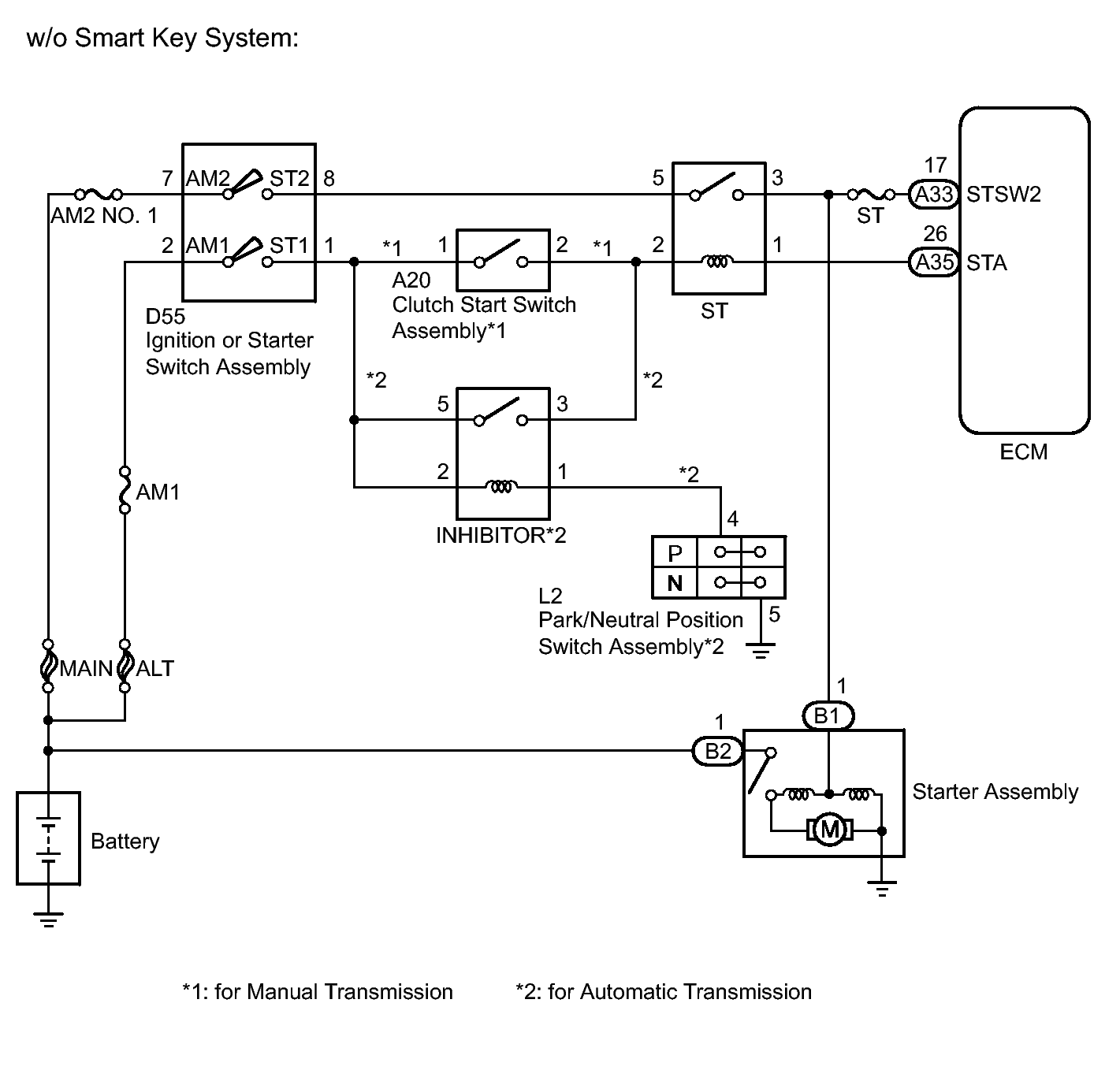

Fig 1: Identifying Starter Signal Wiring Diagram (W/O Smart Key System)
GTY391773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Starter Signal Wiring Diagram (W/ Smart Key System)
GTY387277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
