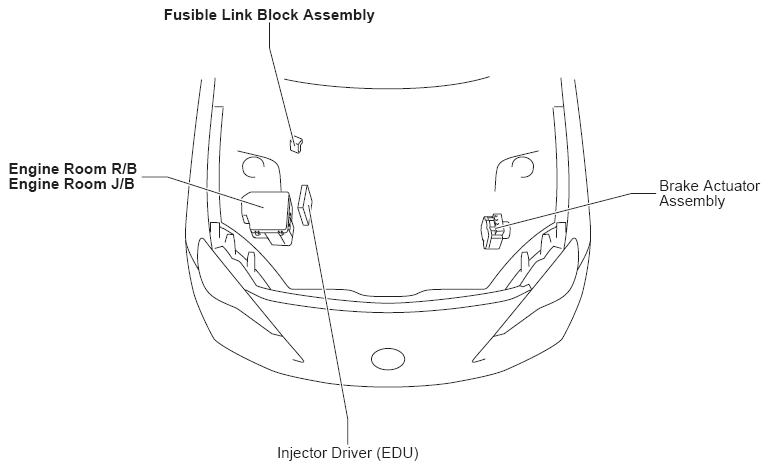

Engine Room Relay Block And Engine Room Junction Block - Right Engine Compartment
For additional information, refer to Figure.

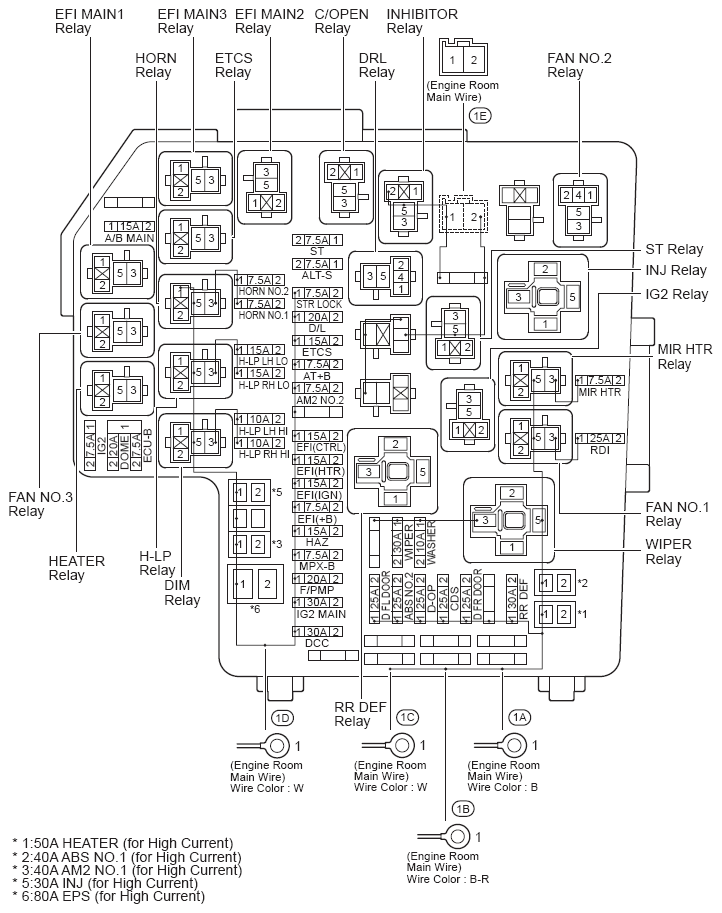

ENGINE ROOM R/B AND J/B RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| DIM Relay |
| H-LP Relay |
| Heater Relay |
| Fan No.3 Relay |
| EFI Main1 Relay |
| Horn Relay |
| EFI Main3 Relay |
| ETCS Relay |
| EFI Main2 Relay |
| C/Open Relay |
| DRL Relay |
| Inhibitor Relay |
| Fan No.2 Relay |
| ST Relay |
| INJ Relay |
| IG2 Relay |
| MIR HTR Relay |
| Fan No.1 Relay |
| Wiper Relay |
ENGINE ROOM R/B AND J/B FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | ALT-S | Charging |
| 7.5A | AT+B | Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock |
| 7.5A | ECU-B | ABS, TRAC and VSC |
| Air Conditioning | ||
| Combination Meter | ||
| Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock | ||
| Door Lock Control | ||
| Engine Immobiliser System | ||
| Headlight | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Key Reminder and Light Reminder | ||
| Luggage Compartment Door Opener | ||
| Mirror Heater and Rear Window Defogger | ||
| Power Window | ||
| Tire Pressure Warning System | ||
| Wireless Door Lock Control | ||
| 7.5A | EFI(+B) | Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock |
| 7.5A | HORN NO.1 | Horn |
| Wireless Door Lock Control | ||
| 7.5A | HORN NO.2 | Horn |
| Wireless Door Lock Control | ||
| 7.5A | IG2 | Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock |
| 7.5A | MIR HTR | Mirror Heater and Rear Window Defogger |
| 7.5A | MPX-B | ABS, TRAC and VSC |
| Air Conditioning | ||
| Combination Meter | ||
| Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock | ||
| Door Lock Control | ||
| Engine Immobiliser System | ||
| EPS | ||
| Headlight | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Key Reminder and Light Reminder | ||
| Luggage Compartment Door Opener | ||
| Mirror Heater and Rear Window Defogger | ||
| Power Window | ||
| Seat Belt Warning | ||
| SRS | ||
| Tire Pressure Warning System | ||
| Wireless Door Lock Control | ||
| 7.5A | ST | Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock |
| Starting | ||
| 10A | H-LP LH HI | Headlight |
| 10A | H-LP RH HI | Headlight |
| 10A | WASHER | Front Wiper and Washer |
| 15A | A/B MAIN | Seat Belt Warning |
| SRS | ||
| 15A | EFI (CTRL) | Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock |
| 15A | EFI (HTR) | Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock |
| 15A | EFI (IGN) | Ignition |
| 15A | ETCS | Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock |
| 15A | HAZ | ABS, TRAC and VSC |
| Combination Meter | ||
| Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock | ||
| Door Lock Control | ||
| Engine Immobiliser System | ||
| Headlight | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Key Reminder and Light Reminder | ||
| Luggage Compartment Door Opener | ||
| Power Window | ||
| Turn Signal and Hazard Warning Light | ||
| 15A | H-LP LH LO | Headlight |
| 15A | H-LP RH LO | Headlight |
| 20A | D/L | Door Lock Control |
| Luggage Compartment Door Opener | ||
| Wireless Door Lock Control | ||
| 20A | DOME | Audio System |
| Clock | ||
| Engine Immobiliser System | ||
| 20A | DOME | Interior Light |
| Seat Belt Warning | ||
| SRS | ||
| Wireless Door Lock Control | ||
| 20A | F/PMP | Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock |
| 25A | ABS NO.2 | ABS, TRAC and VSC |
| 25A | CDS | Cooling Fan |
| 25A | D FL DOOR | Power Window |
| 25A | D FR DOOR | Power Window |
| 25A | RDI | Cooling Fan |
| 30A | INJ | Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock |
| 30A | RR DEF | Mirror Heater and Rear Window Defogger |
| 30A | WIPER | Front Wiper and Washer |
| 40A | ABS NO.1 | ABS, TRAC and VSC |
| 40A | AM2 NO.1 | Cruise Control, Electronically Controlled Transmission and A/T Indicator (A/T), Engine Control, Shift Indicator (M/T) and Shift Lock |
| Starting | ||
| 50A | HEATER | Air Conditioning |
| 80A | EPS | EPS |
