Position of Parts in Engine Compartment

Fig 1: Engine Compartment Parts (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

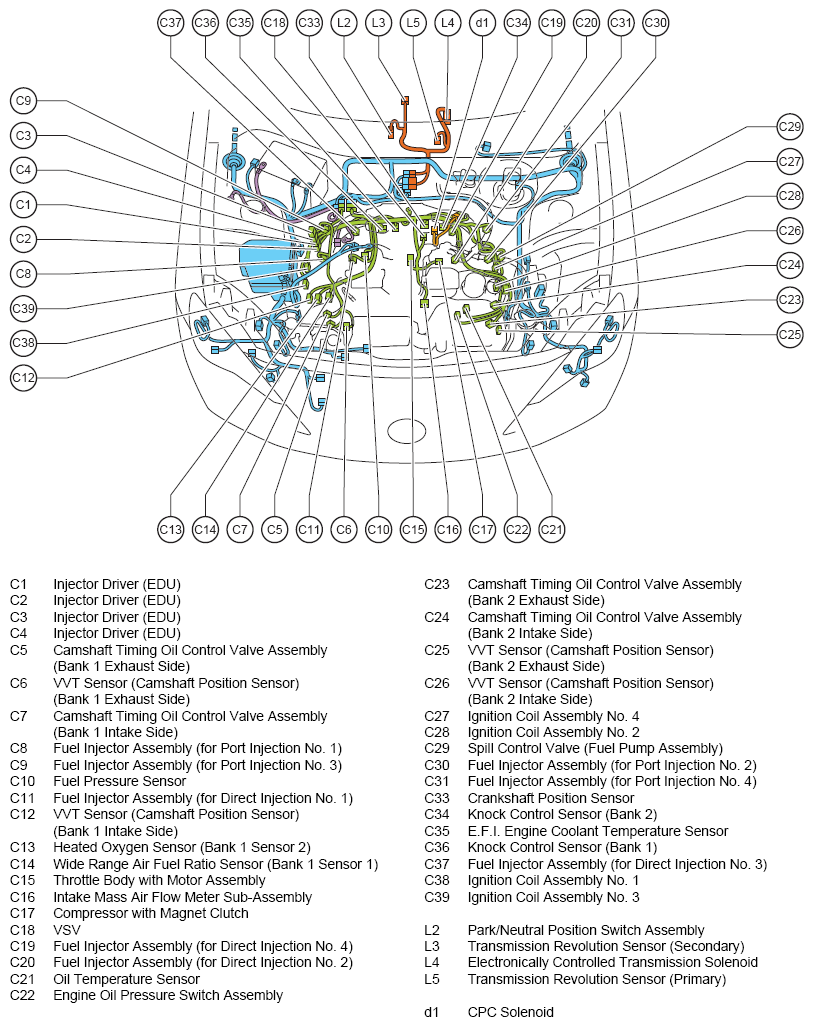

Fig 2: Engine Compartment Parts (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
