Parts Location [03/2012 - ]: Illustration

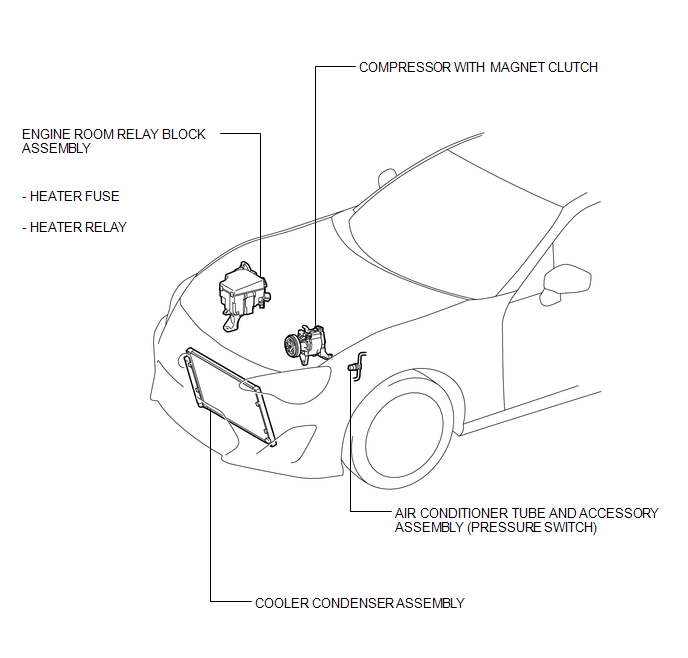

Fig 1: Identifying Air Conditioning System (for Manual Air Conditioning System) Component Location (1 Of 3)
GTY392262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

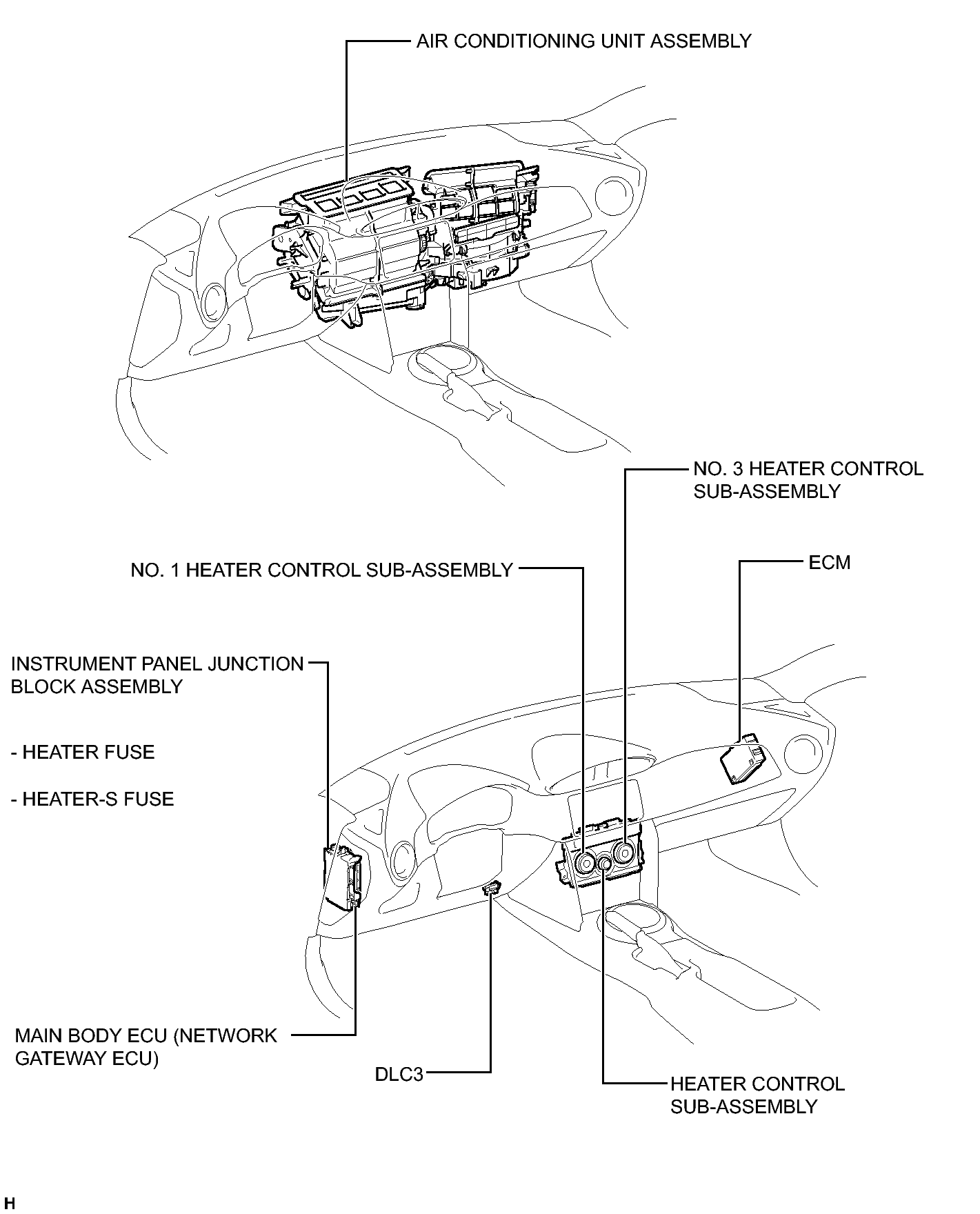

Fig 1: Identifying Air Conditioning System (for Manual Air Conditioning System) Component Location (2 Of 3)
GTY389770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

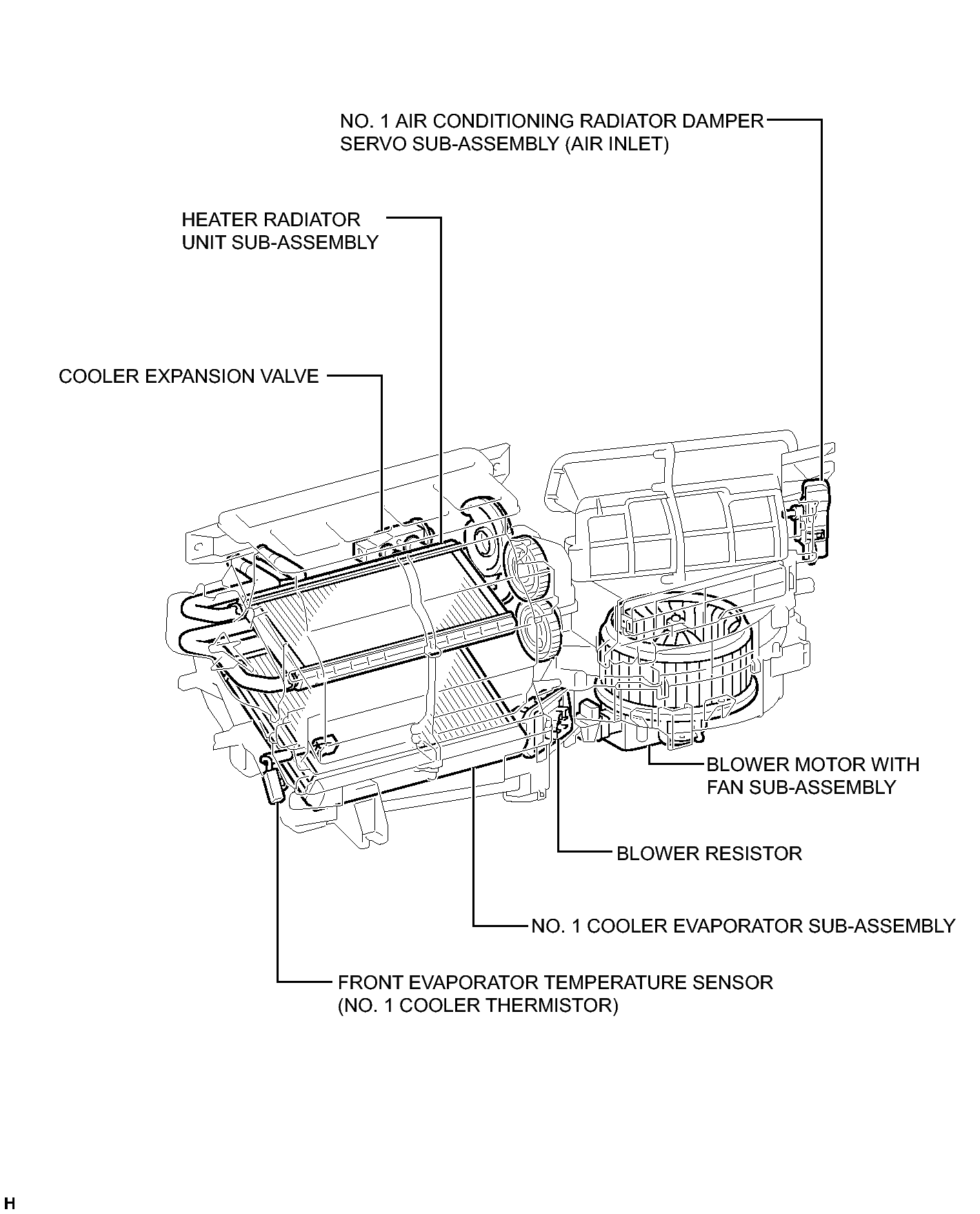

Fig 1: Identifying Air Conditioning System (for Manual Air Conditioning System) Component Location (3 Of 3)
GTY388211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
