Parts Location [03/2012 - 05/2013]: Illustration

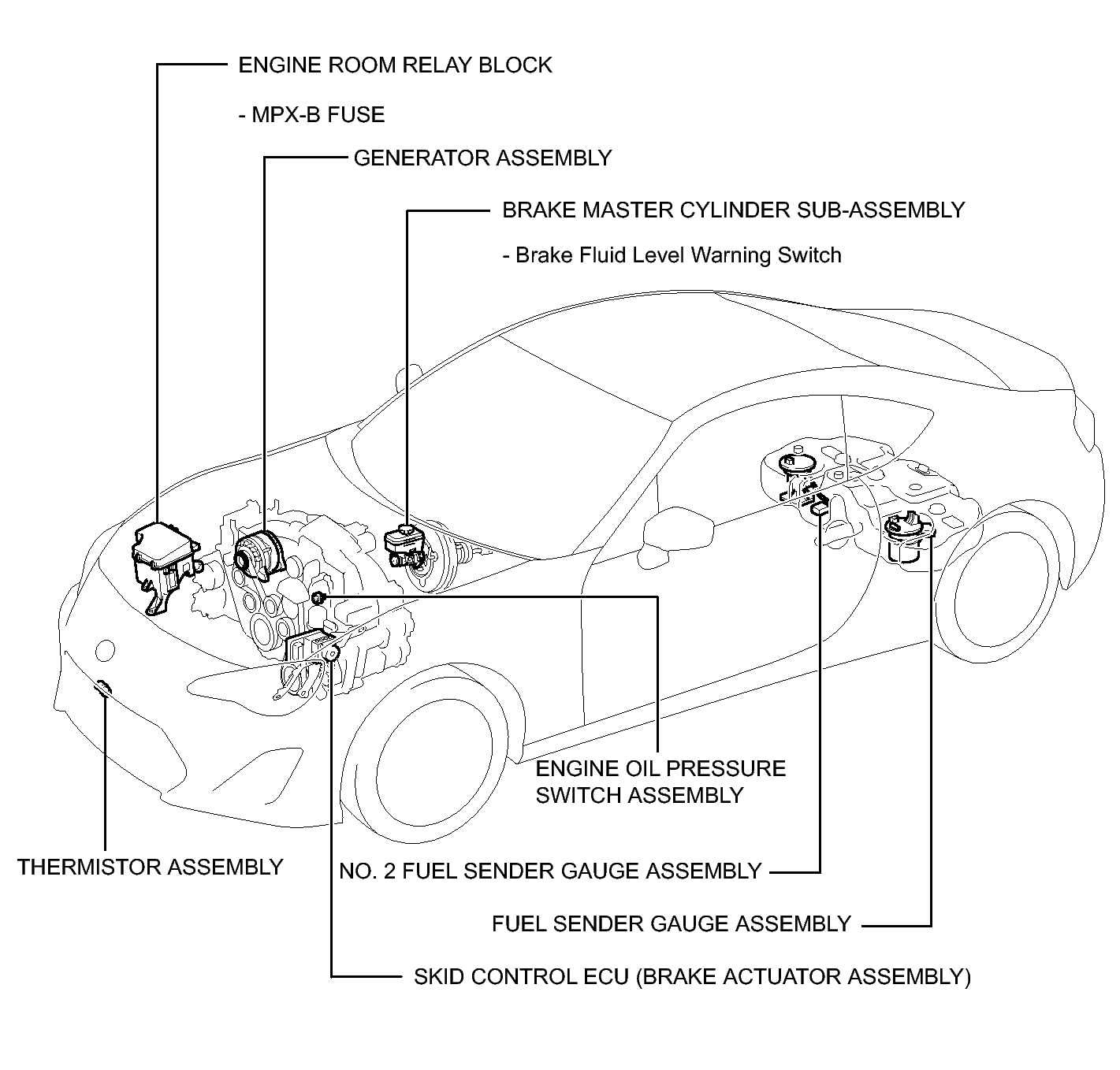

Fig 1: Identifying Meter/Gauge System Components Location (1 Of 2)
GTY385146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

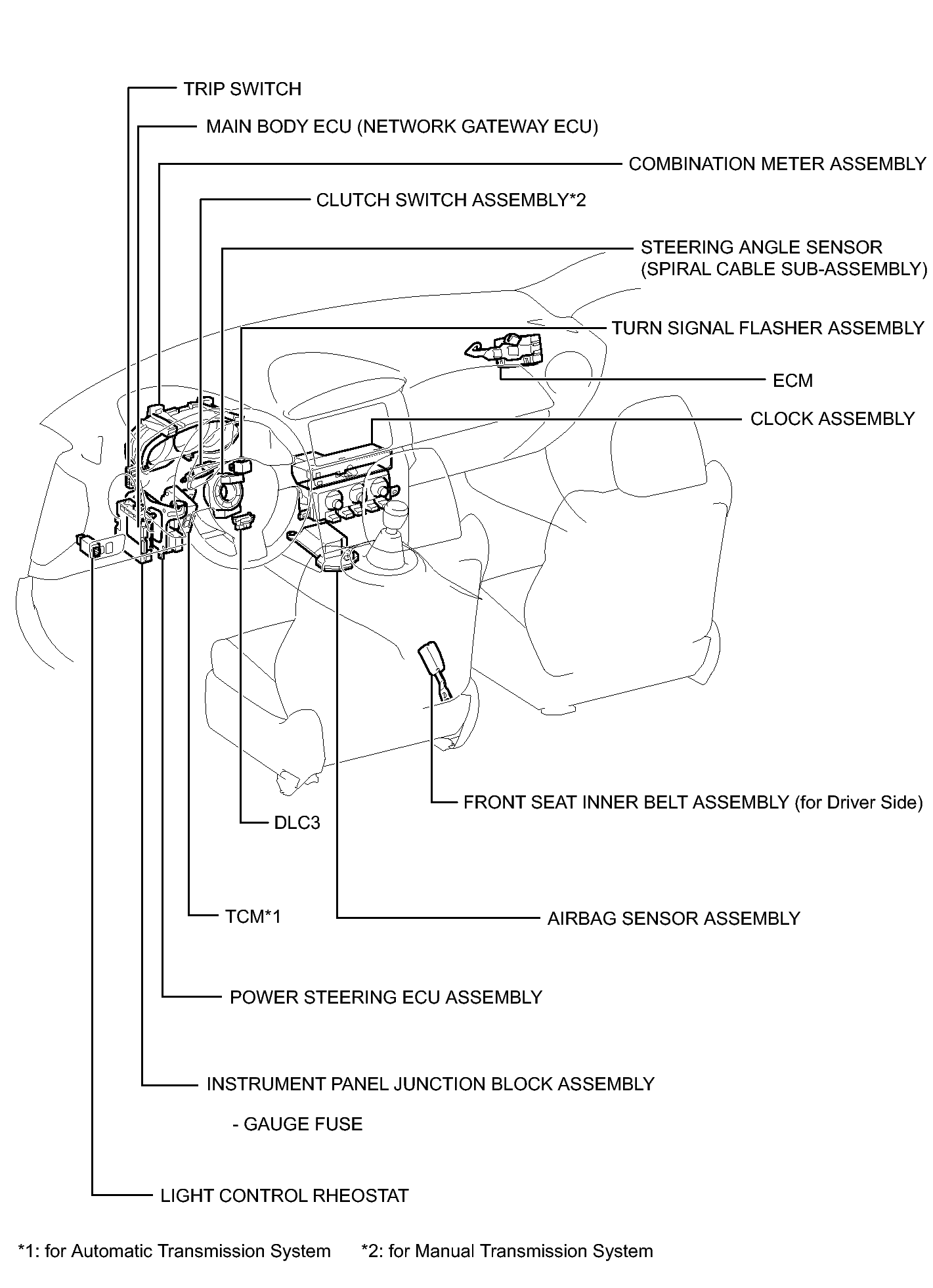

Fig 1: Identifying Meter/Gauge System Components Location (2 Of 2)
GTY388710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
