DTC B1500: Fuel Sender Open Detected: Wiring Diagram

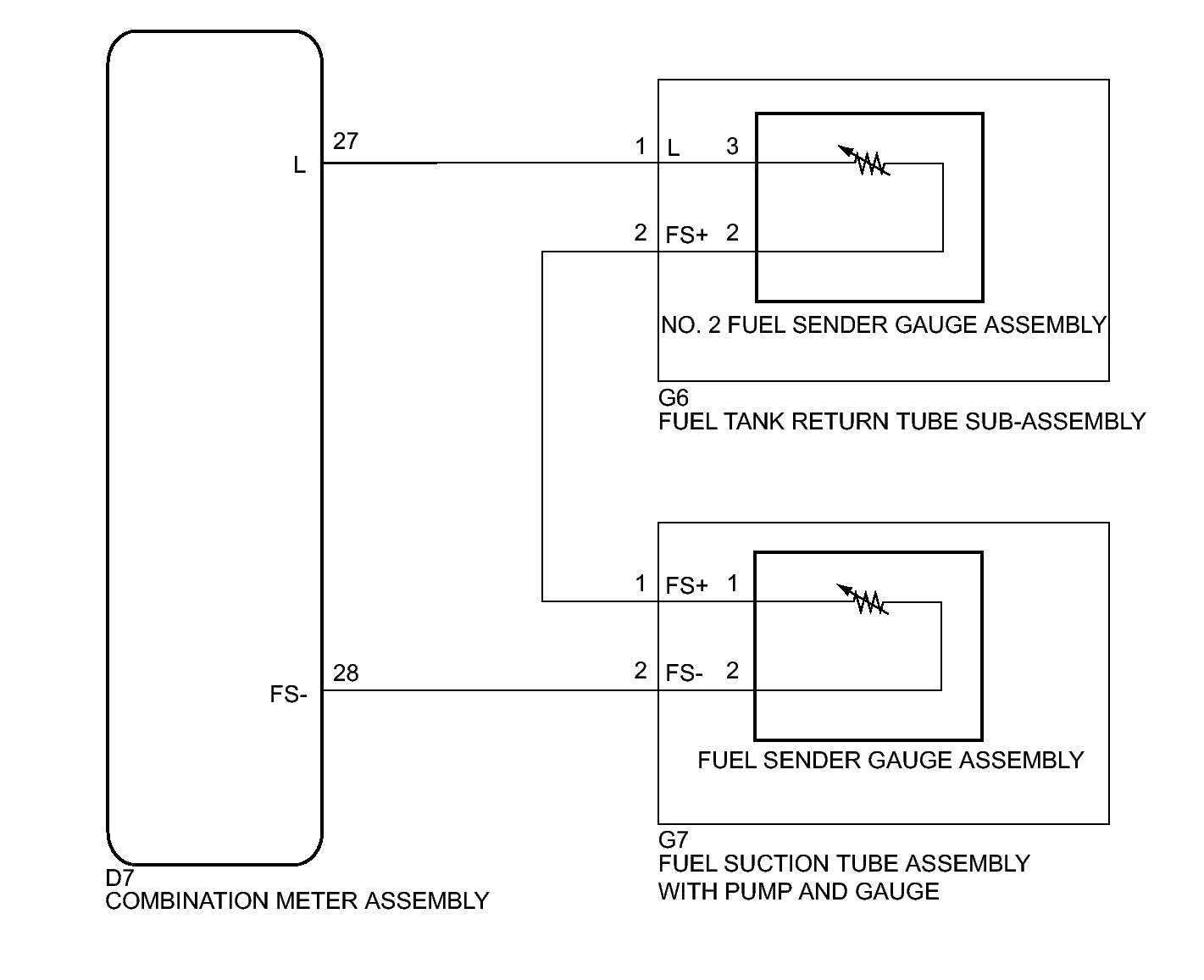

Fig 1: Identifying Combination Meter Assembly Wiring Diagram

GTY386250

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
