Turn Signal And Hazard Warning Light

Fig 1: Turn Signal And Hazard Warning Light Wiring Diagram (1 Of 3)
G08774532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

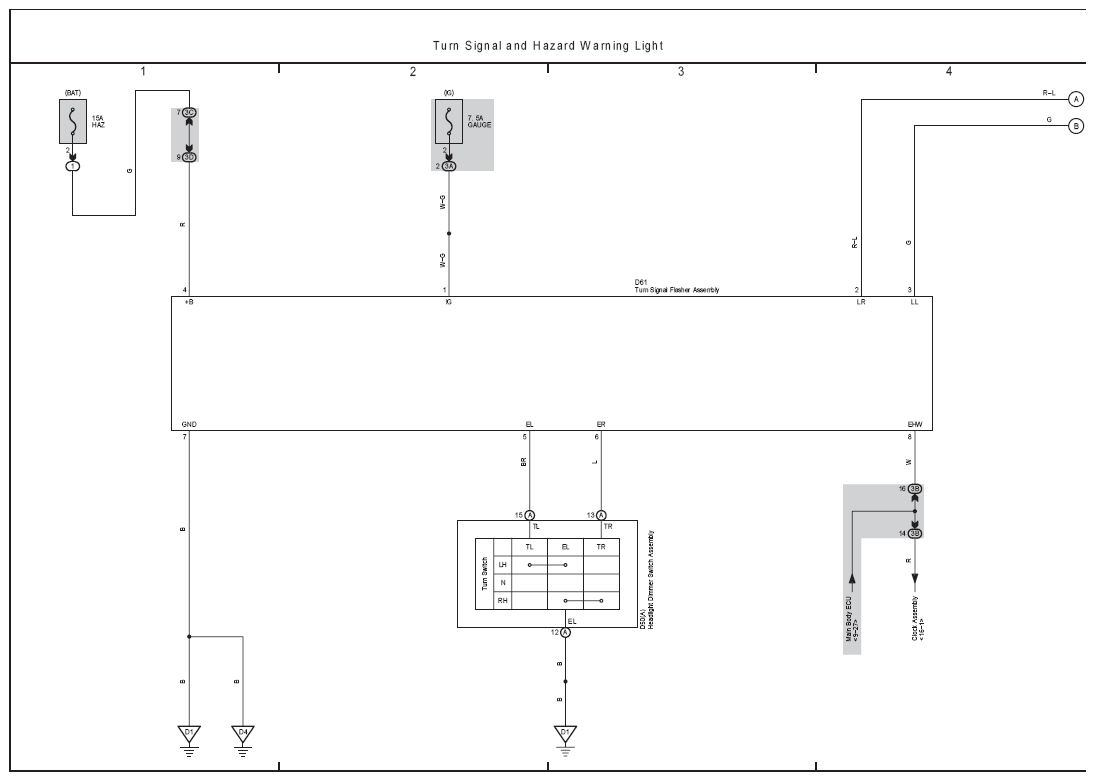

Fig 2: Turn Signal And Hazard Warning Light Wiring Diagram (2 Of 3)
G08774533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

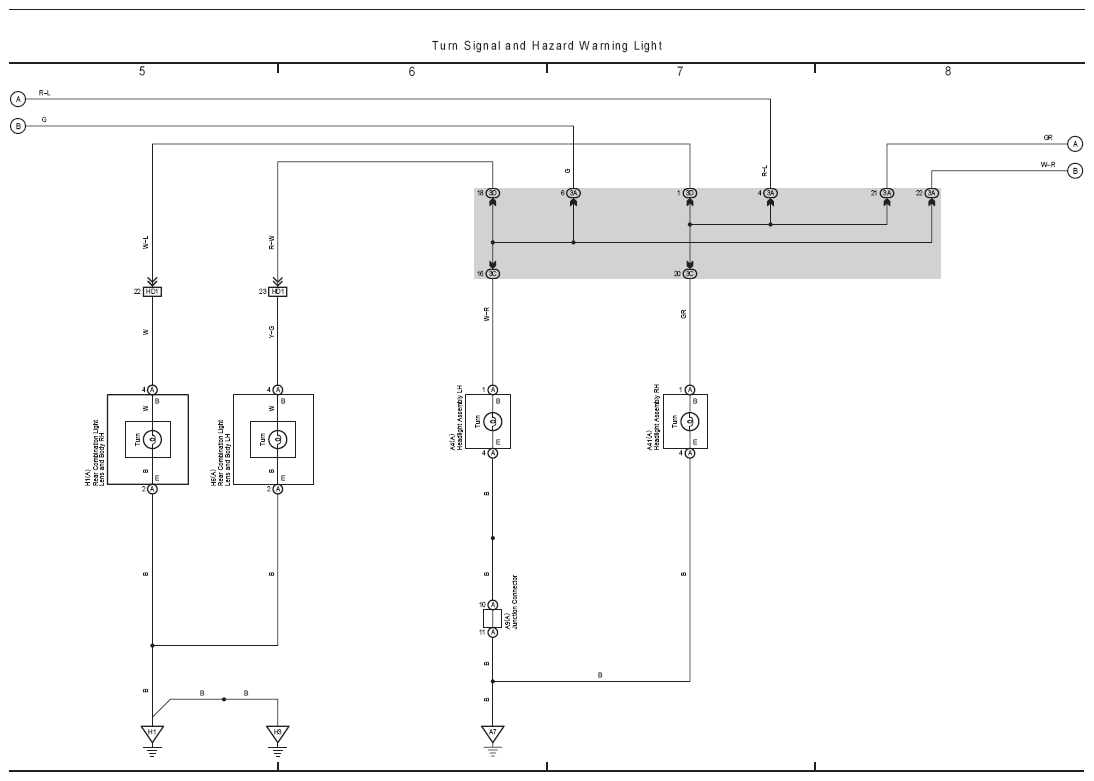

Fig 3: Turn Signal And Hazard Warning Light Wiring Diagram (3 Of 3)
G08774534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
