Shift Lock, Electronically Controlled Transmission And A/T Indicator (A/T)

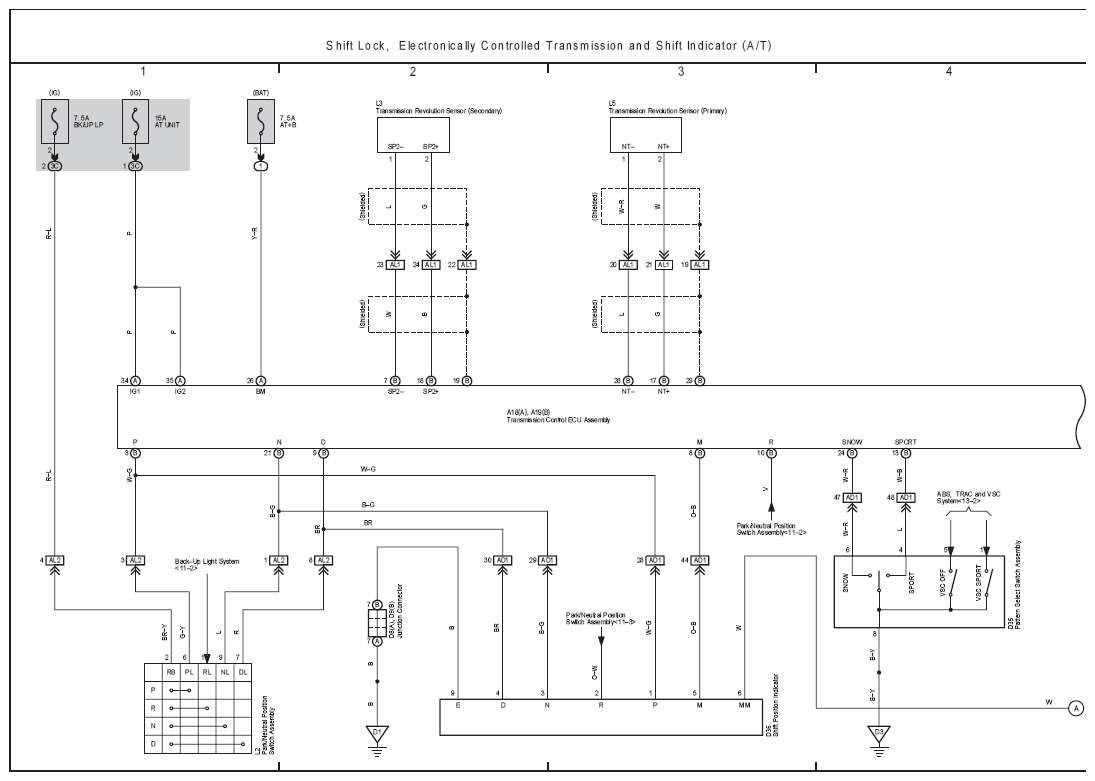

Fig 1: Shift Lock, Electronically Controlled Transmission And A/T Indicator Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

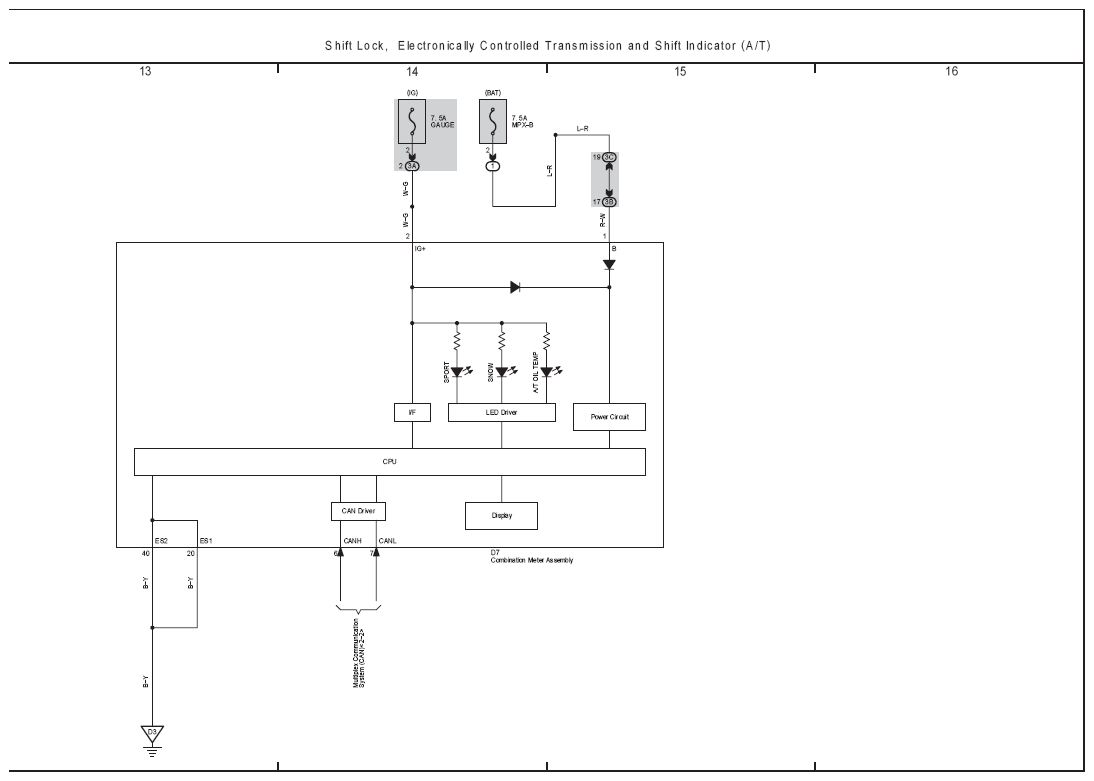

Fig 2: Shift Lock, Electronically Controlled Transmission And A/T Indicator Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

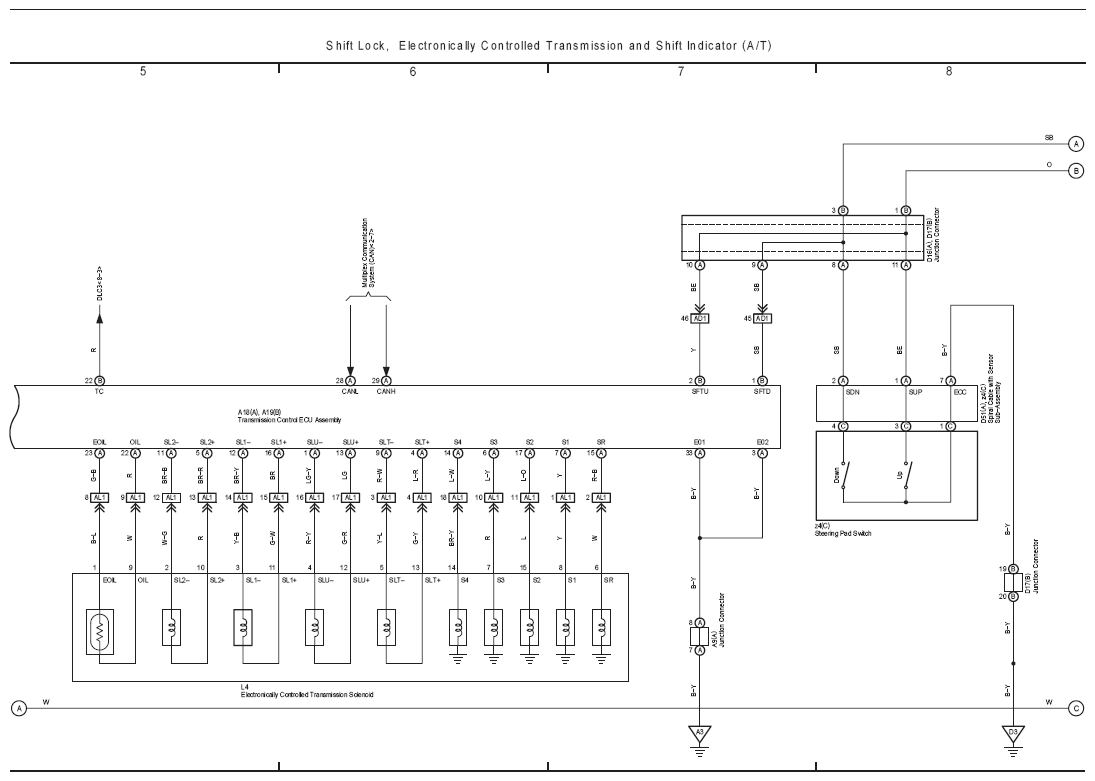

Fig 3: Shift Lock, Electronically Controlled Transmission And A/T Indicator Wiring Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

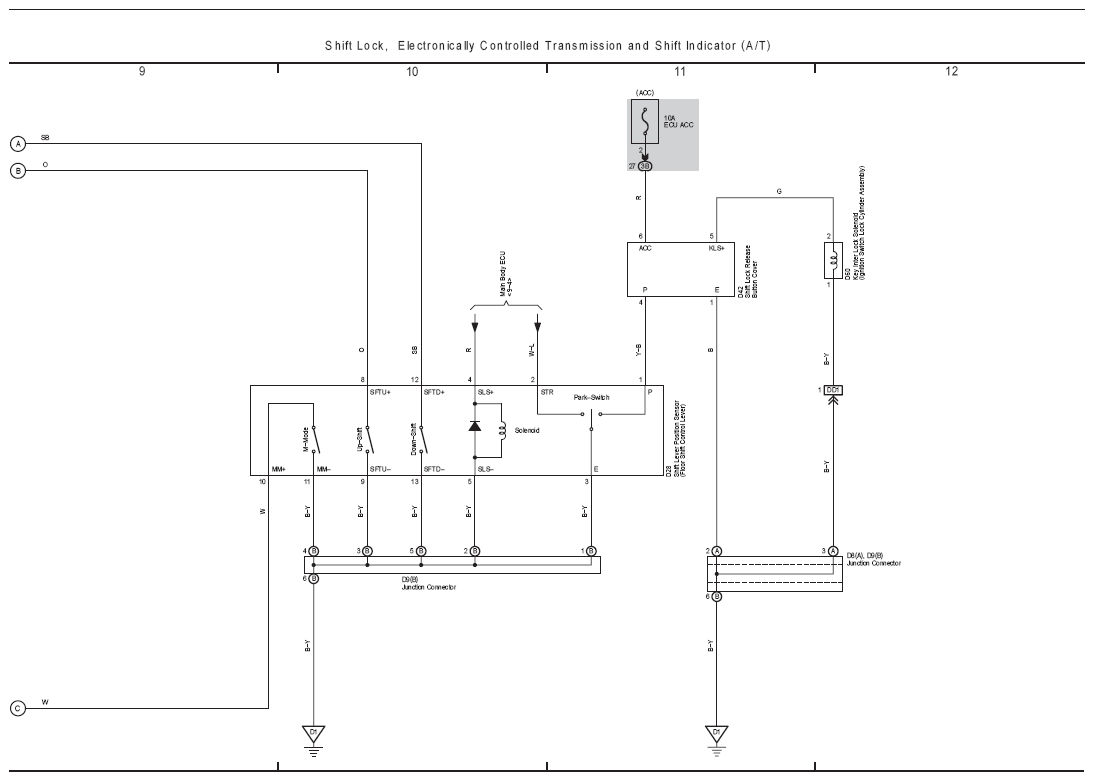

Fig 4: Shift Lock, Electronically Controlled Transmission And A/T Indicator Wiring Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
