Multiplex Communication System (CAN)

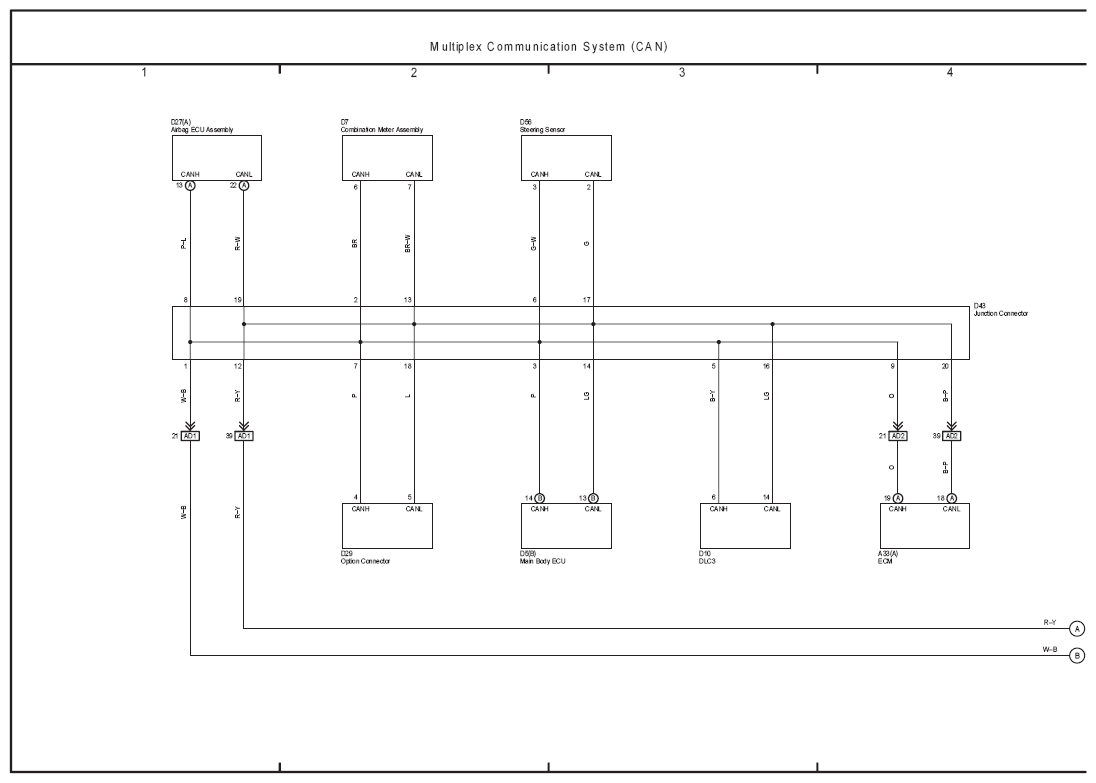

Fig 1: Multiplex Communication System (CAN) Wiring Diagram (1 Of 2)
G08774497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Multiplex Communication System (CAN) Wiring Diagram (2 Of 2)
G08774498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
