Overall Electrical Wiring Diagram: Ignition

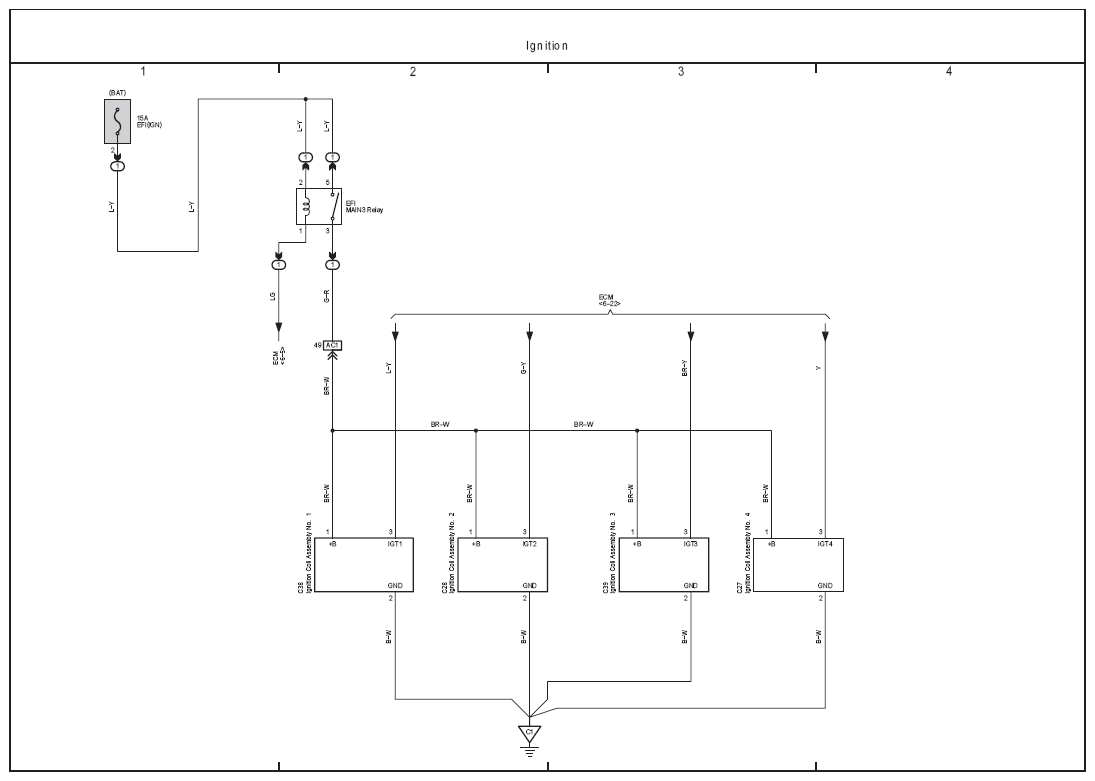

Fig 1: Ignition Wiring Diagram

G08774501

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
