OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
How To Read This Service Information
How To Read This Service Information

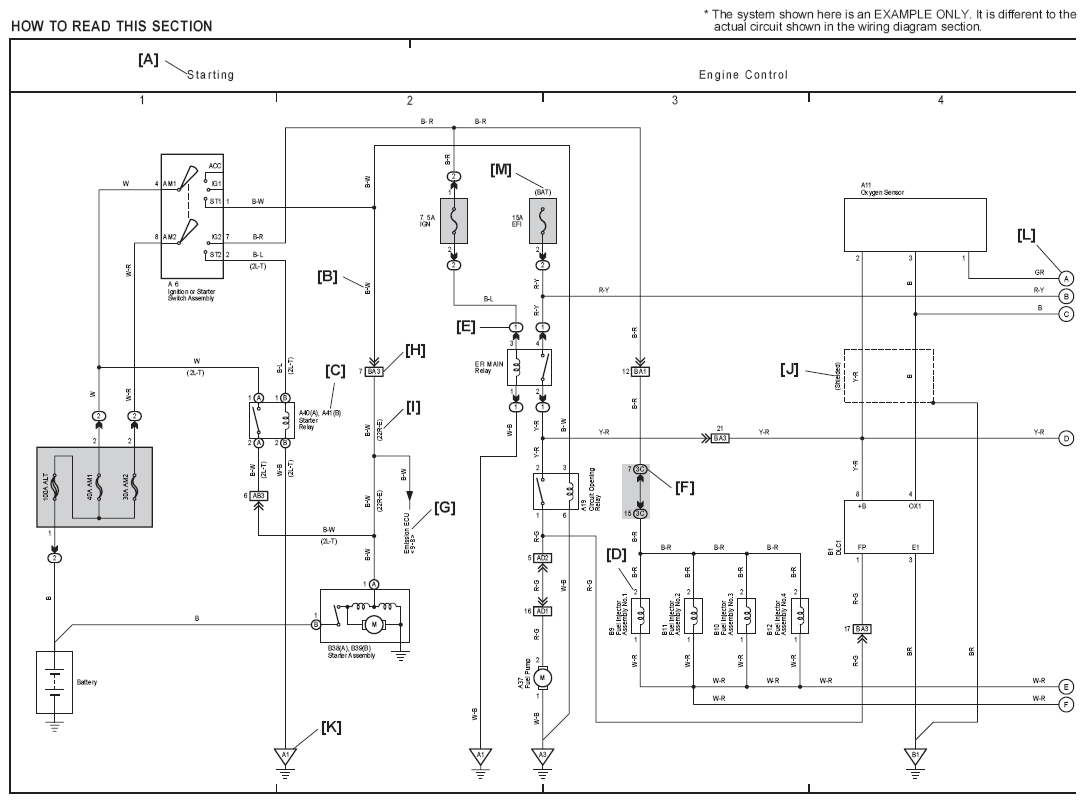

Fig 1: Electrical Wiring Diagram Example
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

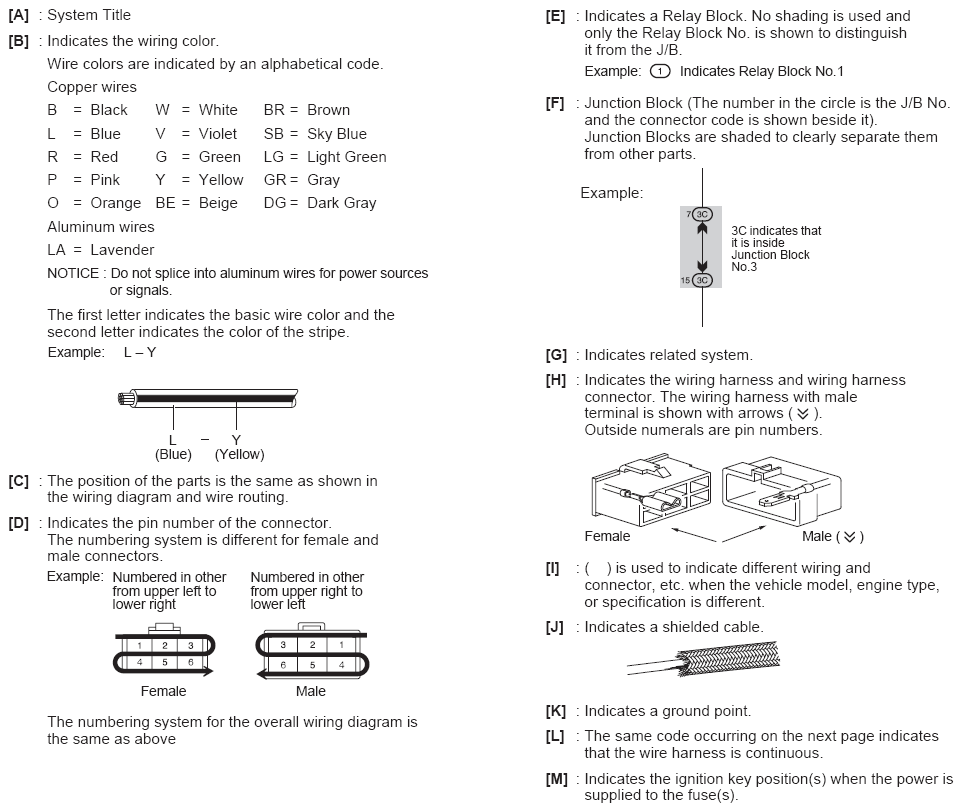

Fig 2: Electrical Wiring Diagram Example Legends
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
