Horn, Power Outlet

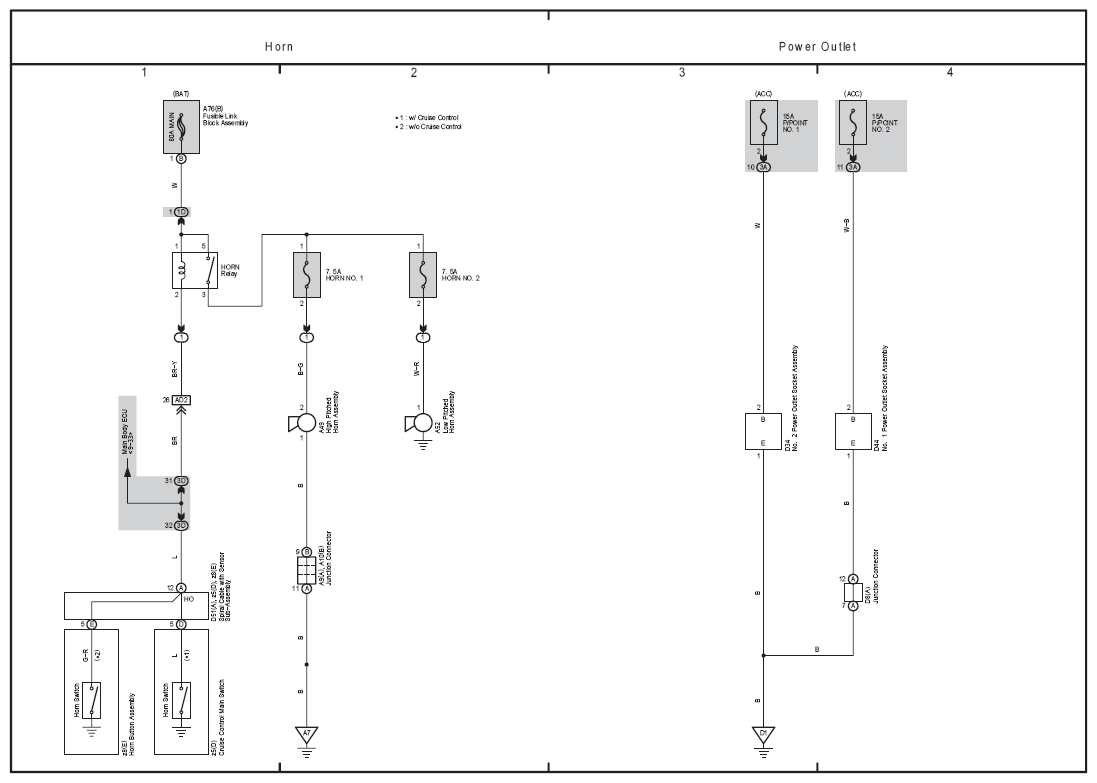

Fig 1: Horn And Power Outlet Wiring Diagram

G08774546

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
