Front Wiper And Washer

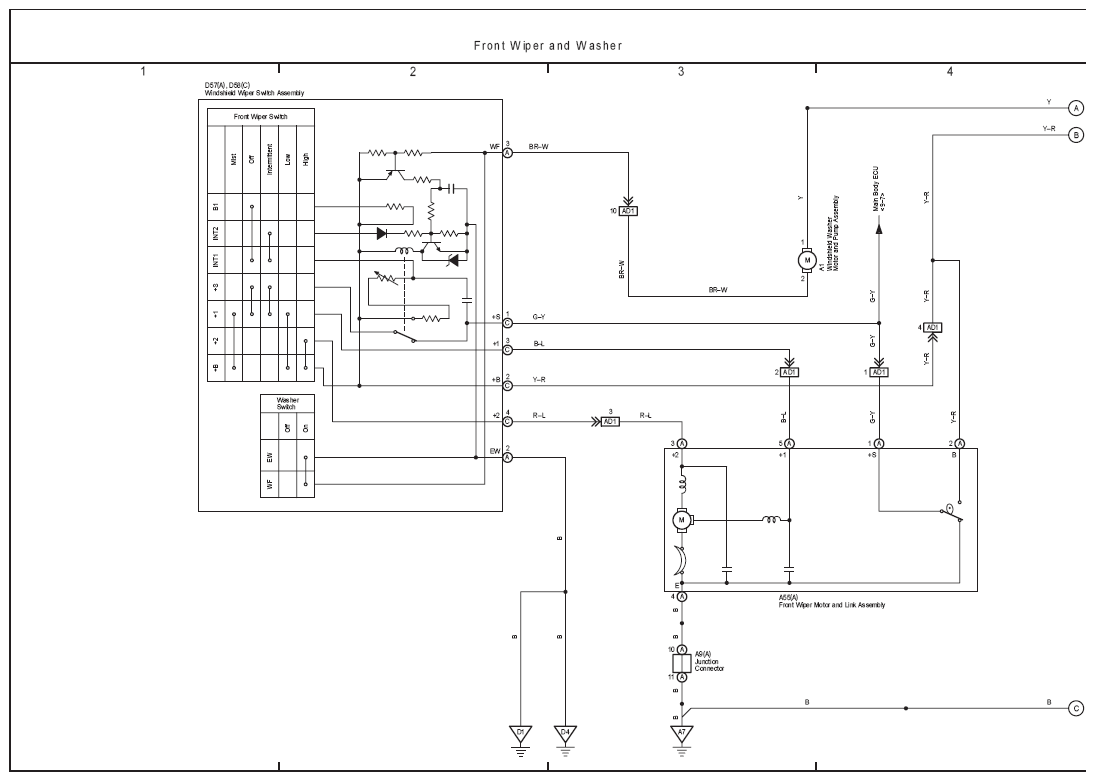

Fig 1: Front Wiper And Washer Wiring Diagram (1 Of 2)
G08774544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Front Wiper And Washer Wiring Diagram (2 Of 2)
G08774545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
