Overall Electrical Wiring Diagram: EPS

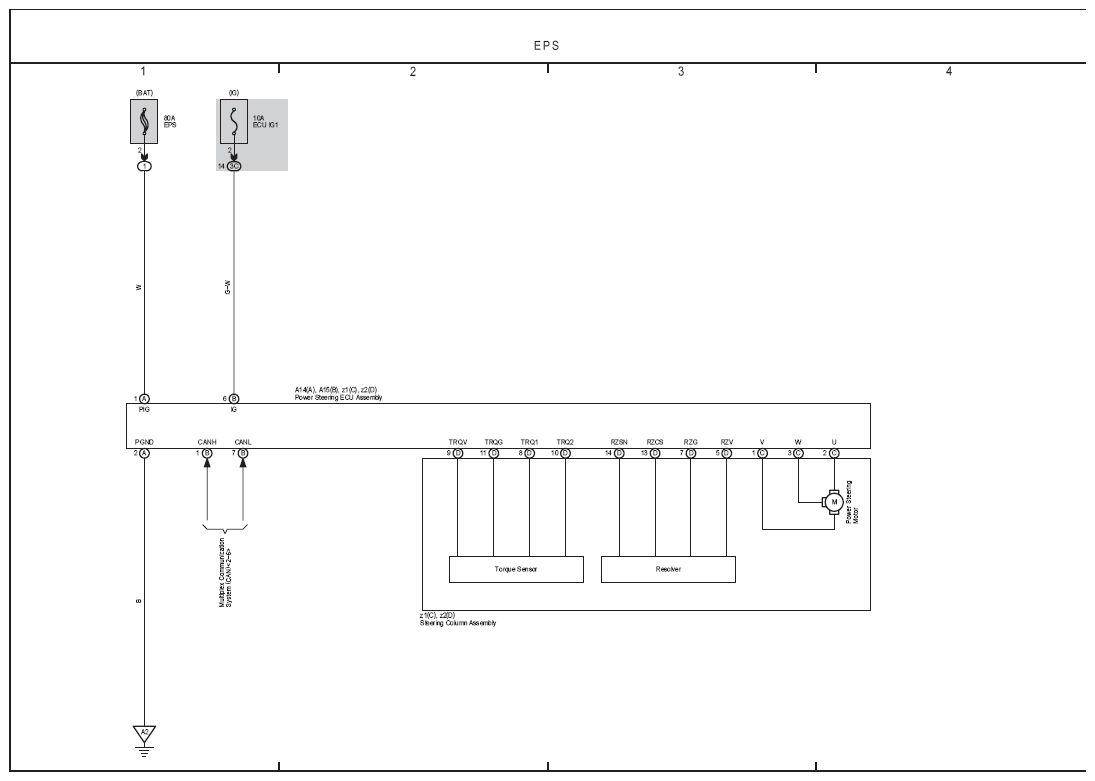

Fig 1: EPS Wiring Diagram (1 Of 2)
G08774541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

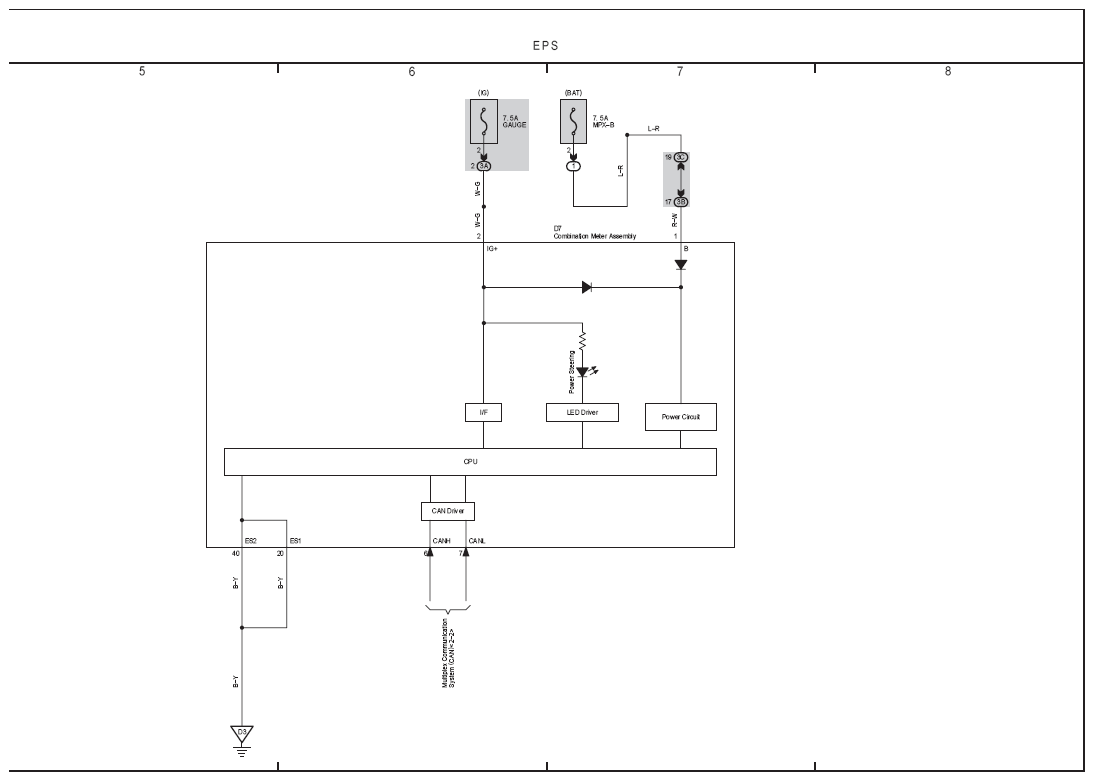

Fig 2: EPS Wiring Diagram (2 Of 2)
G08774542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
