Door Lock Control, Engine Immobilizer System, Headlight, Illumination, Interior Light, Key Reminder, Light Reminder, Luggage Compartment Door Opener, Taillight, Tire Pressure Warning System, Wireless Door Lock Control

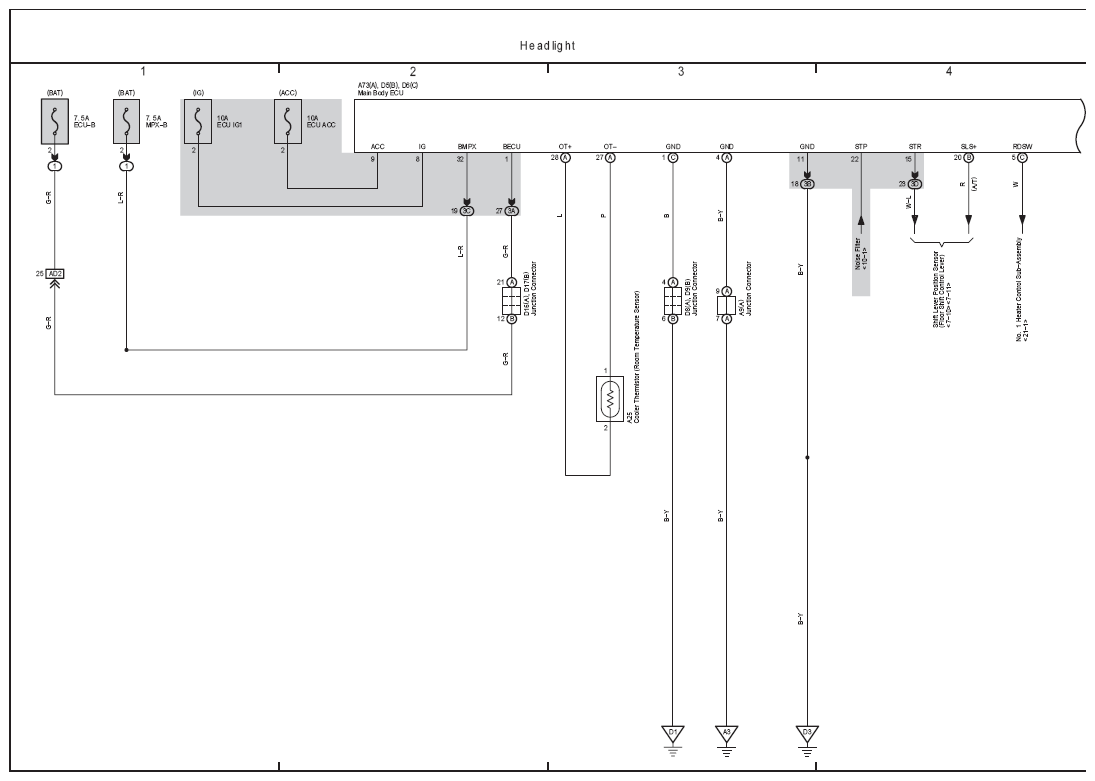

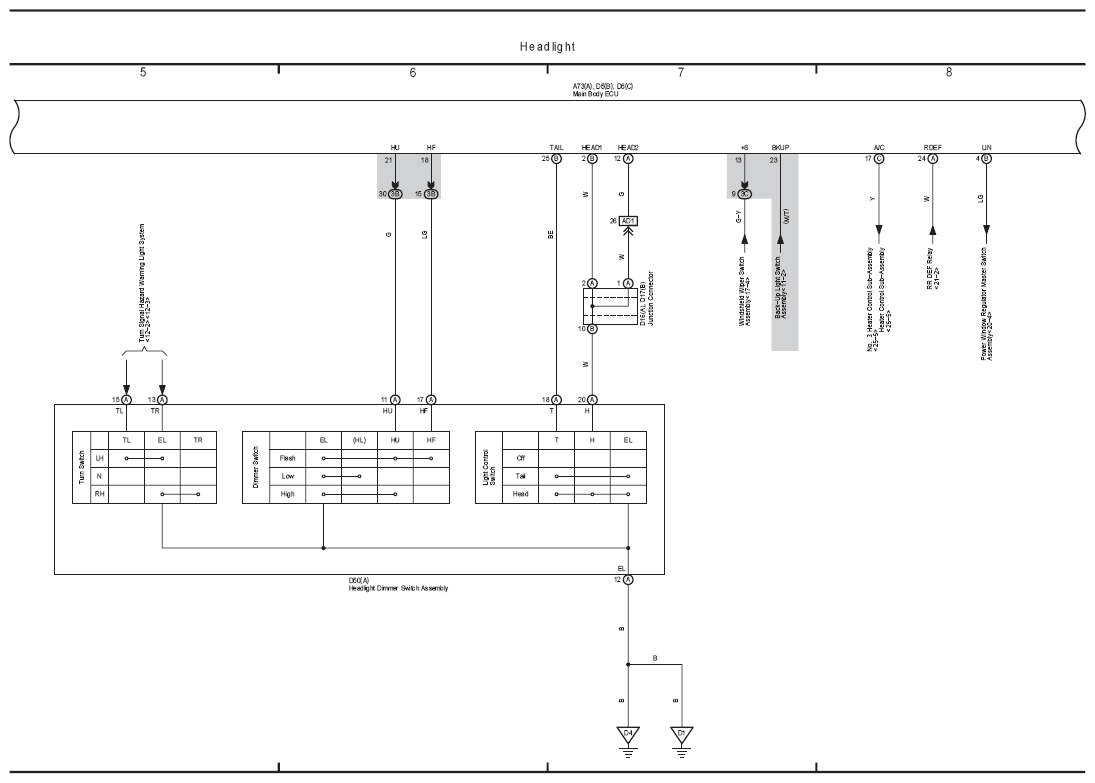

Fig 1: Headlight Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Headlight Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

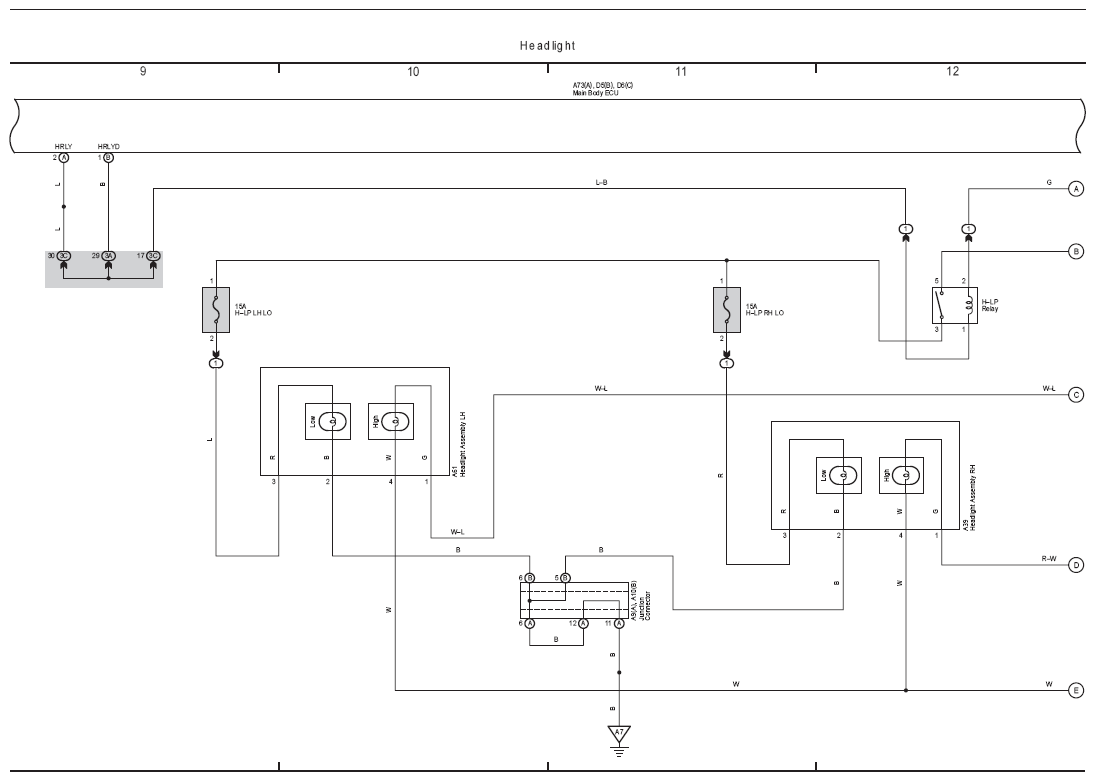

Fig 3: Headlight Wiring Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

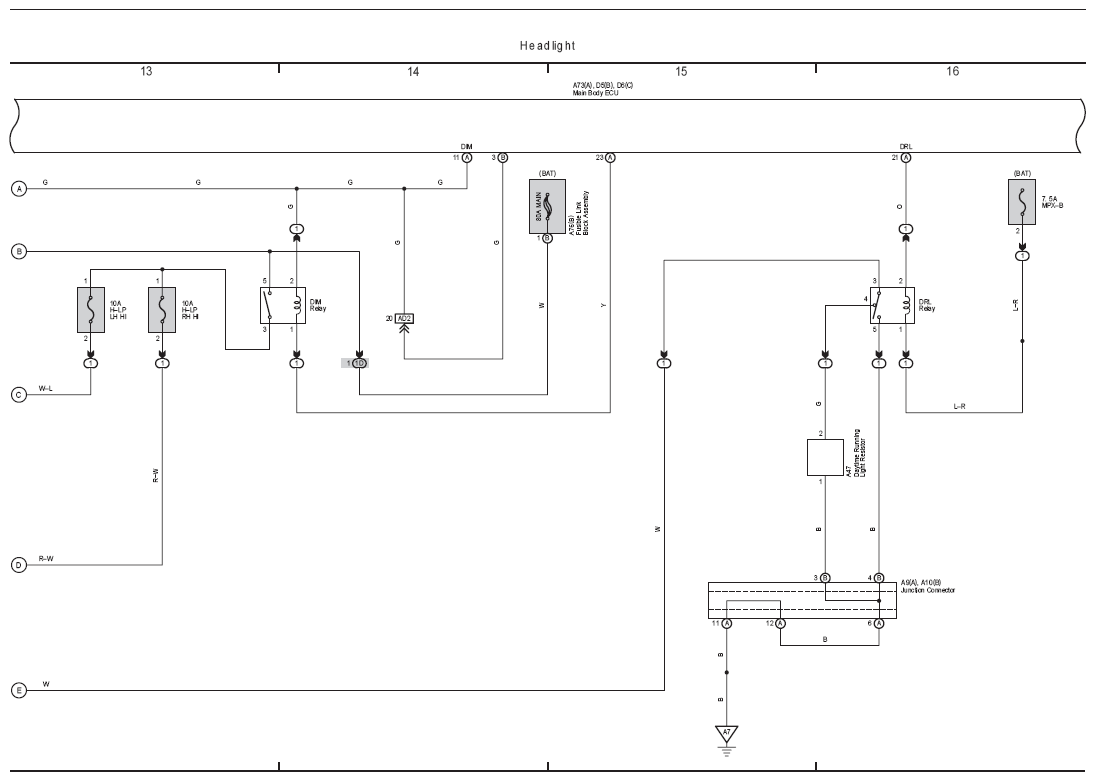

Fig 4: Headlight Wiring Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

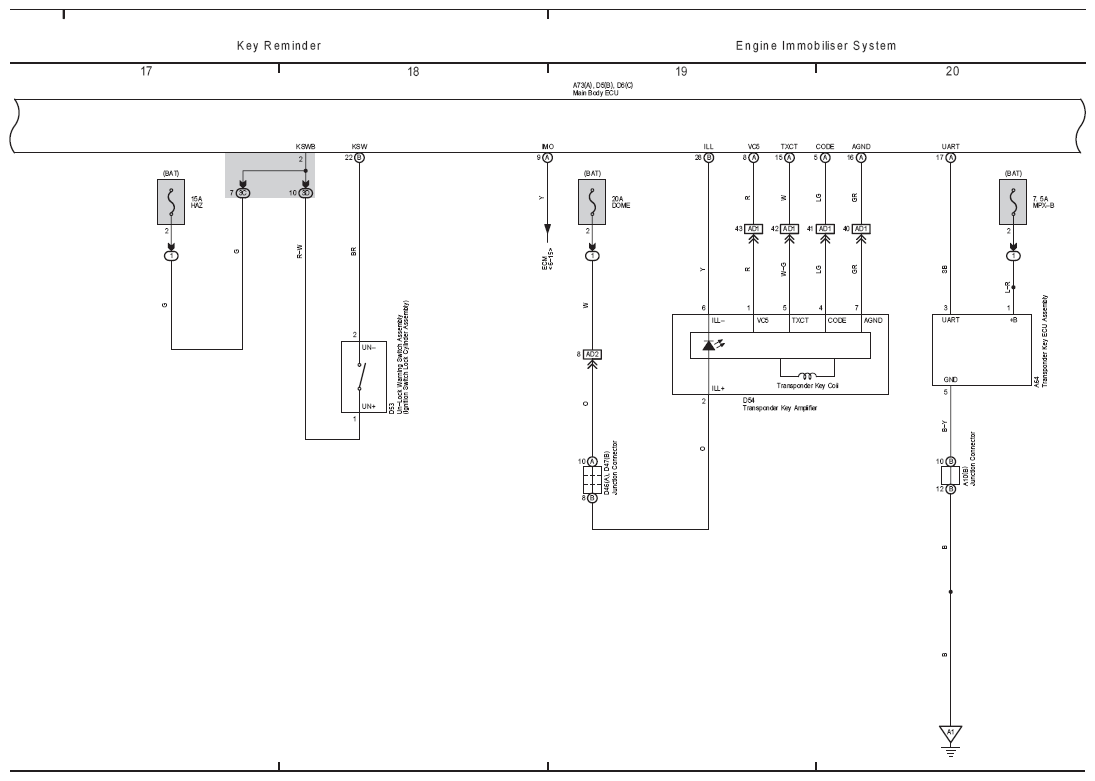

Fig 5: Key Reminder And Engine Immobilizer System Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

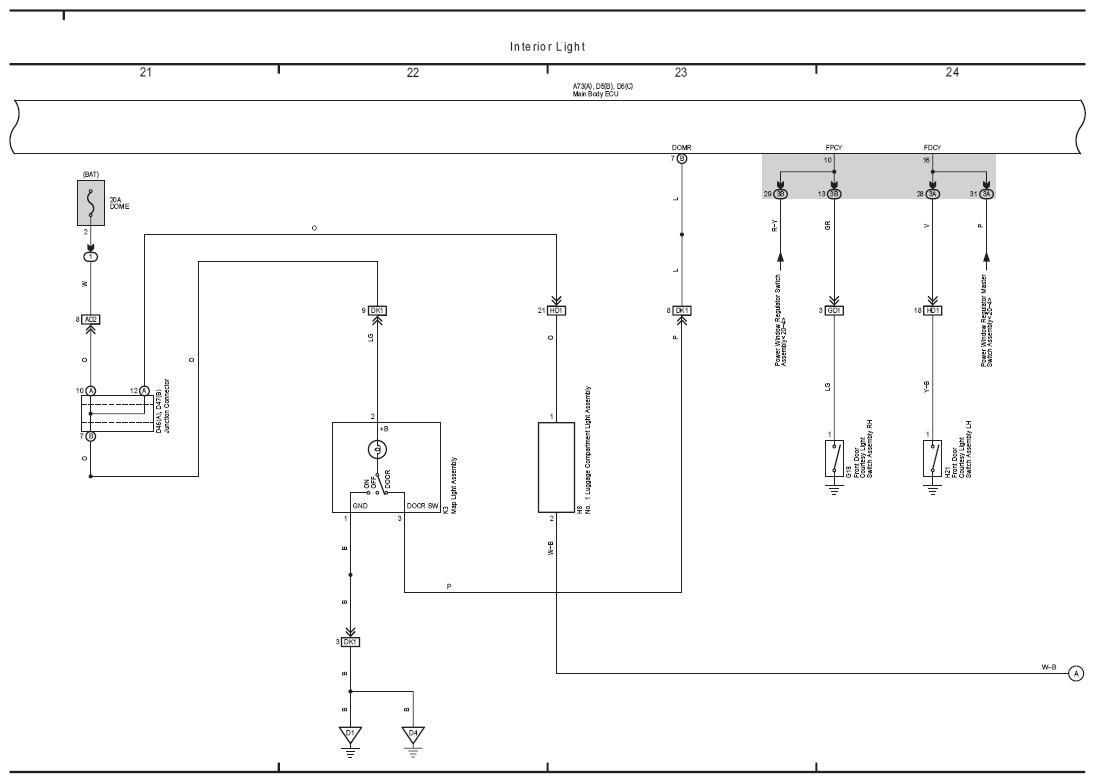

Fig 6: Interior Light Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

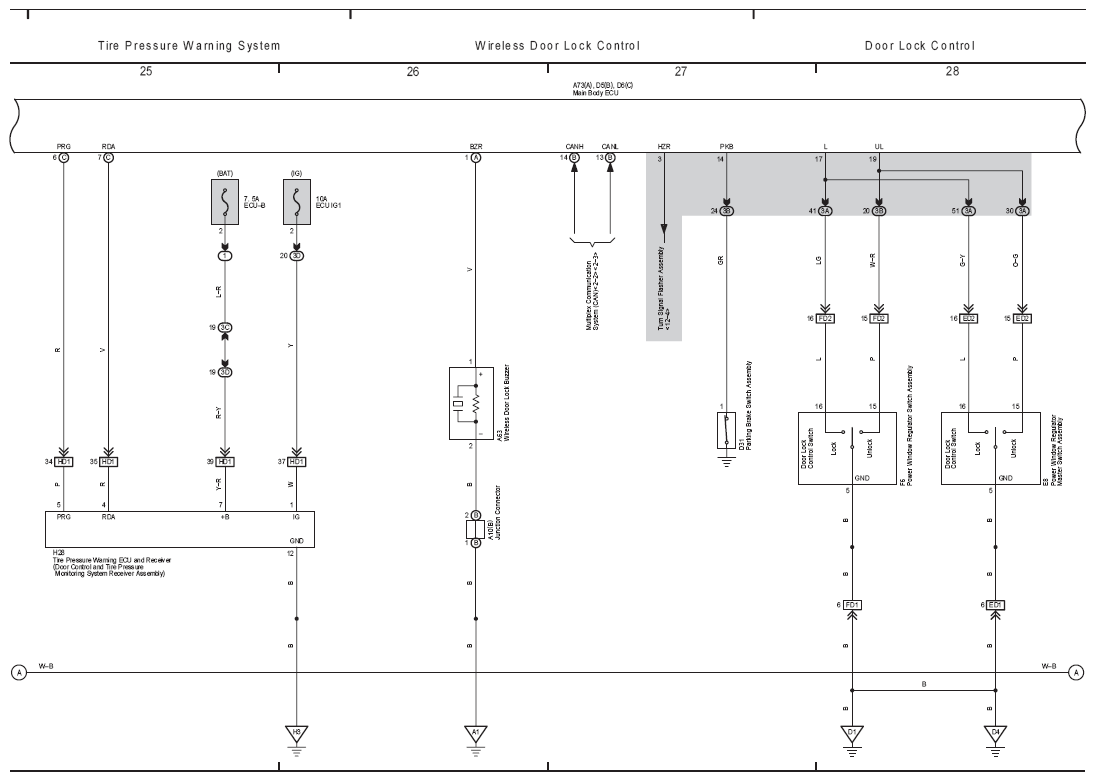

Fig 7: Tire Pressure Warning System, Wireless Door Lock Control And Door Lock Control Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

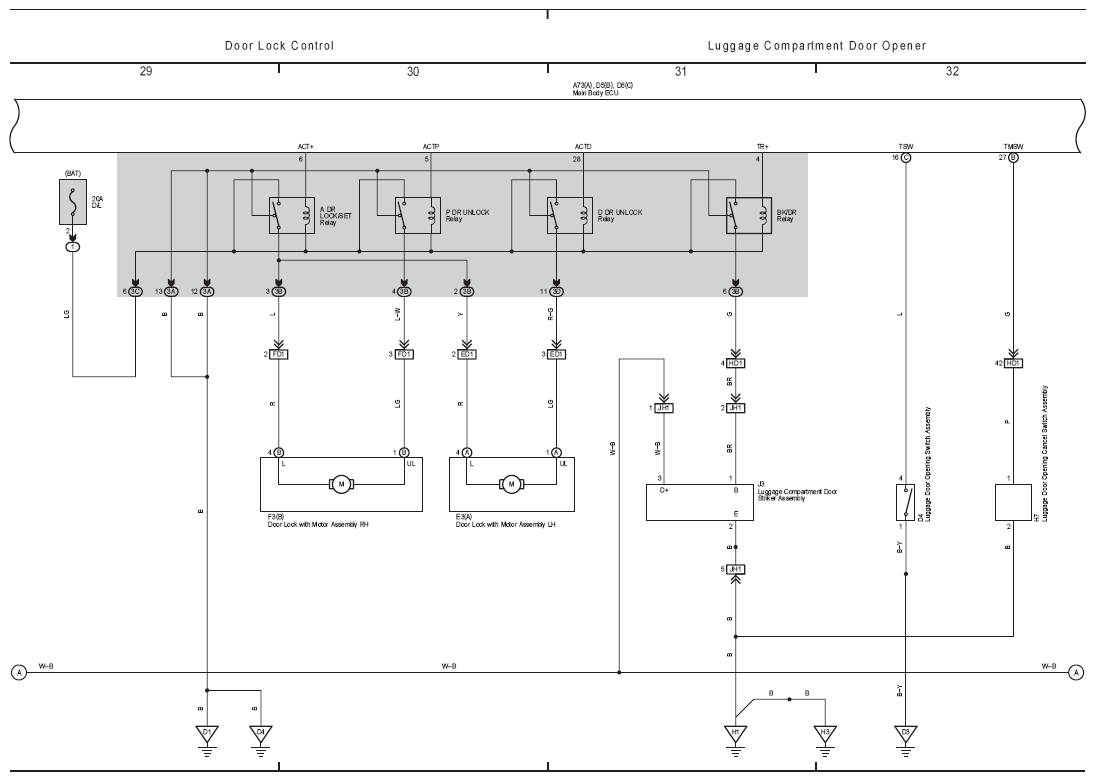

Fig 8: Door Lock Control And Luggage Compartment Door Opener Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

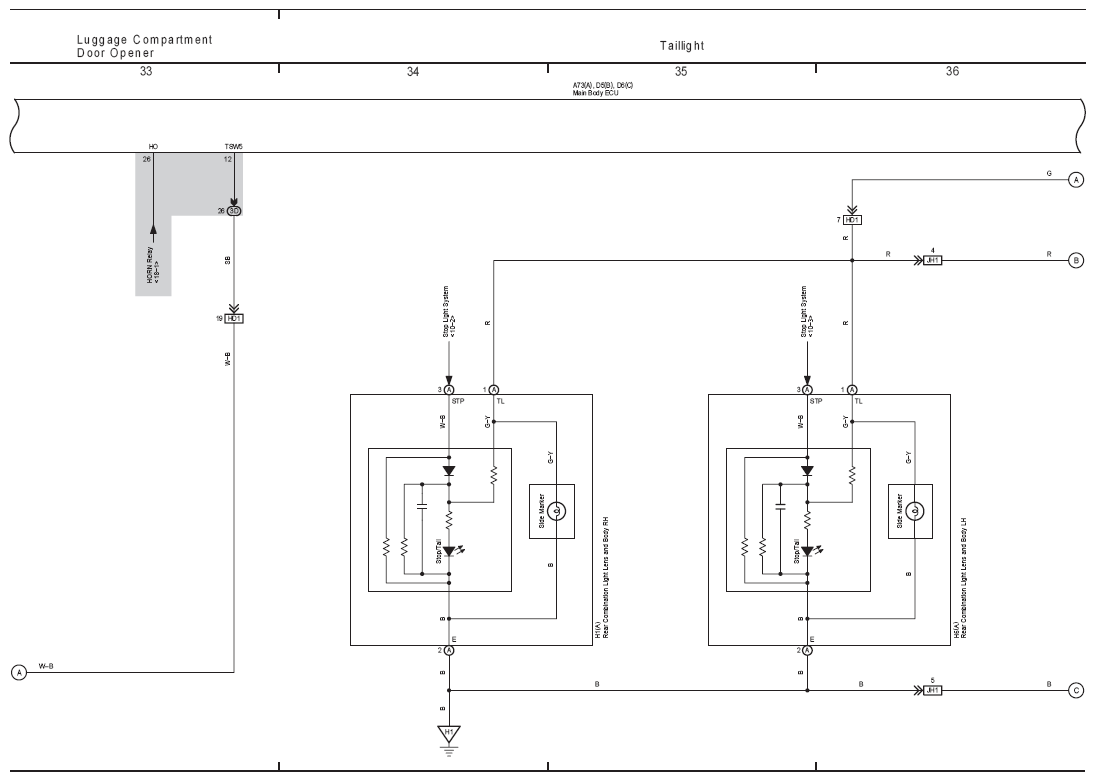

Fig 9: Luggage Compartment Door Opener And Taillight Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

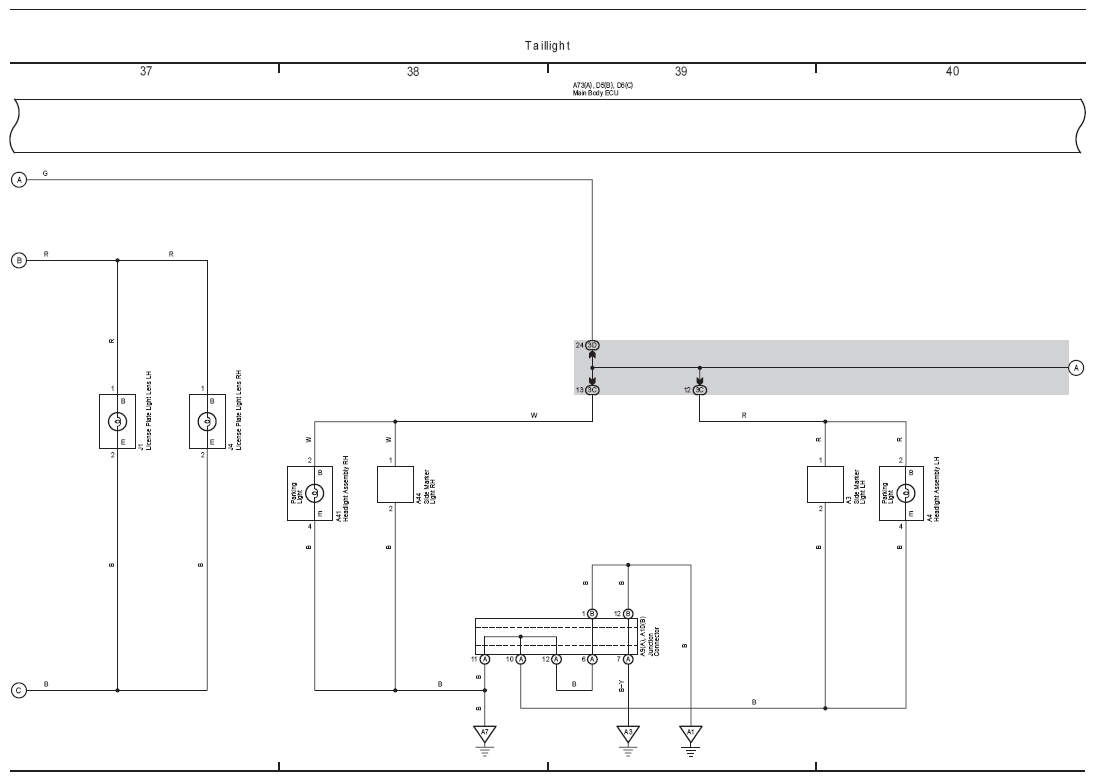

Fig 10: Taillight Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

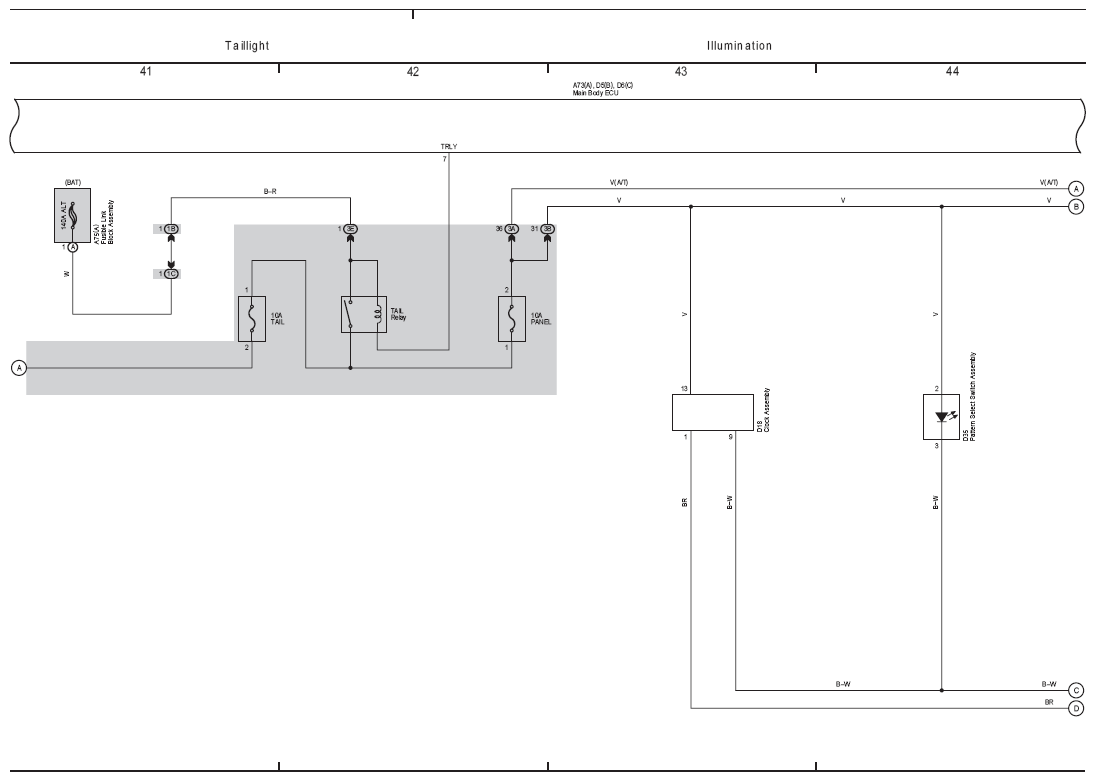

Fig 11: Illumination And Taillight Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

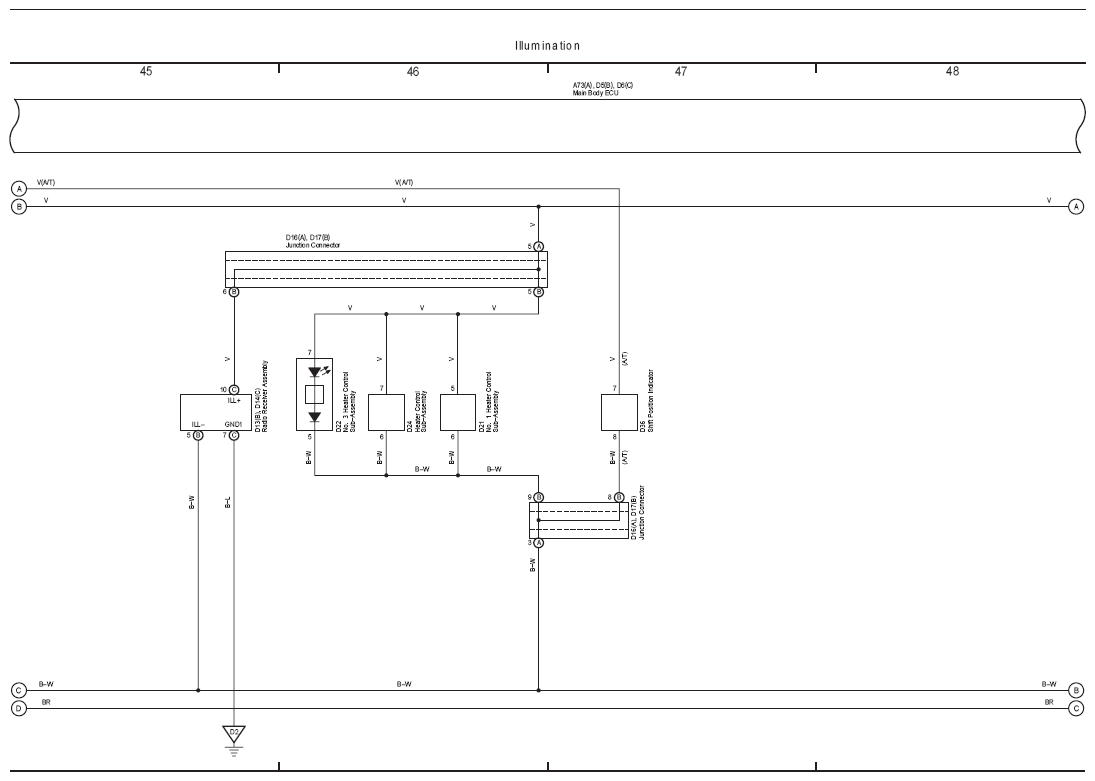

Fig 12: Illumination Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

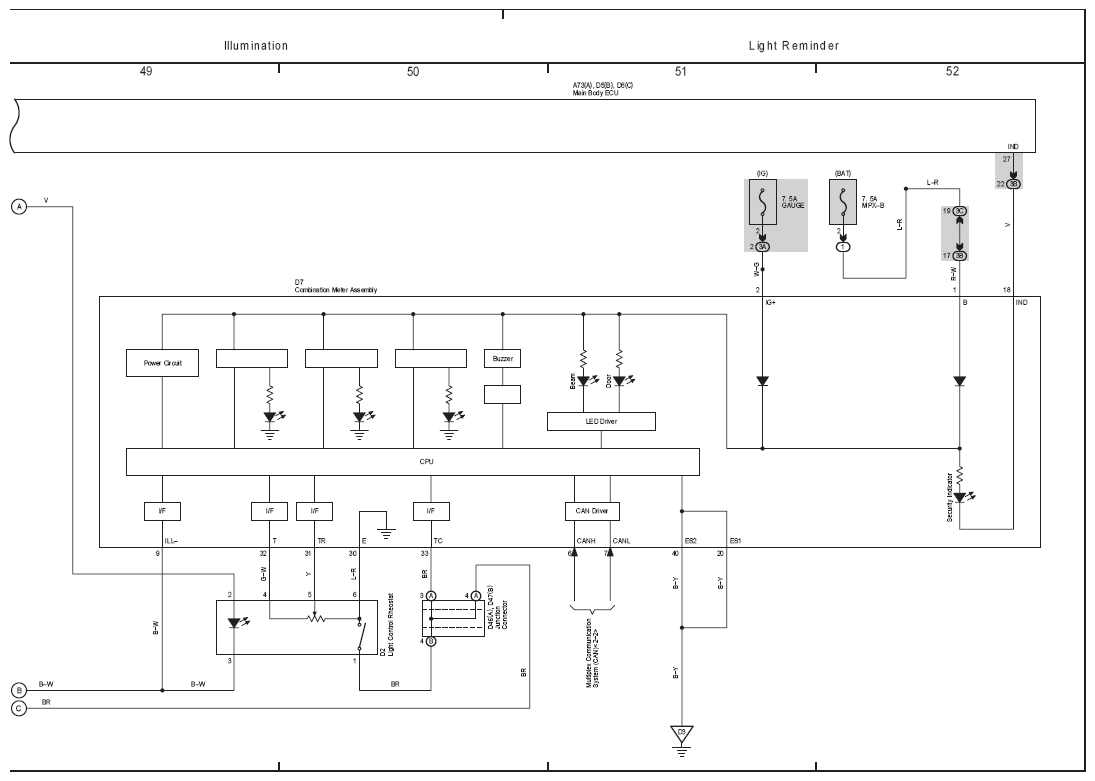

Fig 13: Illumination And Light Reminder Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
