Combination Meter

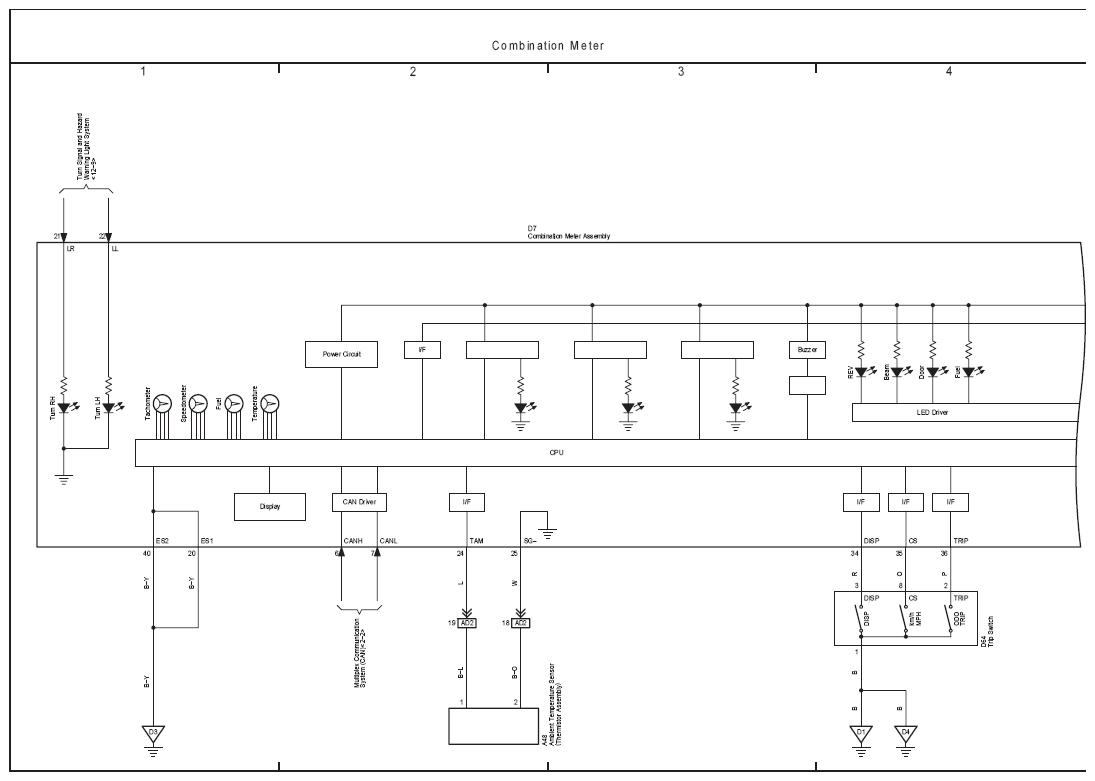

Fig 1: Combination Meter Wiring Diagram (1 Of 3)
G08774553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

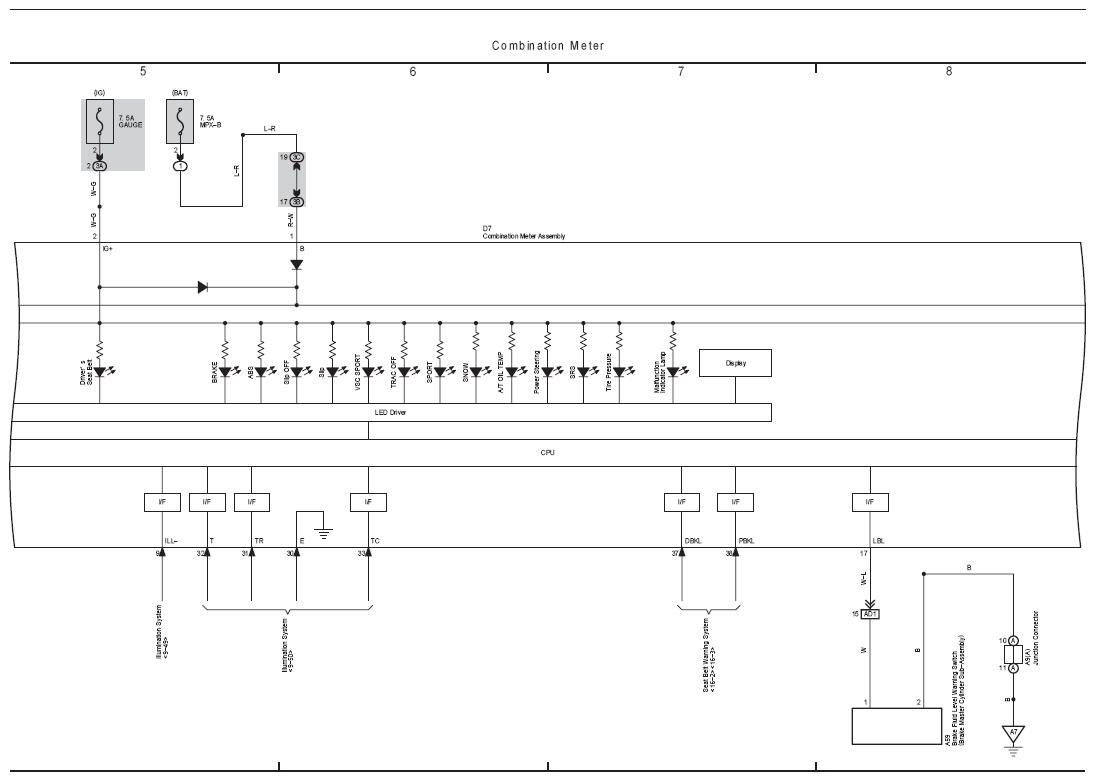

Fig 2: Combination Meter Wiring Diagram (2 Of 3)
G08774554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

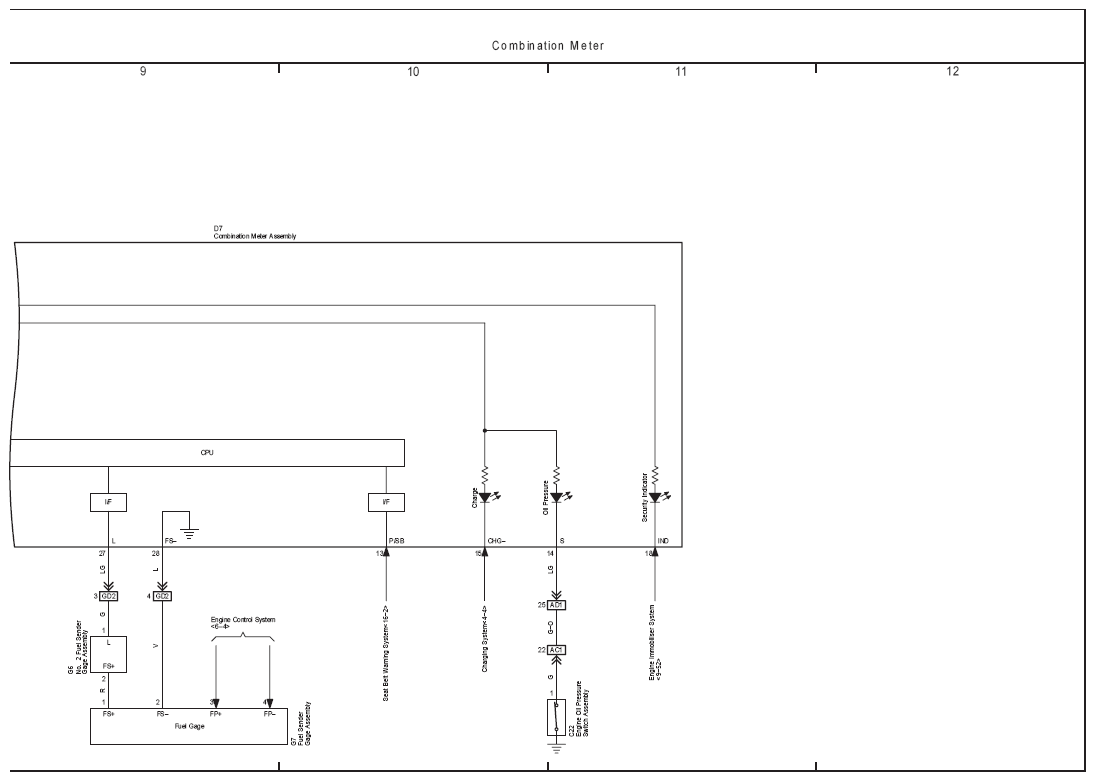

Fig 3: Combination Meter Wiring Diagram (3 Of 3)
G08774555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
