Overall Electrical Wiring Diagram: Charging

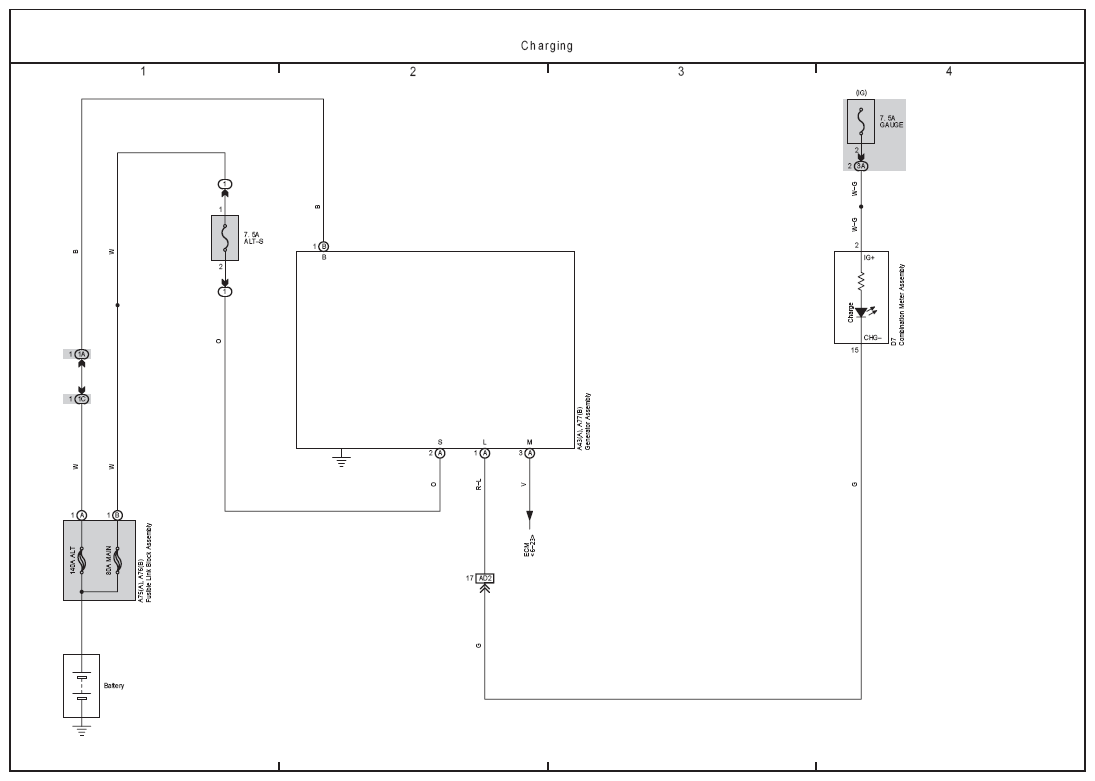

Fig 1: Charging Wiring Diagram

G08774500

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
