Air Conditioning

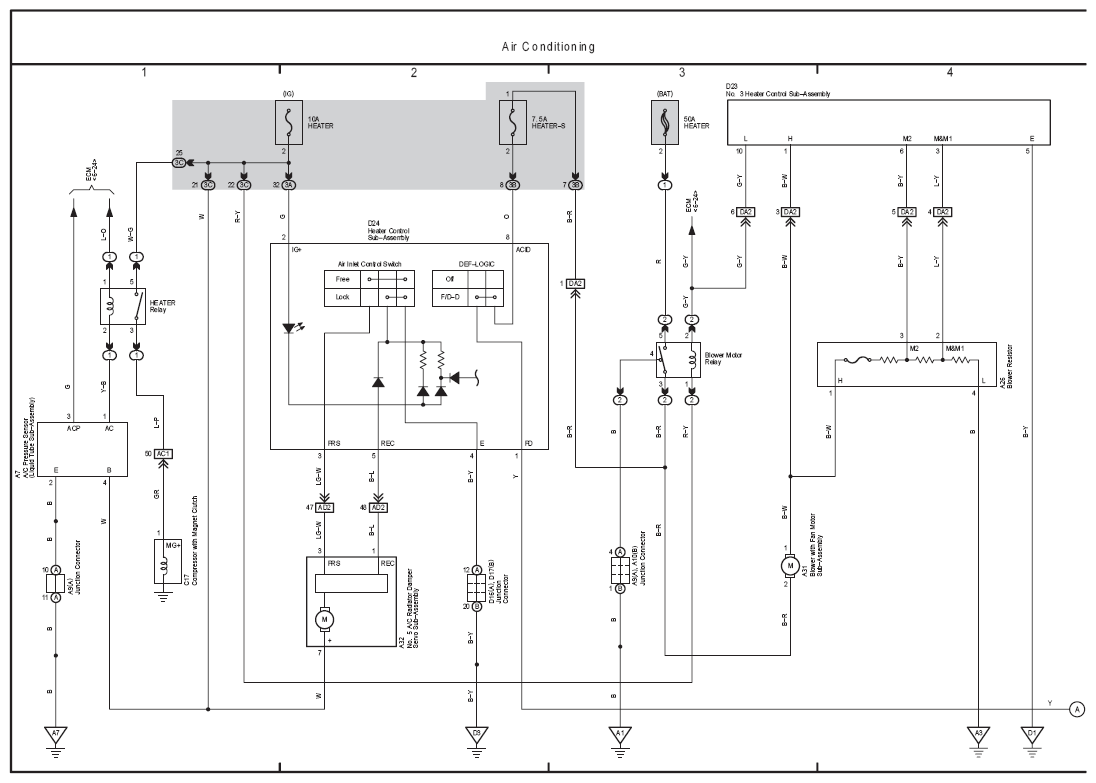

Fig 1: Air Conditioning Wiring Diagram (1 Of 2)
G08774557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Air Conditioning Wiring Diagram (2 Of 2)
G08774558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
