Position of Parts in Instrument Panel

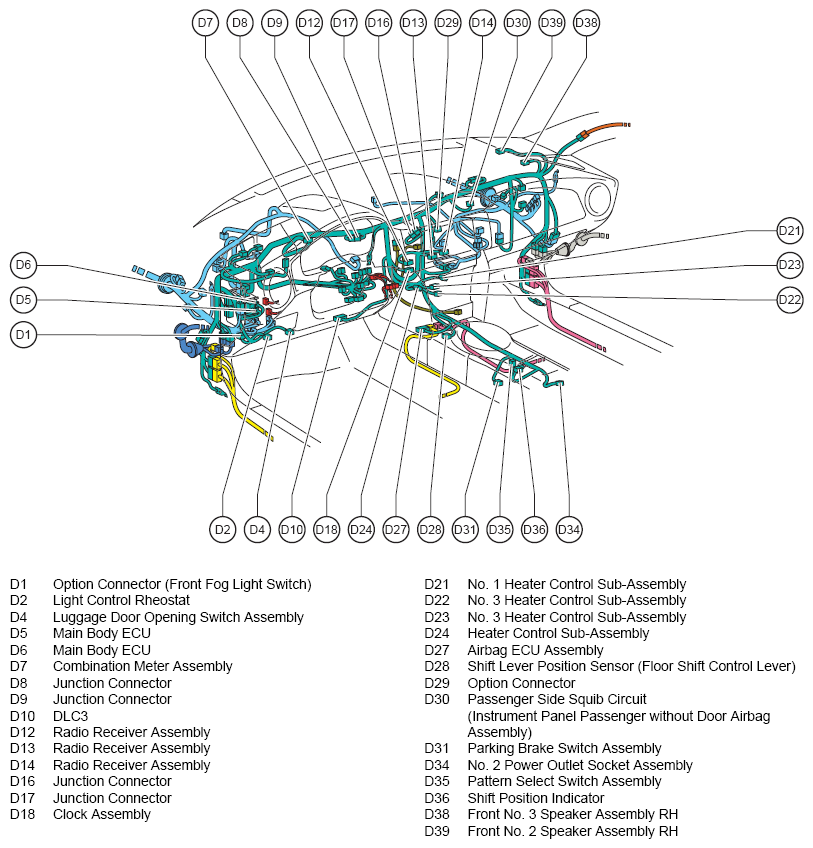

Fig 1: Instrument Panel Parts (1 Of 3)
G08774054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

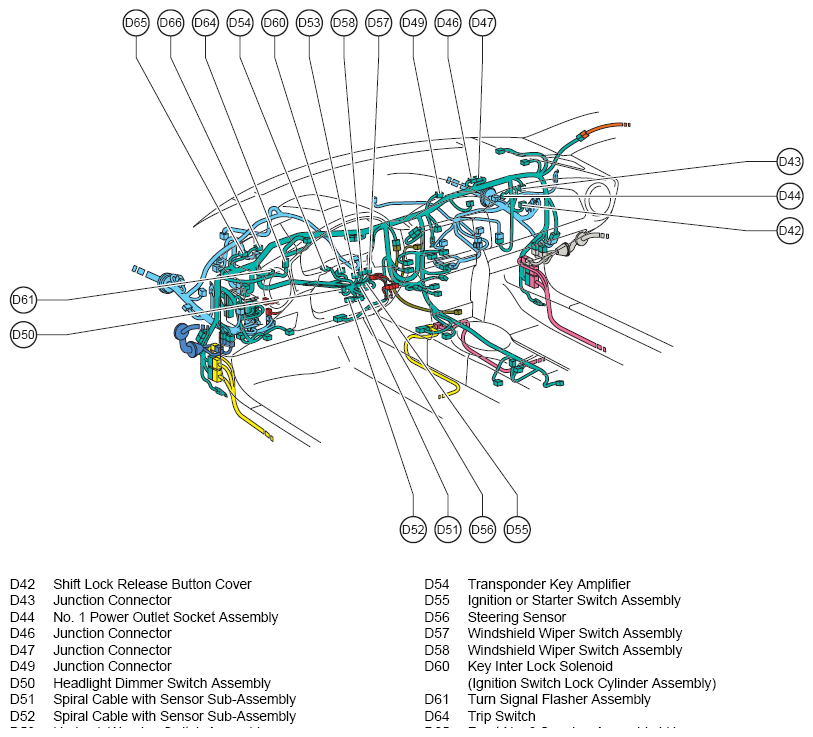

Fig 2: Instrument Panel Parts (2 Of 3)
G08774055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

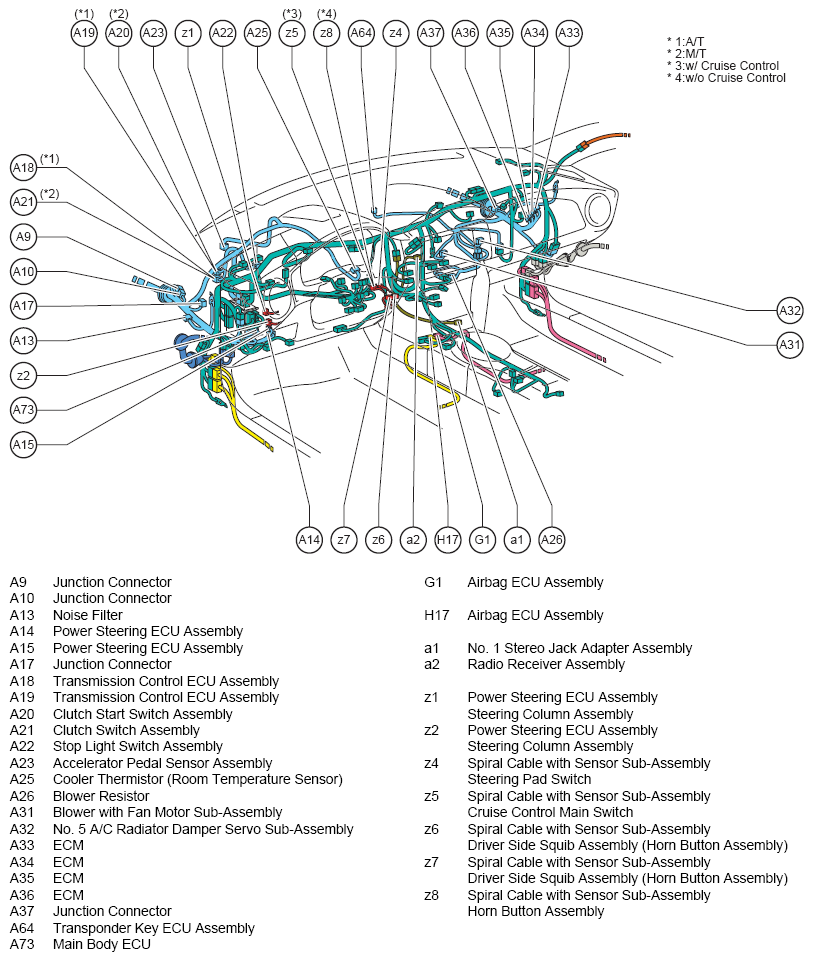

Fig 3: Instrument Panel Parts (3 Of 3)
G08774056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
