Replacement [03/2012 - ]

HINT:

• Use the same procedure for the RH and LH sides.
• The procedure listed below is for the LH side.

1. DRAIN DIFFERENTIAL OIL  See step  2
2. REMOVE REAR DRIVE SHAFT ASSEMBLY LH

   Refer to REMOVAL [03/2012 - ]

3. REMOVE REAR DIFFERENTIAL CARRIER ASSEMBLY

   Refer to REMOVAL [03/2012 - ]

4. REMOVE REAR DIFFERENTIAL CARRIER COVER  See step  2
5. SECURE REAR DIFFERENTIAL CARRIER SUB-ASSEMBLY  See step  4
6. REMOVE REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL
   1. Using SST, remove the rear differential side gear shaft oil seal.
      • SST: 09308-00010
      Fig 1: Rear Differential Side Gear Shaft Oil Seal

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1	Rear Differential Side Gear Shaft Oil Seal

7. INSTALL REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL
   1. Using SST and a hammer, install a new 2 rear differential side gear shaft oil seals.
      • SST: 09213-70011
      • SST: 09950-60010
      • SST: 09950-70010
        1. 09951-00410
        2. 09951-00620
        3. 09951-07100
        4. 09952-06010

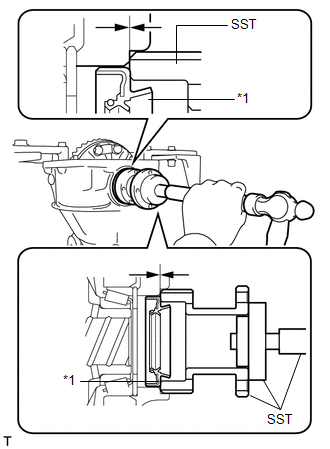

      Fig 2: New 2 Rear Differential Side Gear Shaft Oil Seals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1	Rear Differential Side Gear Shaft Oil Seal

      Oil seal depth

      -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

      NOTE:

      • To ensure a proper seal, evenly tap in the rear differential side gear shaft oil seal.
      • When installing the oil seal, tap it in until its surface is flush with the rear differential carrier.
8. INSTALL REAR DIFFERENTIAL CARRIER SUB-ASSEMBLY  See step  5
9. INSTALL REAR DIFFERENTIAL CARRIER COVER  See step  33
10. INSTALL REAR DIFFERENTIAL CARRIER ASSEMBLY

    Refer to INSTALLATION [03/2012 - ]

11. INSTALL REAR DRIVE SHAFT ASSEMBLY

    Refer to INSTALLATION [03/2012 - ]

12. ADD DIFFERENTIAL OIL  See step  2
