Removal [03/2012 - ]

Refer to REMOVAL [03/2012 - ]

Refer to REMOVAL [03/2012 - ]

1. Using SST, remove the rear No. 1 differential mount cushion.
   • SST: 09570-18021
     1. 09571-01091
     2. 09571-01101
     3. 09571-01111

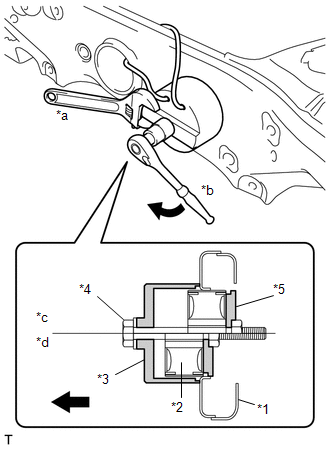

   Fig 1: Remove The Rear No. 1 Differential Mount Cushionremove The Rear No. 1 Differential Mount Cushion

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • Make sure that SST does not come into contact with the cylindrical part of the rear suspension member and is not set at an angle.
   • Make sure that SST does not run on the weld bead around the cylindrical part.
   • Make sure to tie the string of SST to the rear suspension member to prevent SST from dropping.
   • Apply a light coat of molybdenum grease to the SST bolt.
   • Equally tighten the upper side bolt and lower side bolt.
   TEXT IN ILLUSTRATION



   *1	Rear Suspension Member
   *2	Rear No. 1 Differential Mount Cushion
   *3	SST(09571-01111)
   *4	SST(09571-01091)
   *5	SST(09571-01101)
   *a	Hold
   *b	Turn
   *c	Start
   *d	End
   	Back side

• SST: 09570-18011
  1. 09571-01011
  2. 09571-01021
  3. 09571-01091

1. Using SST, remove the rear No. 2 differential mount cushion.
   • SST: 09570-18011
     1. 09571-01011
     2. 09571-01021

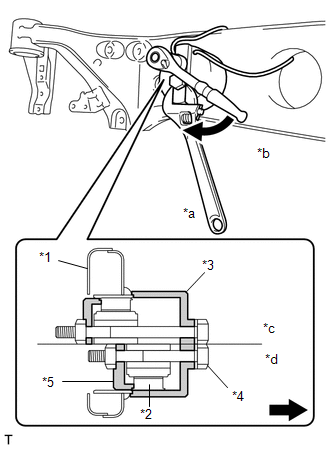

   Fig 2: Remove The Rear No. 2 Differential Mount Cushion

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • Make sure that SST does not come into contact with the cylindrical part of the rear suspension member and is not set at an angle.
   • Make sure that SST does not run on the weld bead around the cylindrical part.
   • Make sure to tie the string of SST to the rear suspension member to prevent SST from dropping.
   • Apply a light coat of molybdenum grease to the bolt.
   TEXT IN ILLUSTRATION



   *1	Rear Suspension Member
   *2	Rear No. 2 Differential Mount Cushion
   *3	SST(09571-01021)
   *4	SST(09571-01091)
   *5	SST(09571-01011)
   *a	Hold
   *b	Turn
   *c	Start
   *d	End
   	Back side
