Components [03/2012 - ]: Illustration

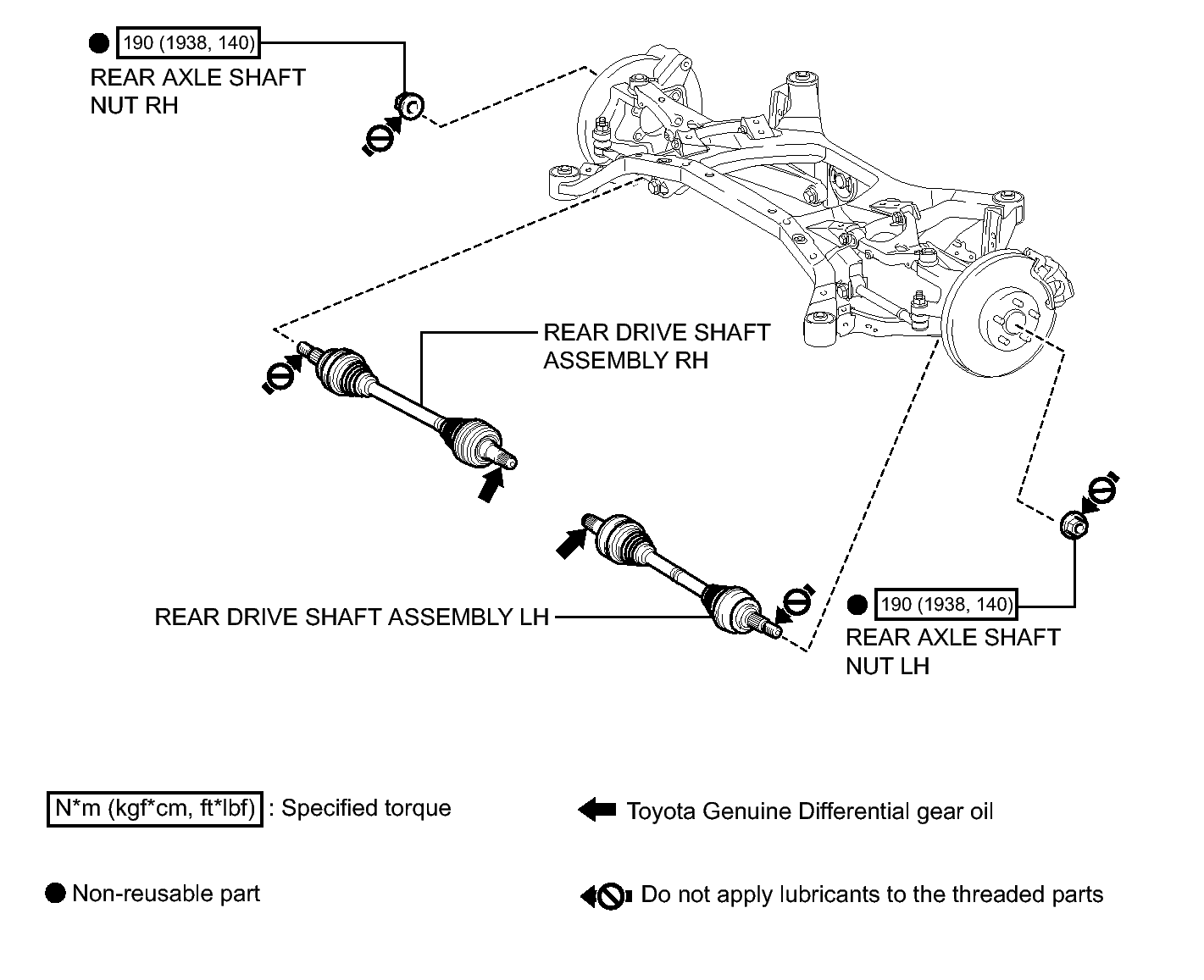

Fig 1: Identifying Rear Drive Shaft Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY386240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

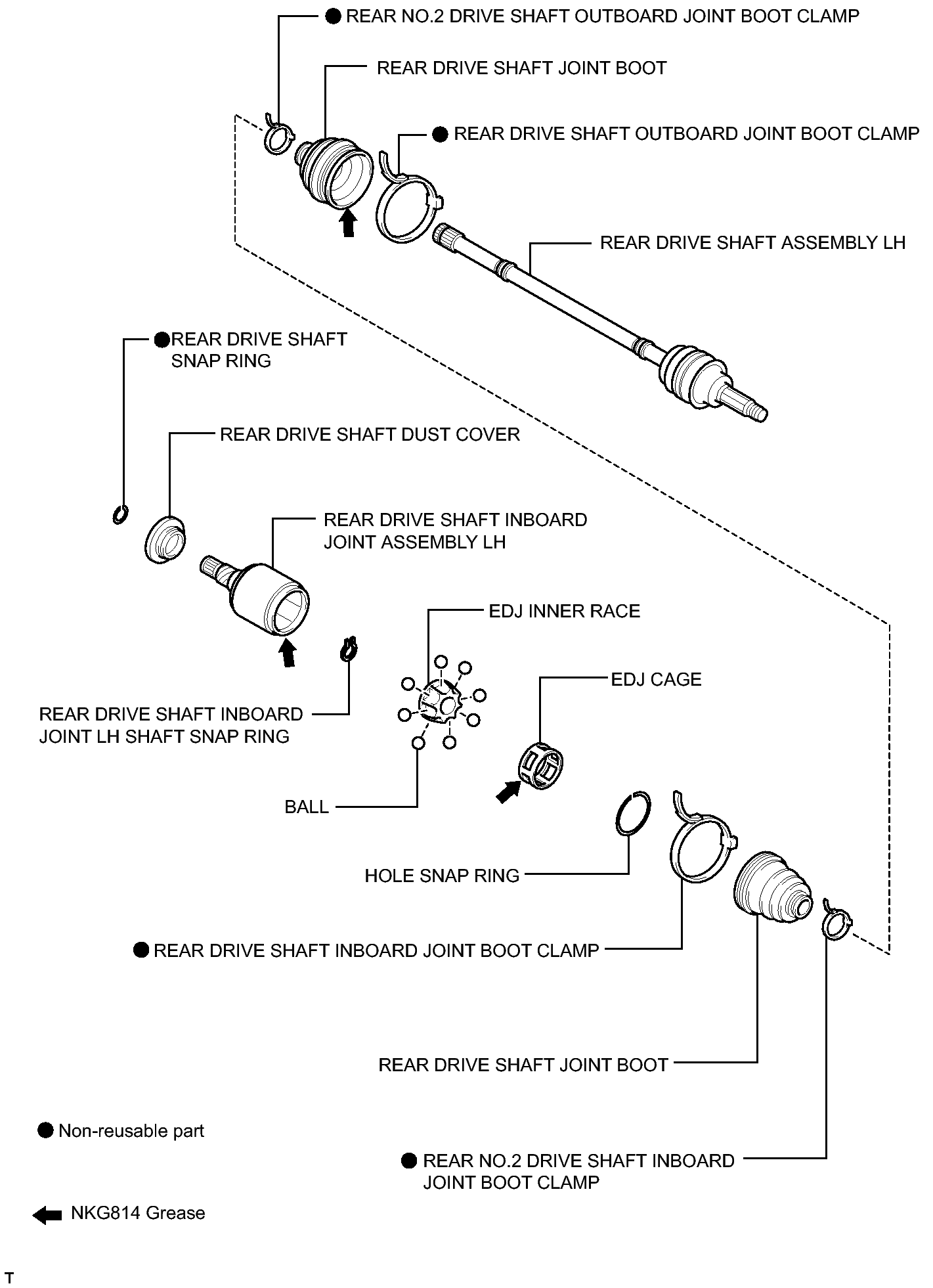

Fig 1: Identifying Rear Drive Shaft Assembly Replacement Components (2 Of 2)
GTY387422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
