Components [03/2012 - ]: Illustration

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specifications (1 Of 2)
GTY390684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

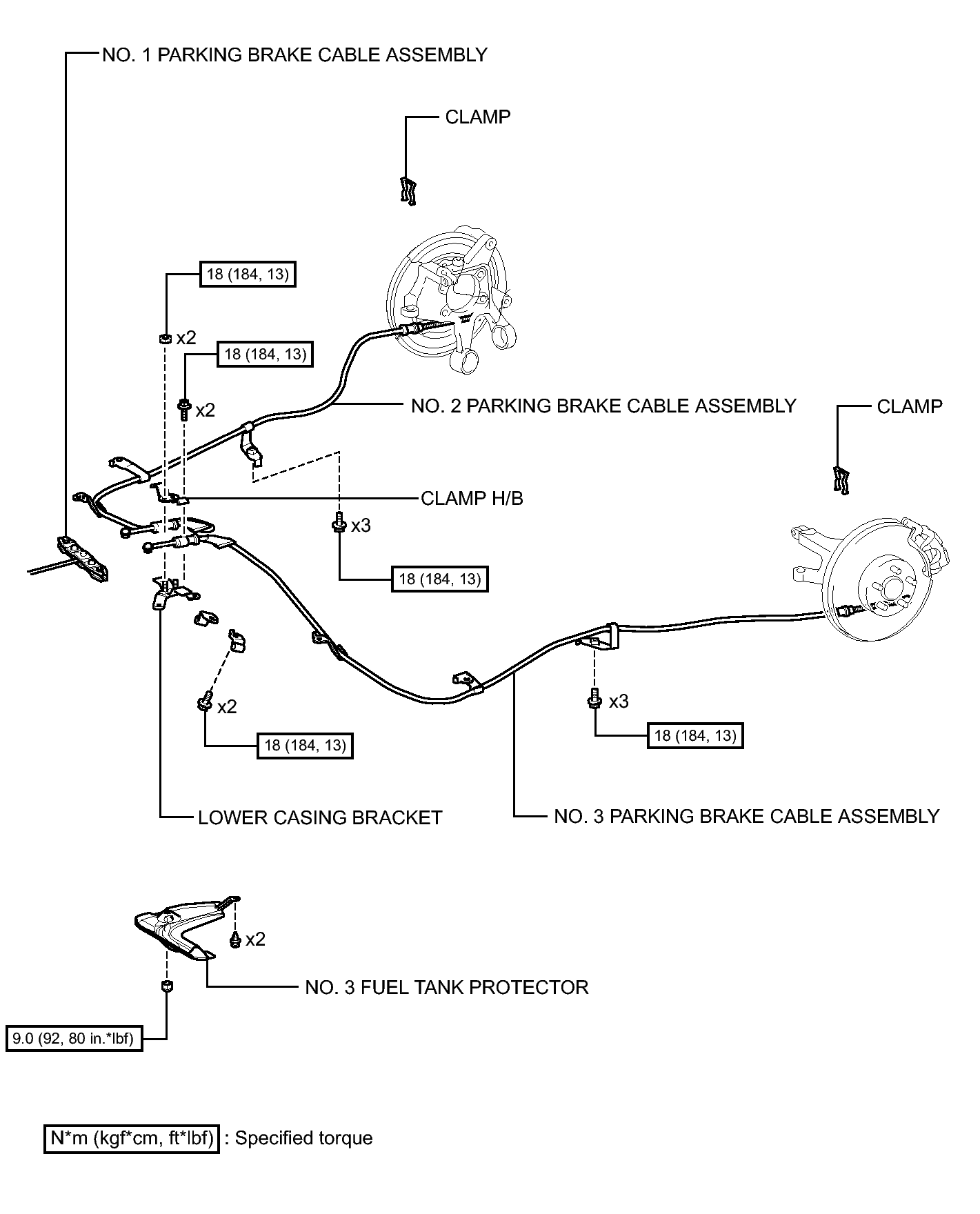

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specifications (2 Of 2)
GTY387512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
