Components [03/2012 - ]: Illustration

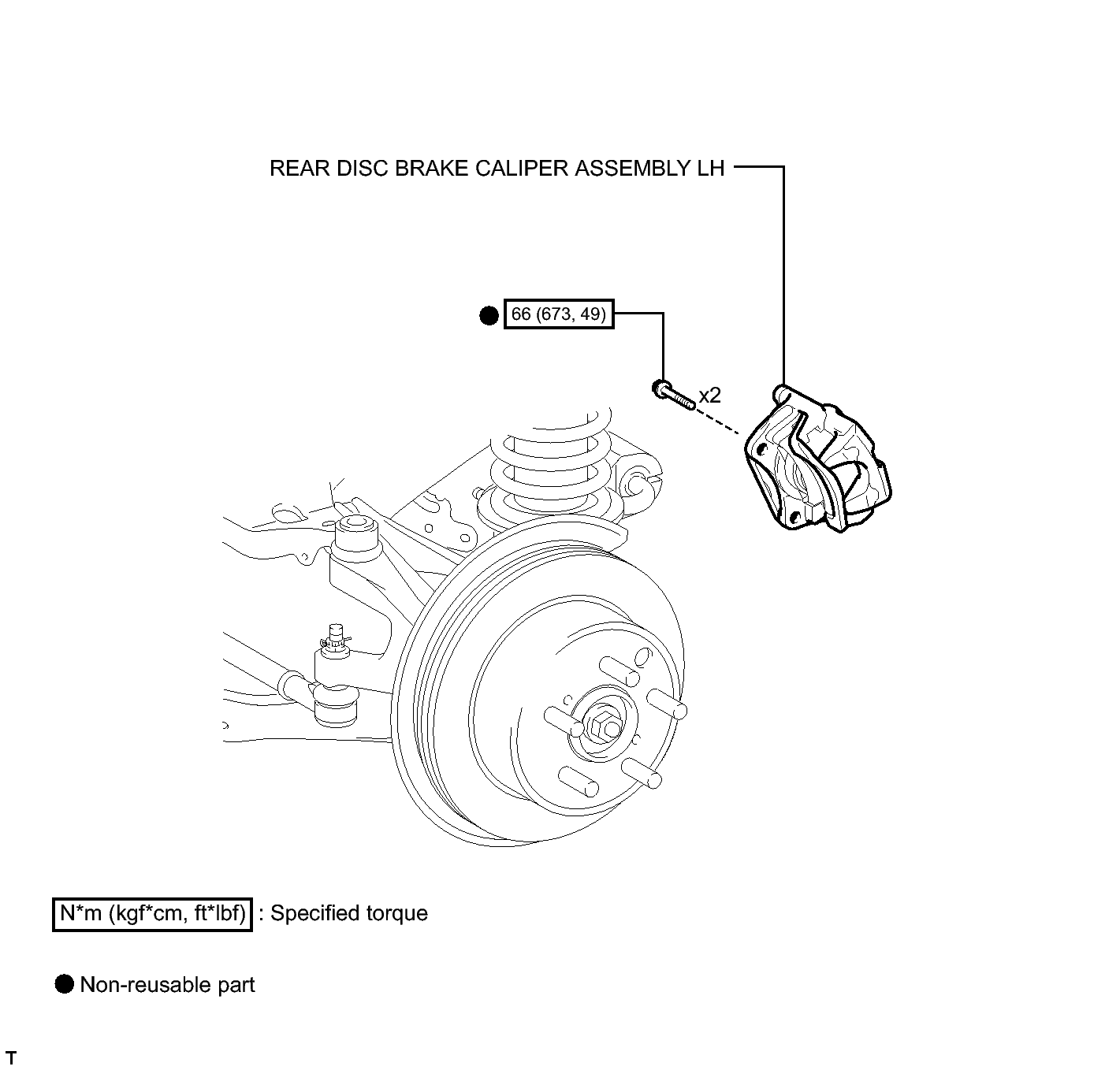

Fig 1: Identifying Parking Brake Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY391265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

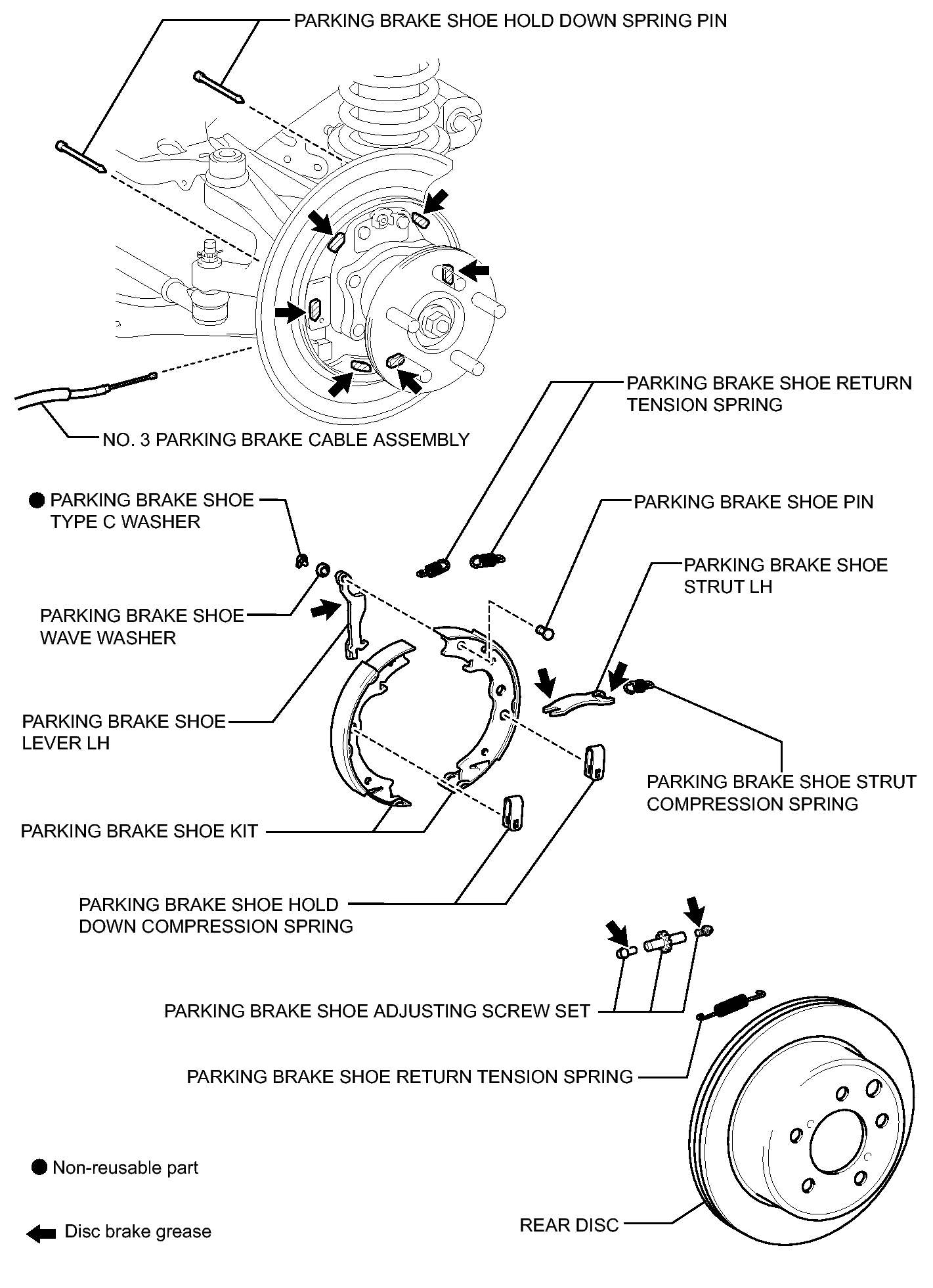

Fig 1: Identifying Parking Brake Assembly Replacement Components (2 Of 2)
GTY386382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
