Components [03/2012 - ]: Illustration

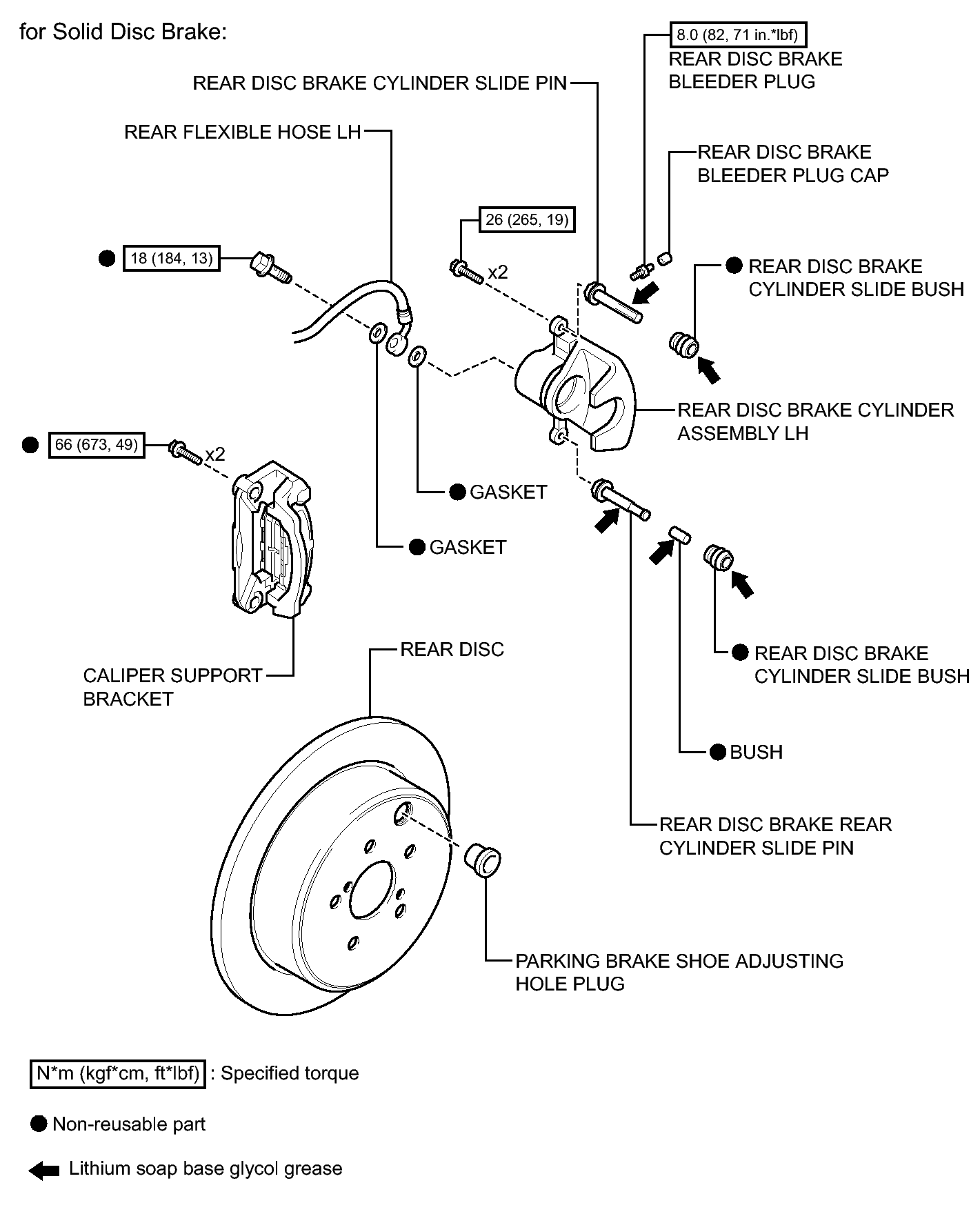

Fig 1: Identifying Rear Brake Replacement Components With Torque Specifications (1 Of 4)
GTY392681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

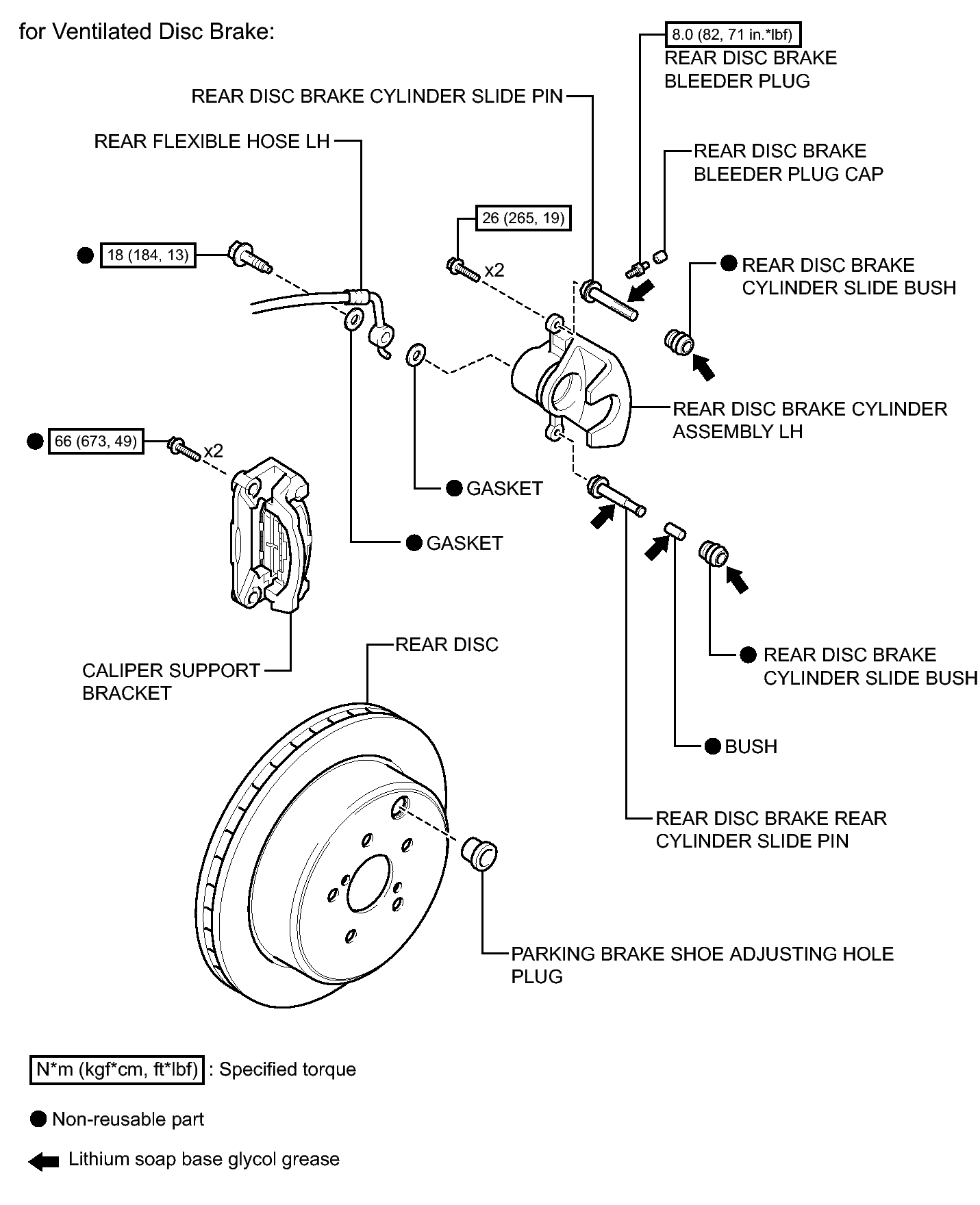

Fig 1: Identifying Rear Brake Replacement Components With Torque Specifications (2 Of 4)
GTY385667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

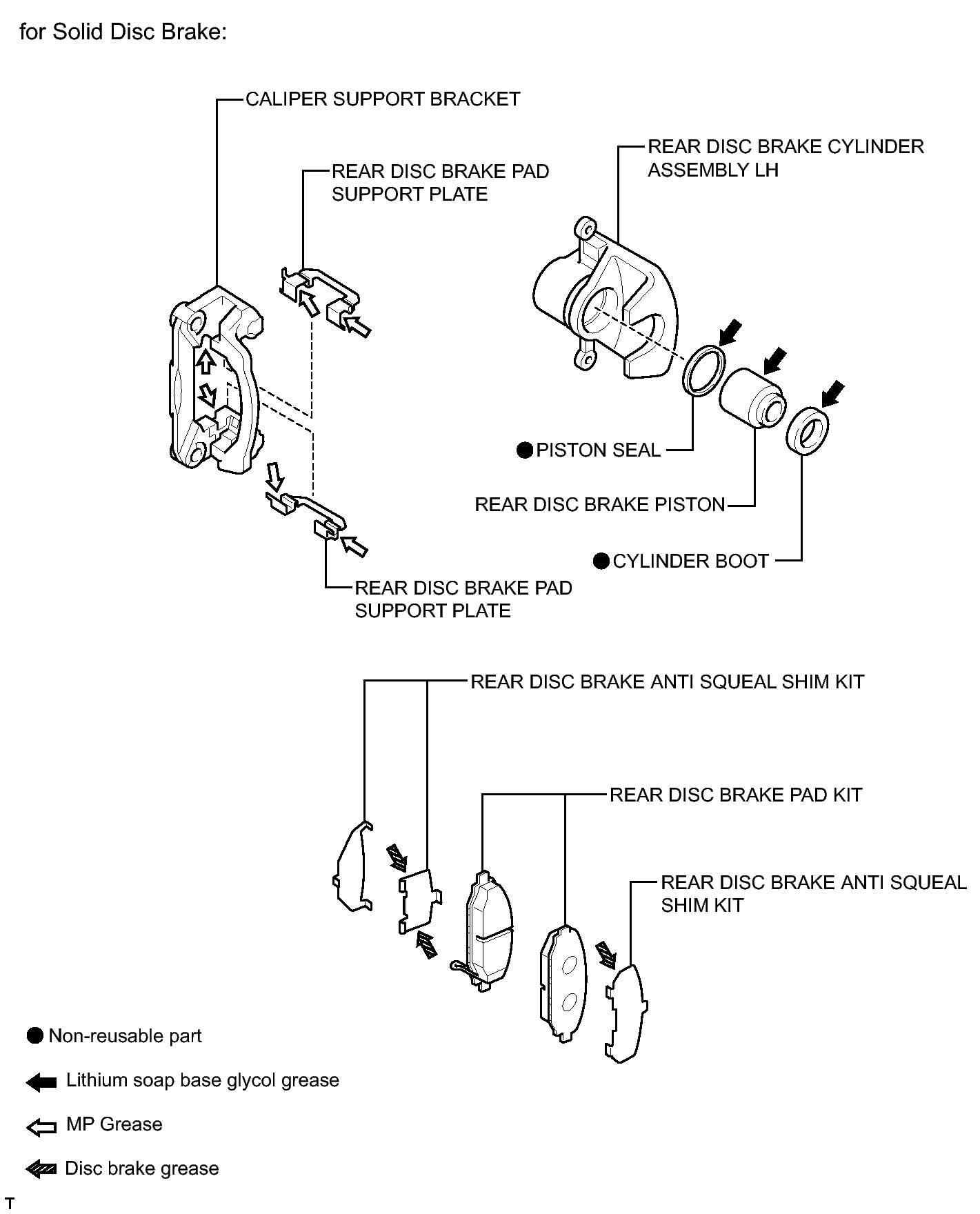

Fig 1: Identifying Rear Brake Replacement Components (3 Of 4)
GTY386309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

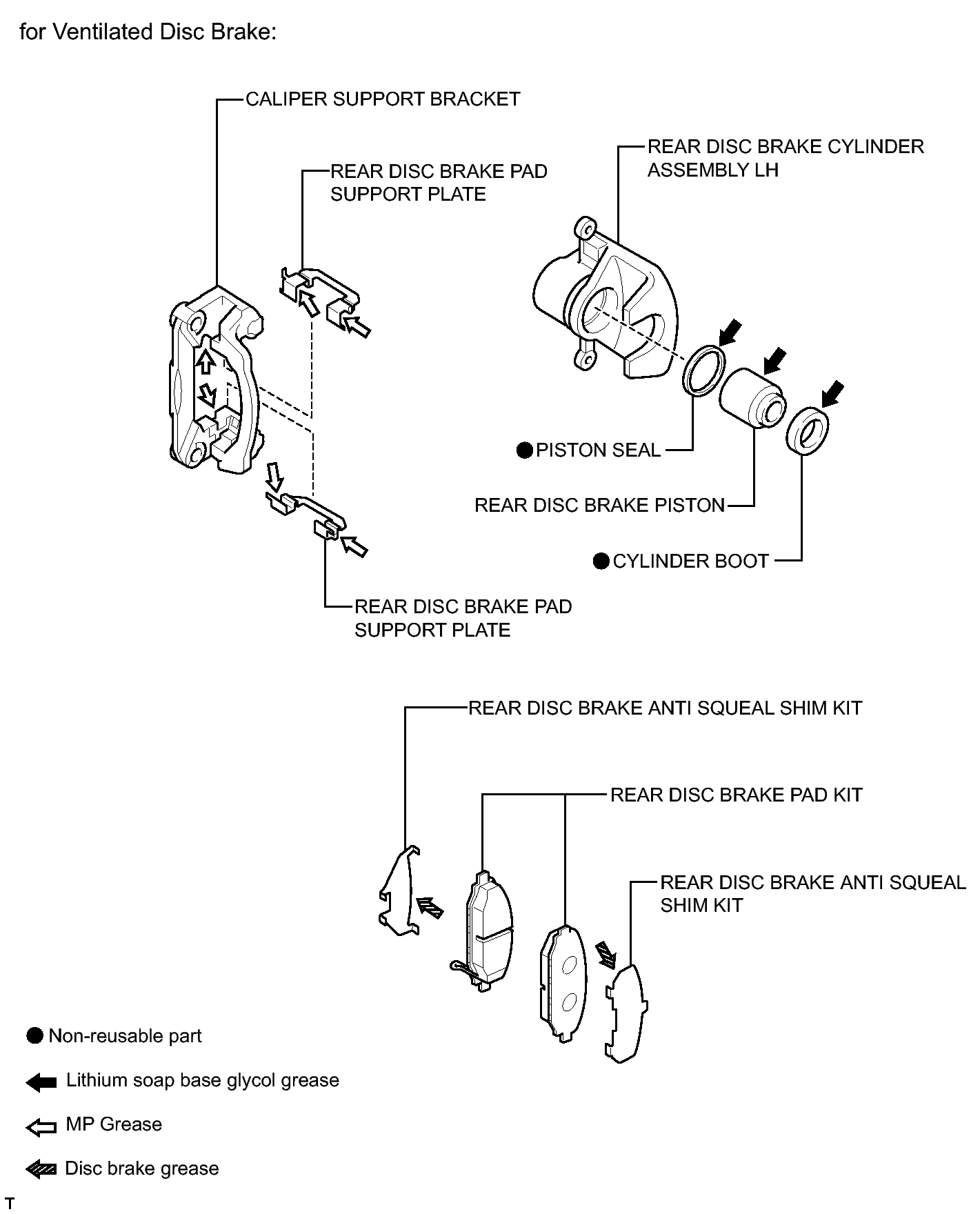

Fig 1: Identifying Rear Brake Replacement Components (4 Of 4)
GTY386343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
