Removal [03/2012 - ]

HINT:

• Use the same procedure for RH and LH sides.
• The procedure listed below is for LH side.

1. REMOVE REAR WHEEL
2. DRAIN BRAKE FLUID
3. REMOVE REAR LEFT FLEXIBLE HOSE

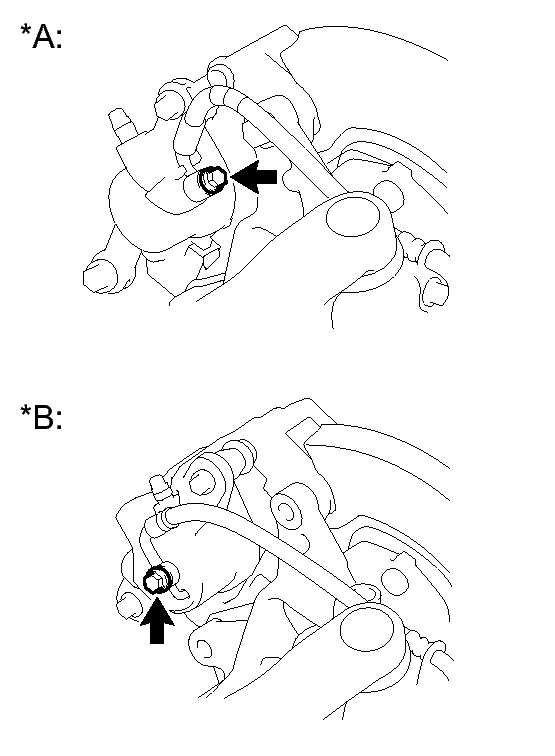

   1. Remove the union bolt and 2 gaskets, and disconnect the rear left flexible hose from the rear disc brake cylinder LH.
      Fig 1: Union Bolt And 2 Gaskets

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *A	Solid Disc Brake
      *B	Ventilated Disc Brake

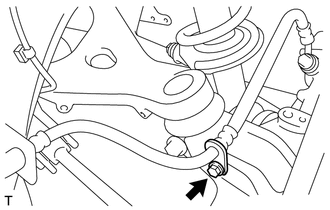

   2. Remove the bolt and separate the rear left flexible hose from the rear carrier LH.
      Fig 2: Remove The Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

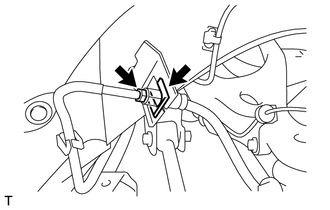

   3. Hold the rear left flexible hose with a wrench and disconnect the brake tube using a union nut wrench.
      Fig 3: Disconnect The Brake Tube

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      • Do not bend or damage the brake tube.
      • Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting position.
   4. Remove the clip.
   5. Remove the rear left flexible hose.
