Components [03/2012 - ]: Illustration

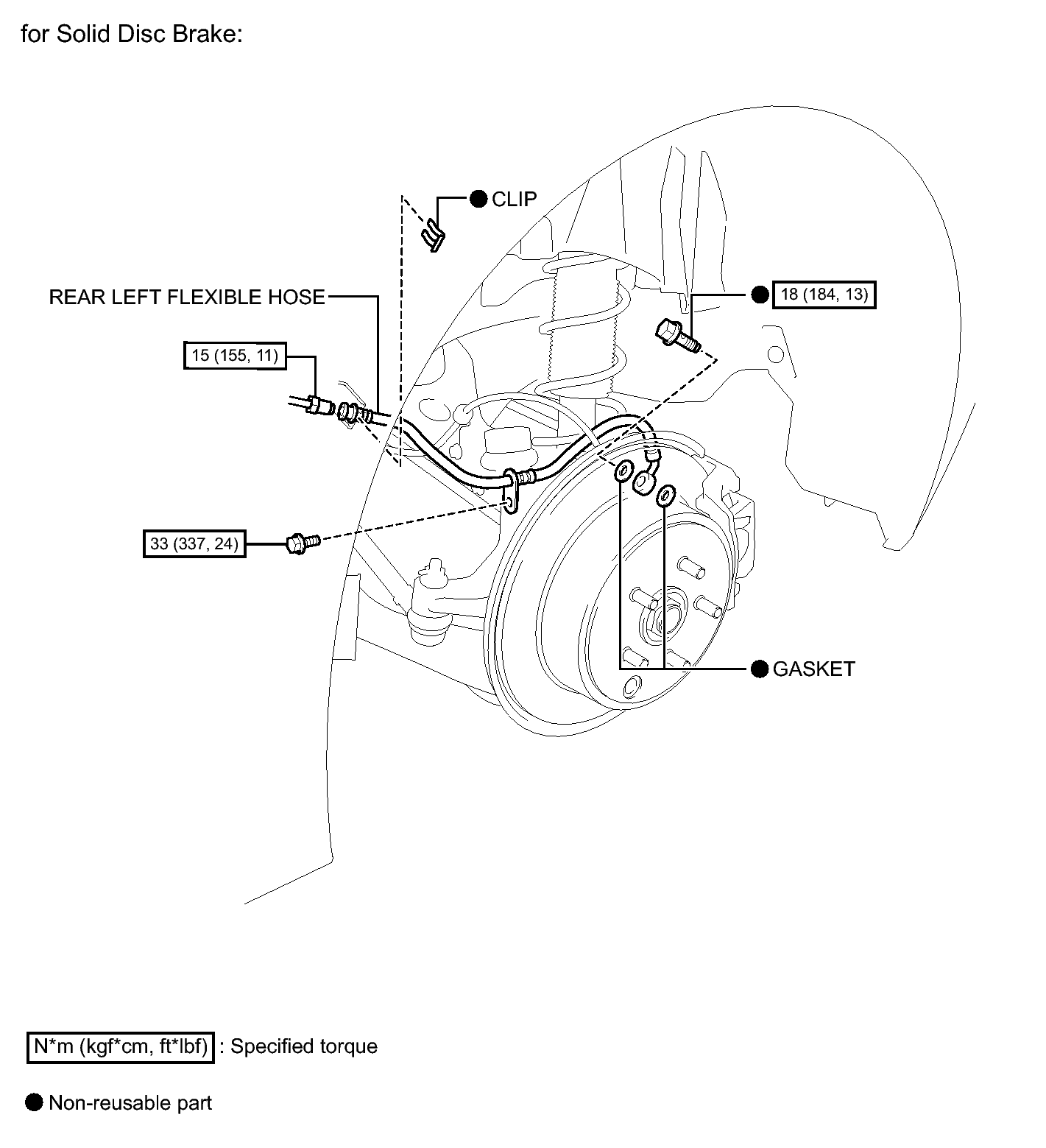

Fig 1: Identifying Rear Brake Flexible Hose Replacement Components With Torque Specifications (1 Of 2)
GTY390336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

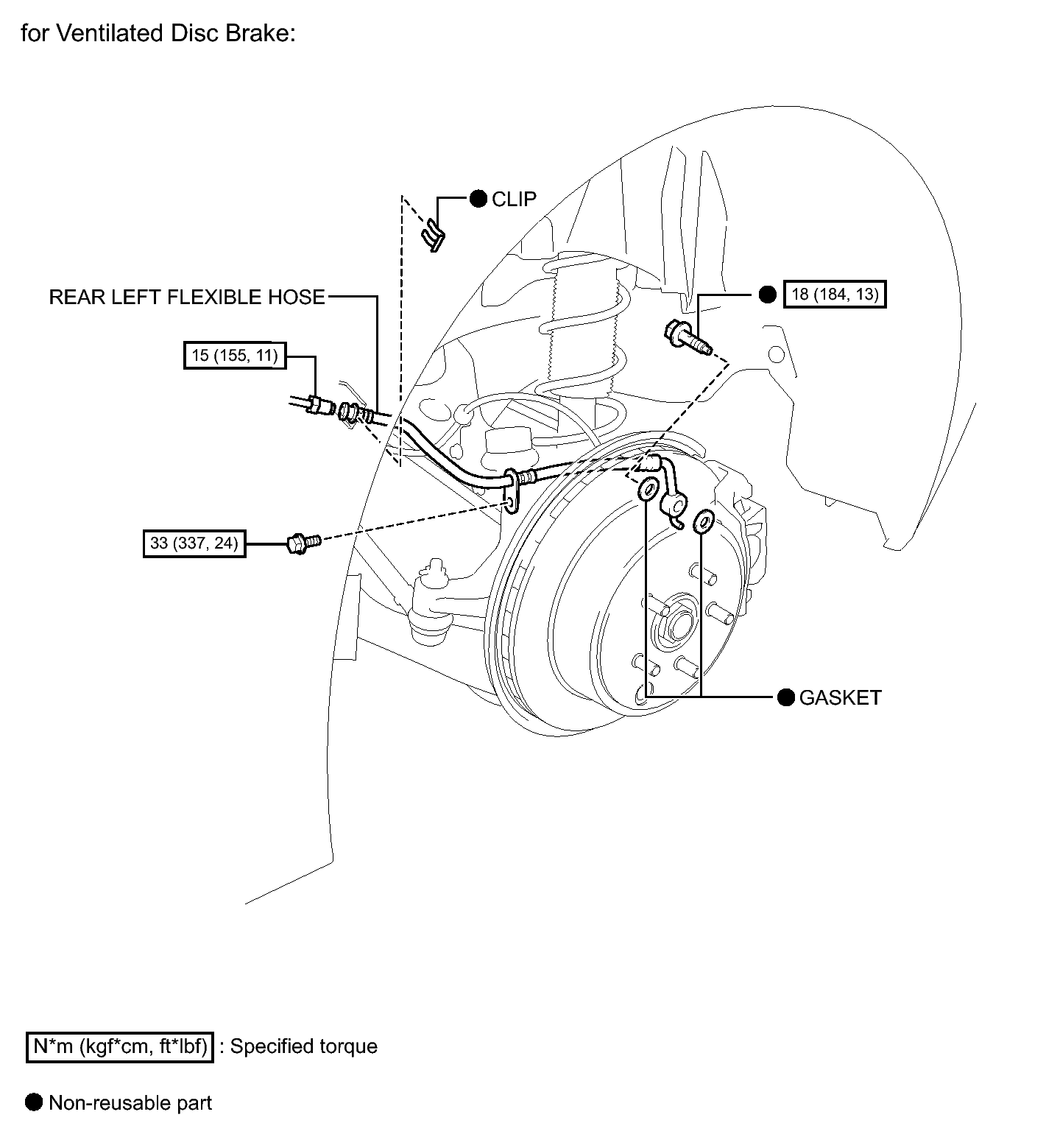

Fig 1: Identifying Rear Brake Flexible Hose Replacement Components With Torque Specifications (2 Of 2)
GTY391203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
