Components [03/2012 - ]: Illustration

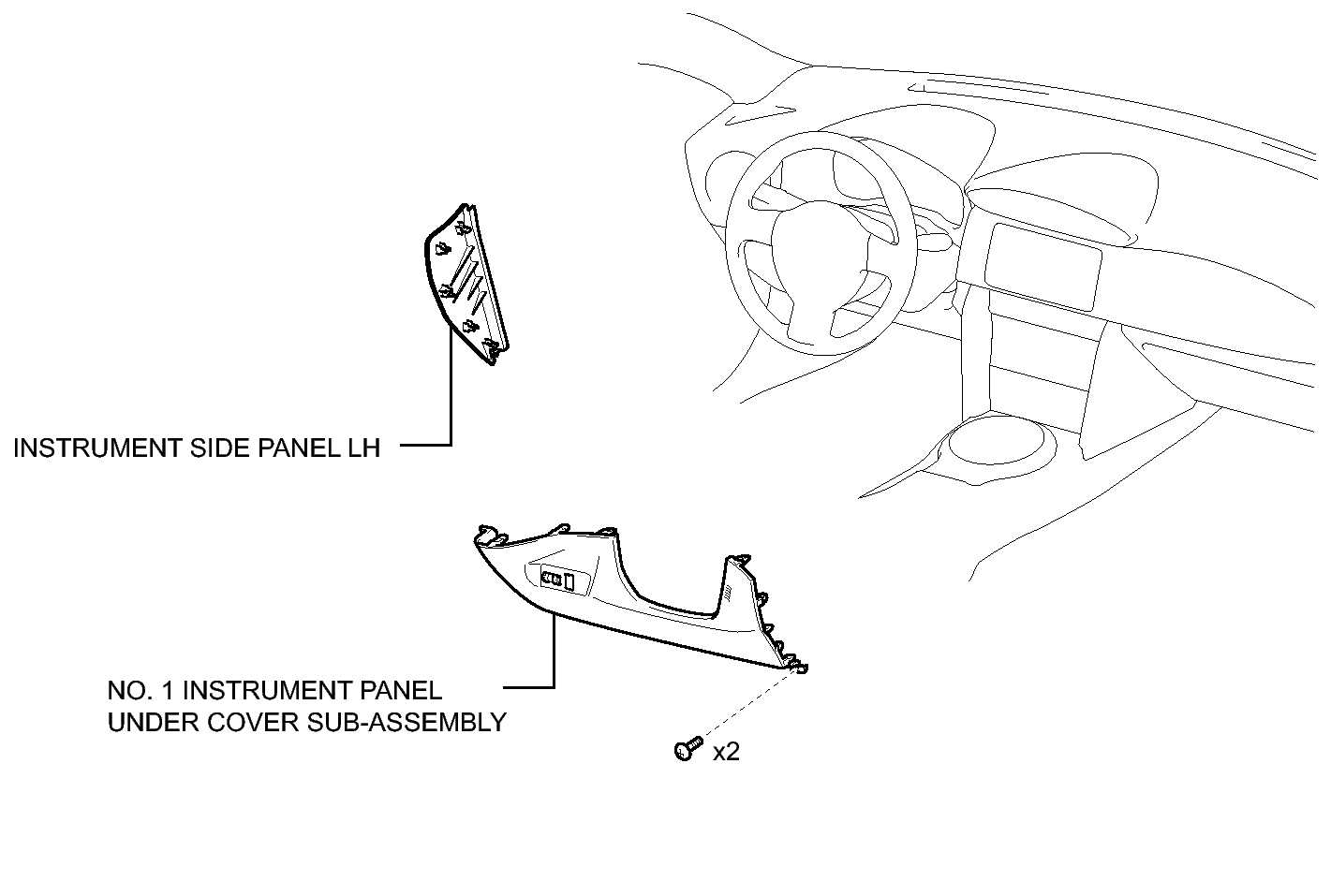

Fig 1: Identifying Brake Booster Replacement Components (1 Of 3)
GTY386833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

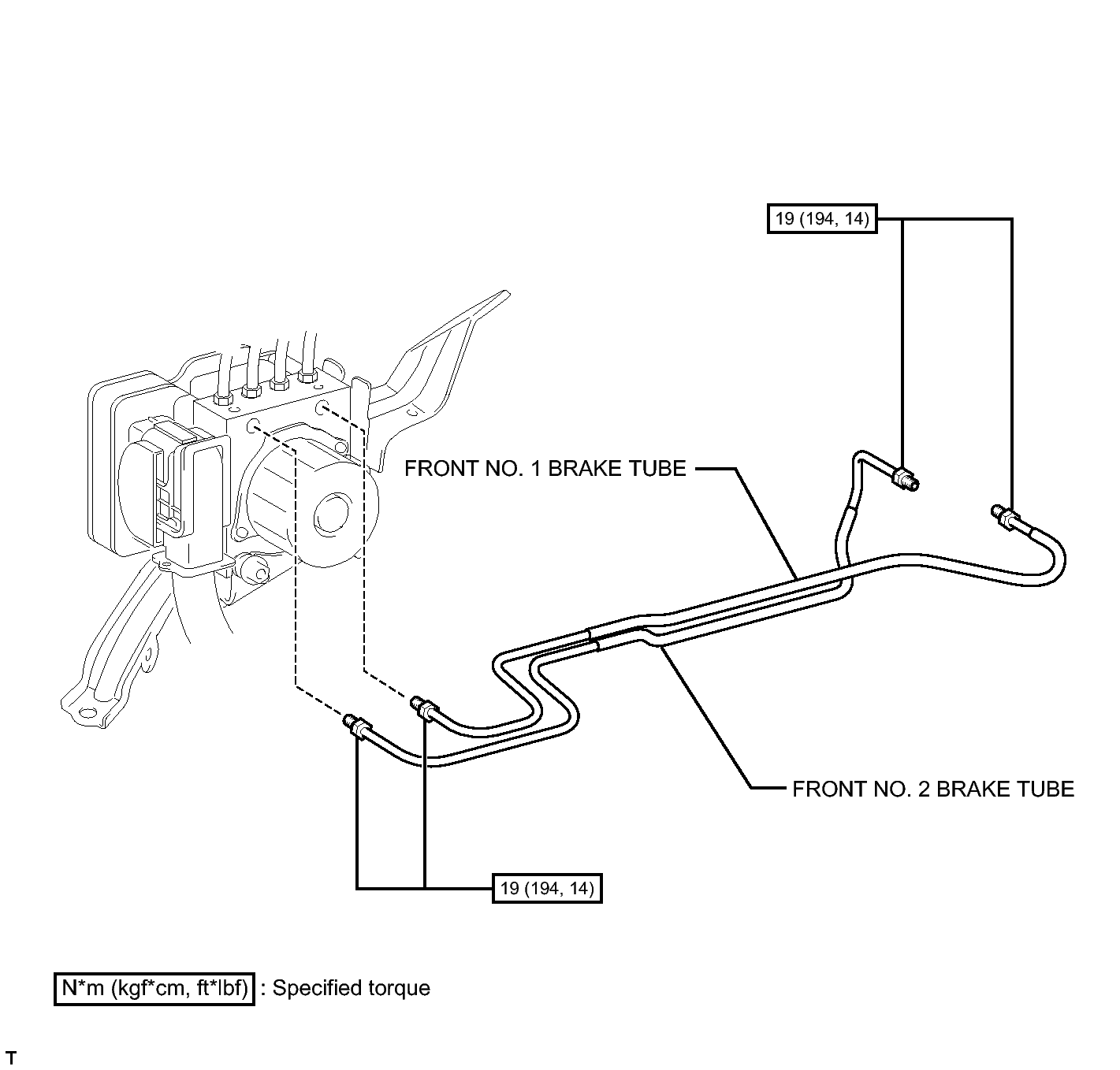

Fig 1: Identifying Brake Booster Replacement Components With Torque Specifications (2 Of 3)
GTY390666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

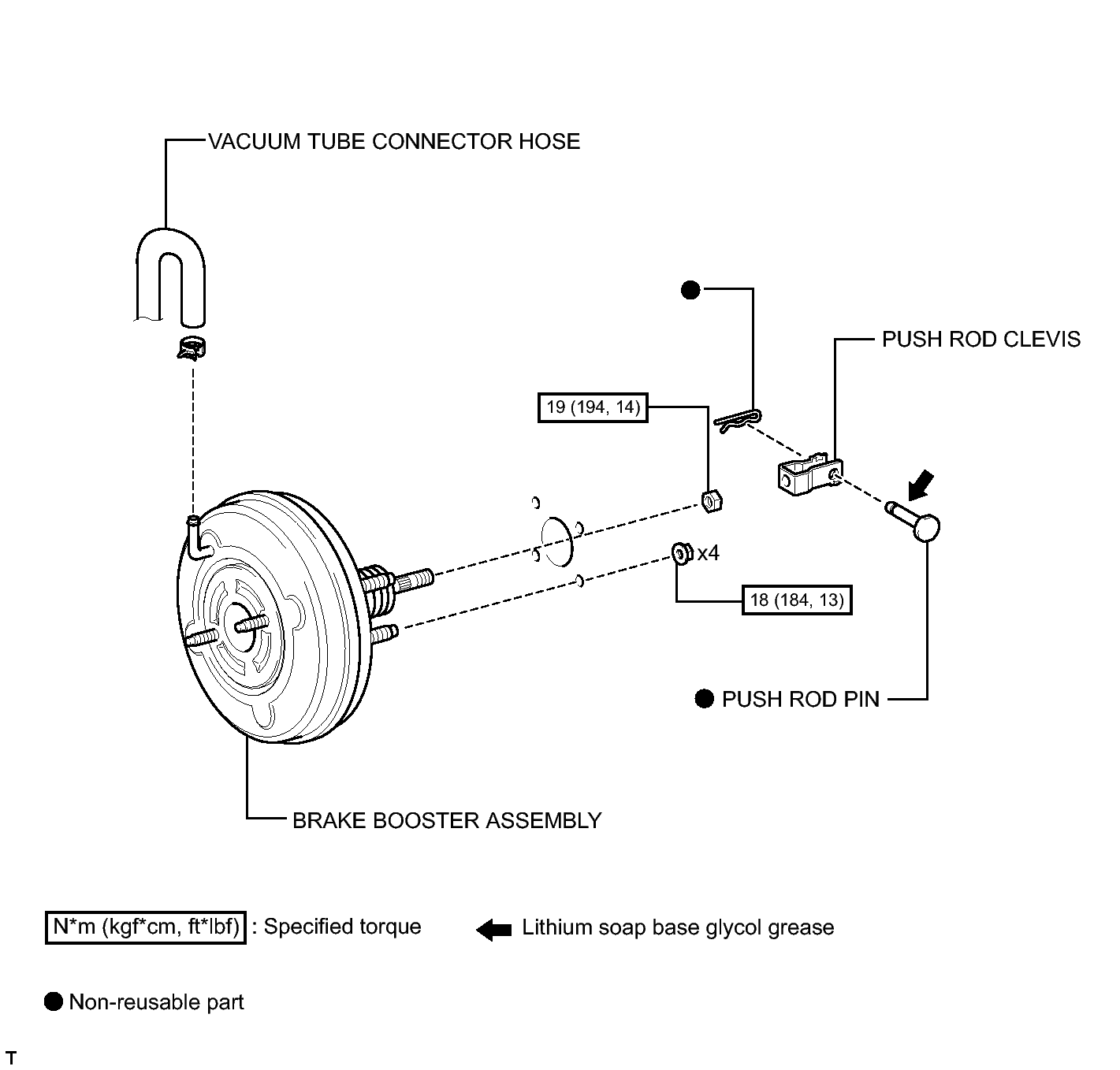

Fig 1: Identifying Brake Booster Replacement Components With Torque Specifications (3 Of 3)
GTY391800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
