Components [03/2012 - ]: Illustration

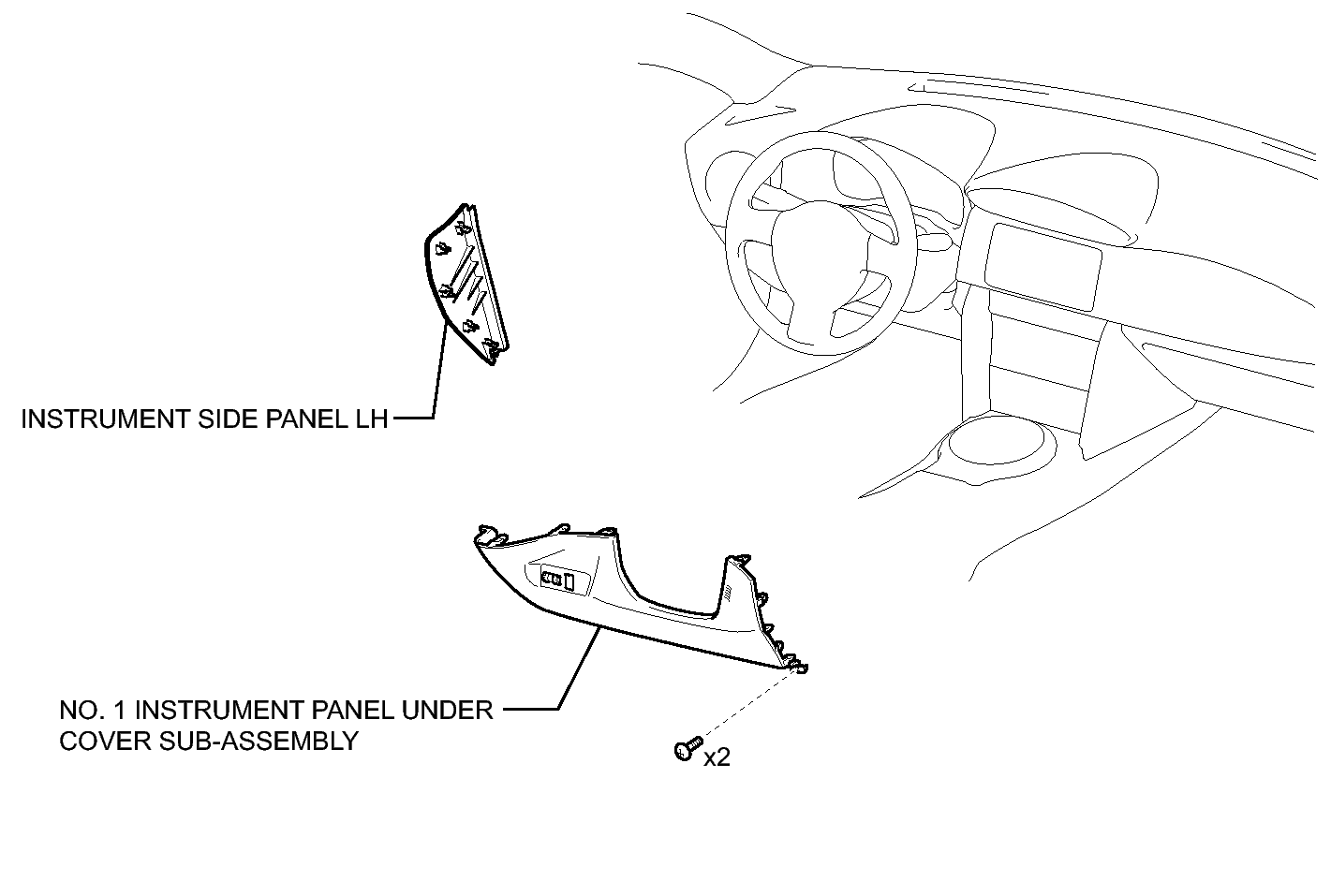

Fig 1: Identifying Brake Pedal (for Automatic Transmission) Replacement Components (1 Of 2)
GTY392074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

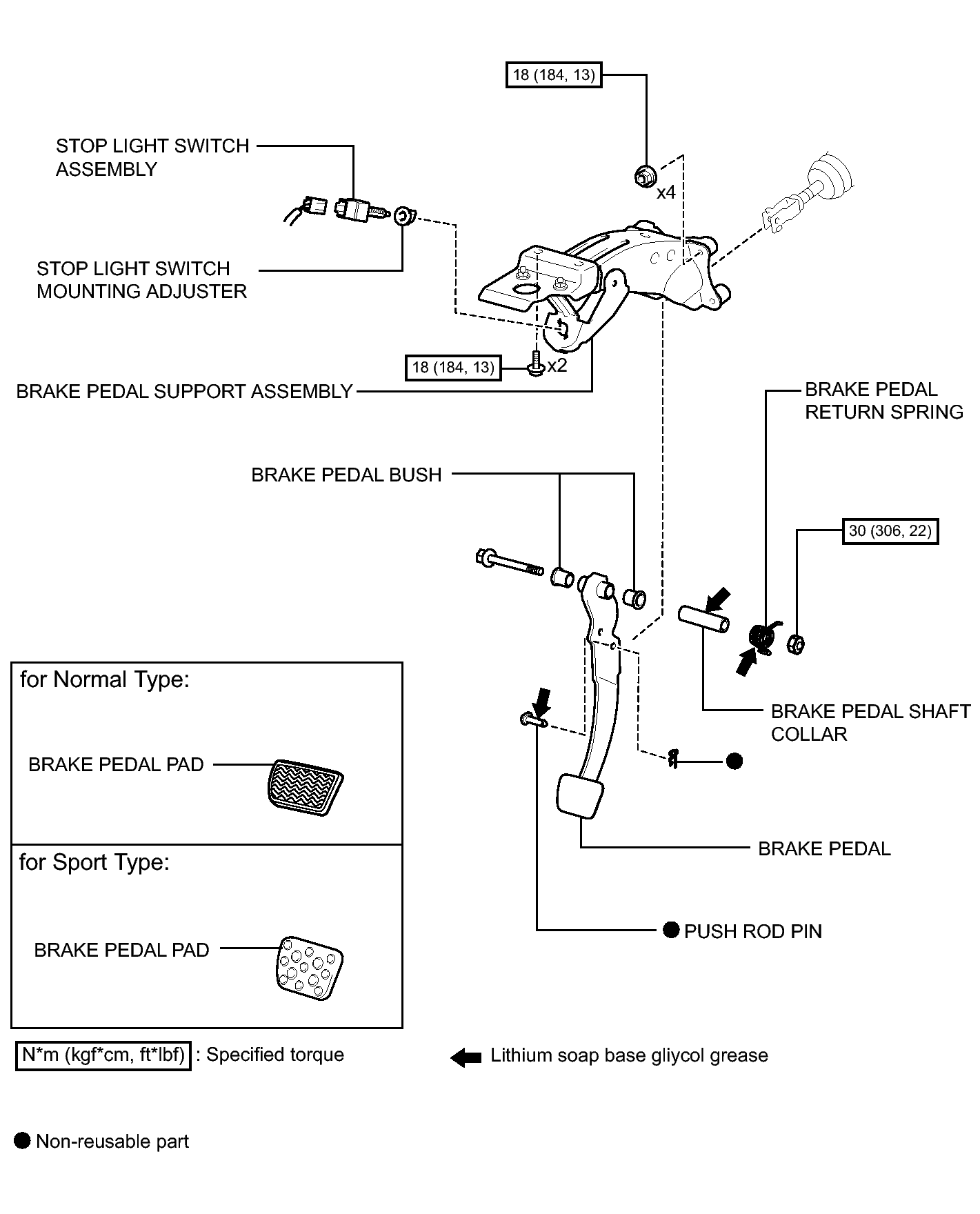

Fig 1: Identifying Brake Pedal (for Automatic Transmission) Replacement Components With Torque Specifications (2 Of 2)
GTY387402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
