Components [03/2012 - ]: Illustration

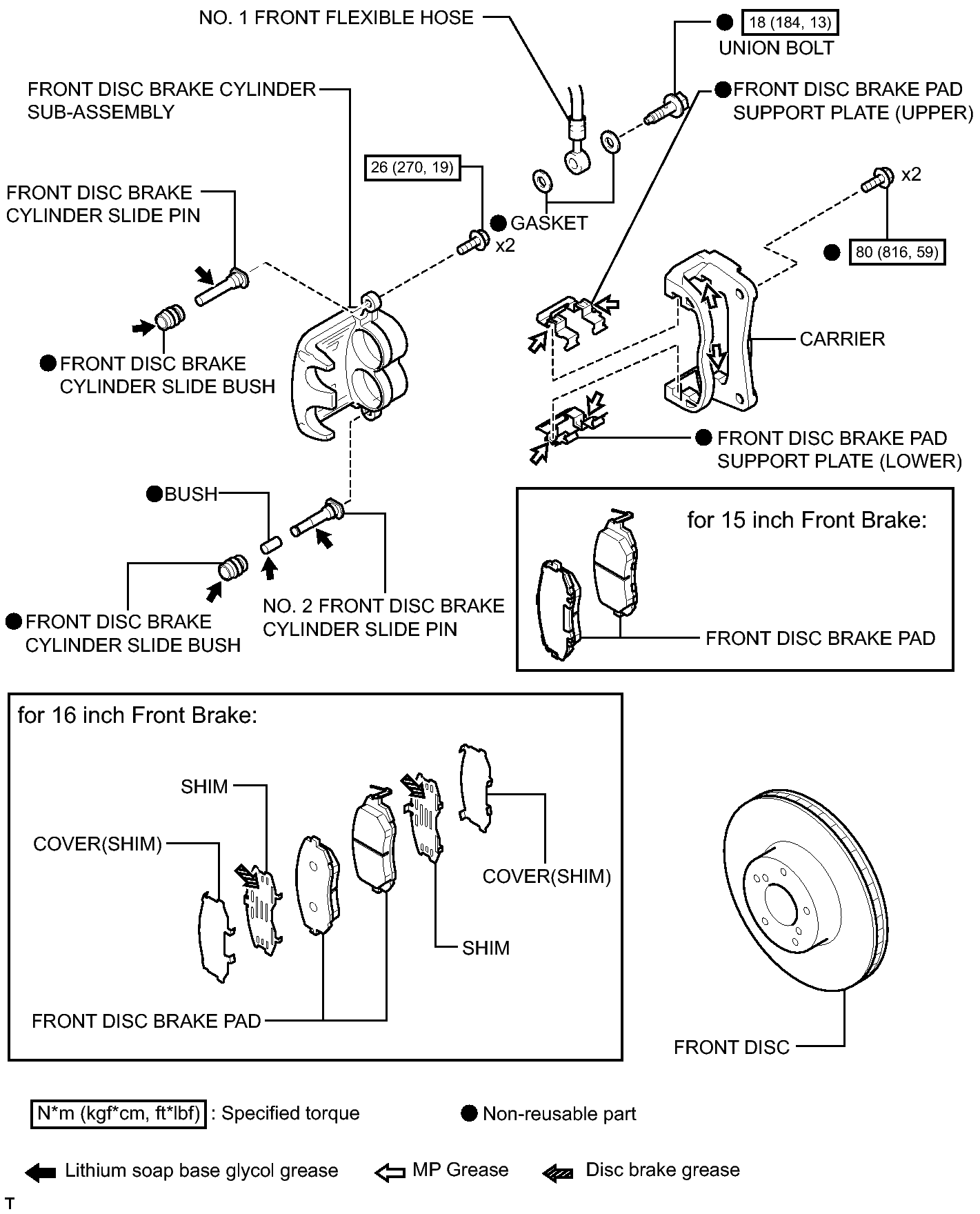

Fig 1: Identifying Front Brake Replacement Components With Torque Specifications (1 Of 2)
GTY391627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Front Brake Replacement Components With Torque Specifications (2 Of 2)
GTY389182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
