Parts Location [03/2012 - ]: Illustration

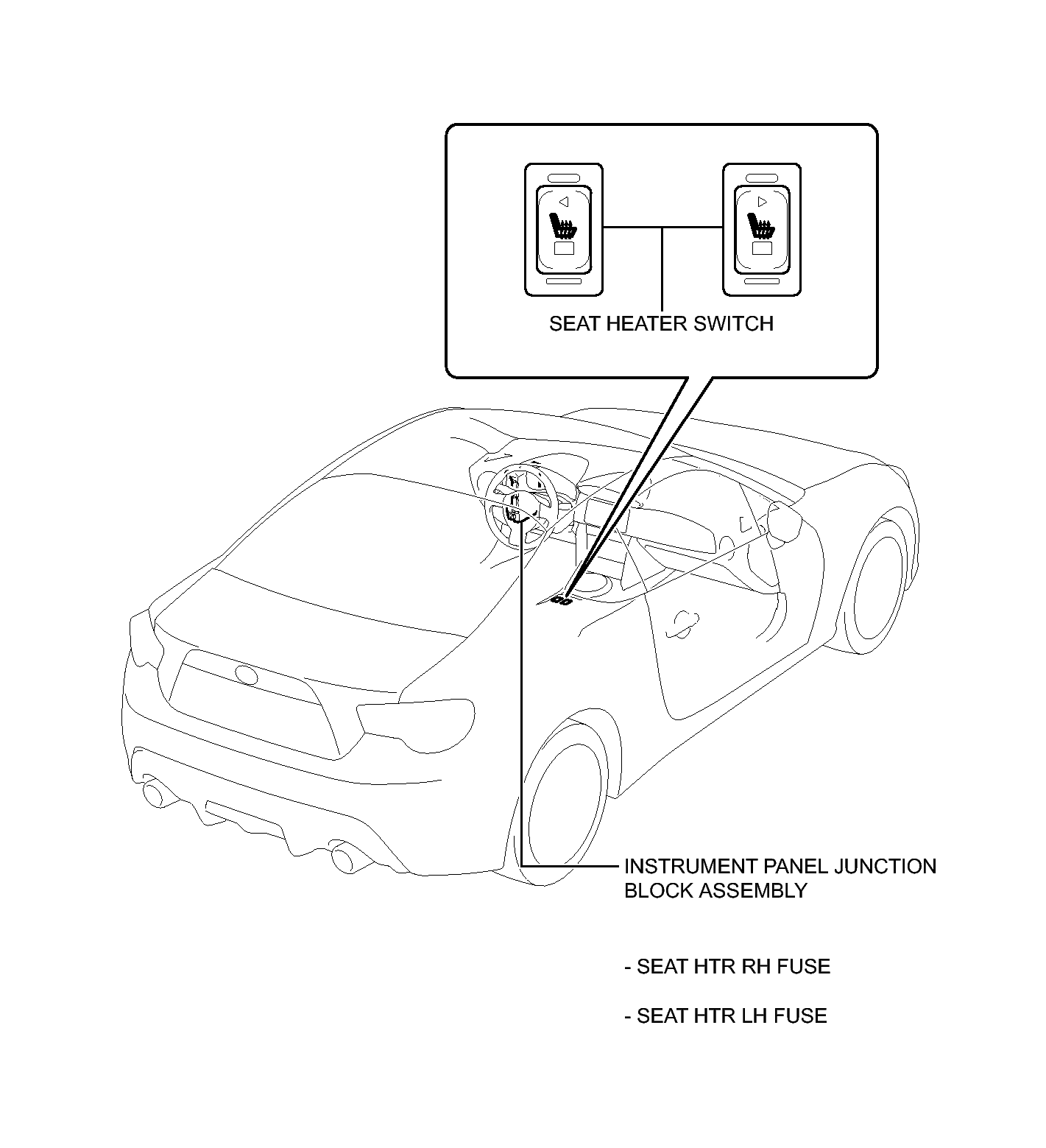

Fig 1: Identifying Seat Heater System Components Location (1 Of 2)
GTY390480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

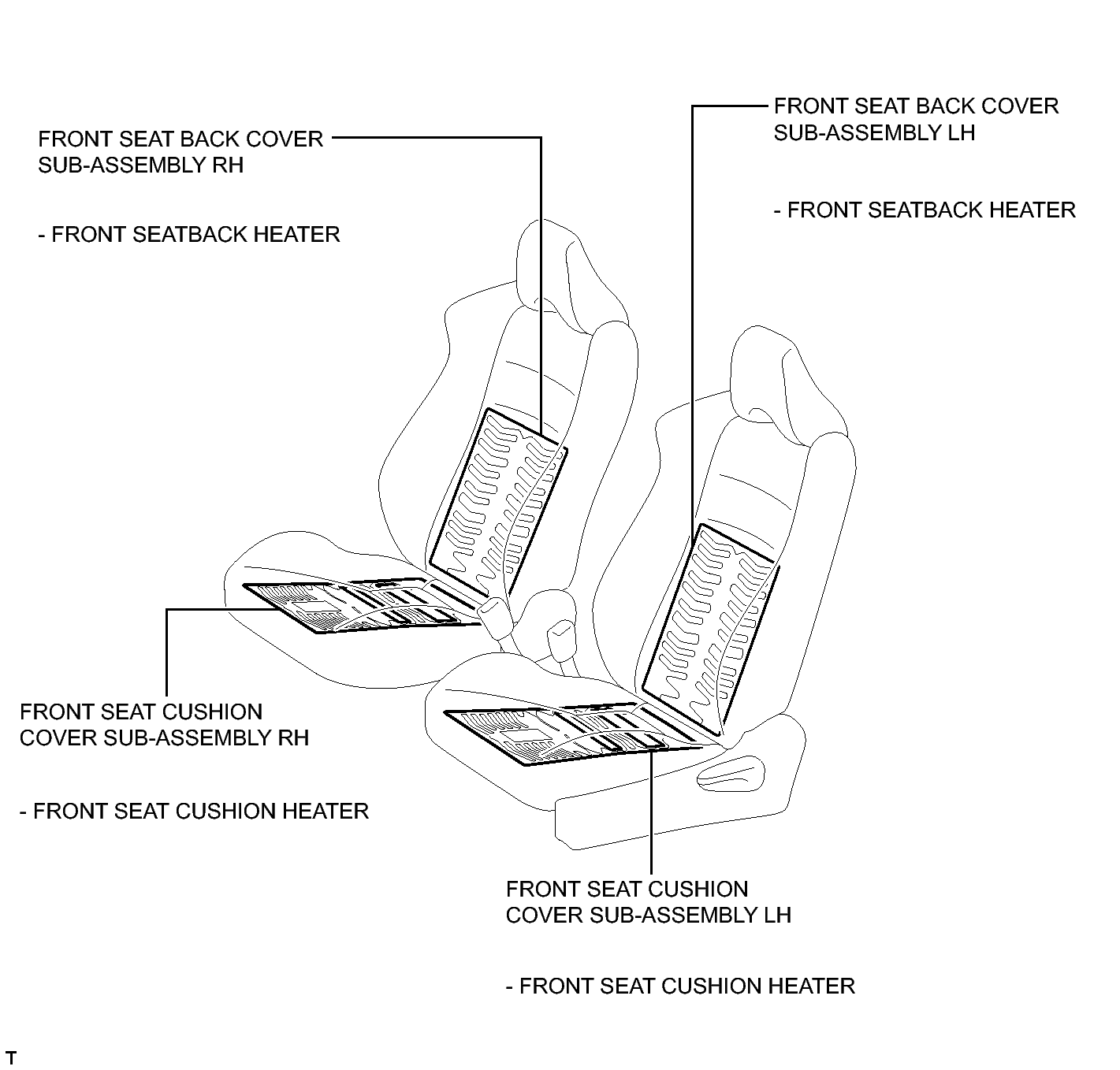

Fig 1: Identifying Seat Heater System Components Location (2 Of 2)
GTY387507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
