Components [03/2012 - ]: Illustration

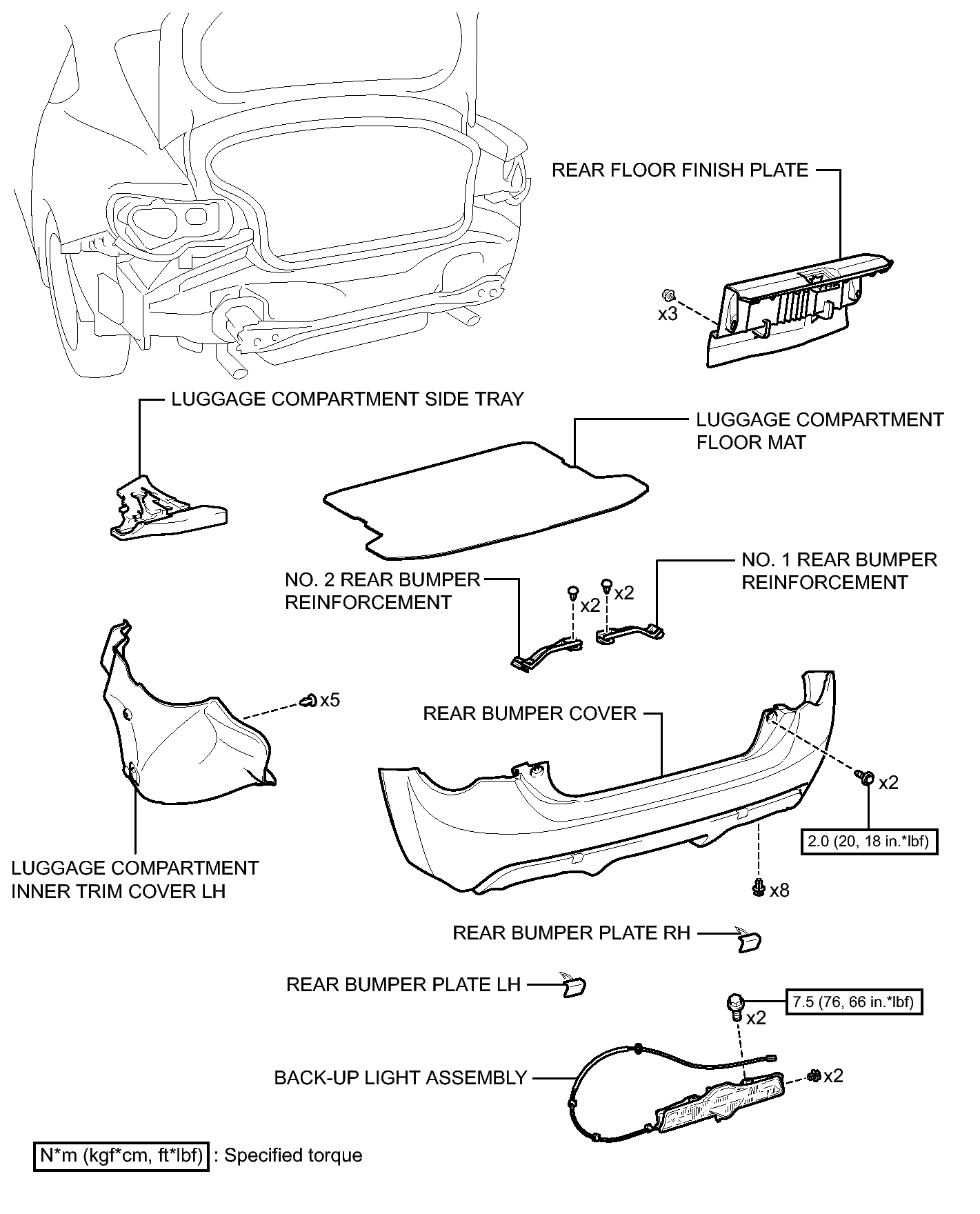

Fig 1: Identifying Rear Bumper Replacement Components With Torque Specifications (1 Of 2)
GTY390567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

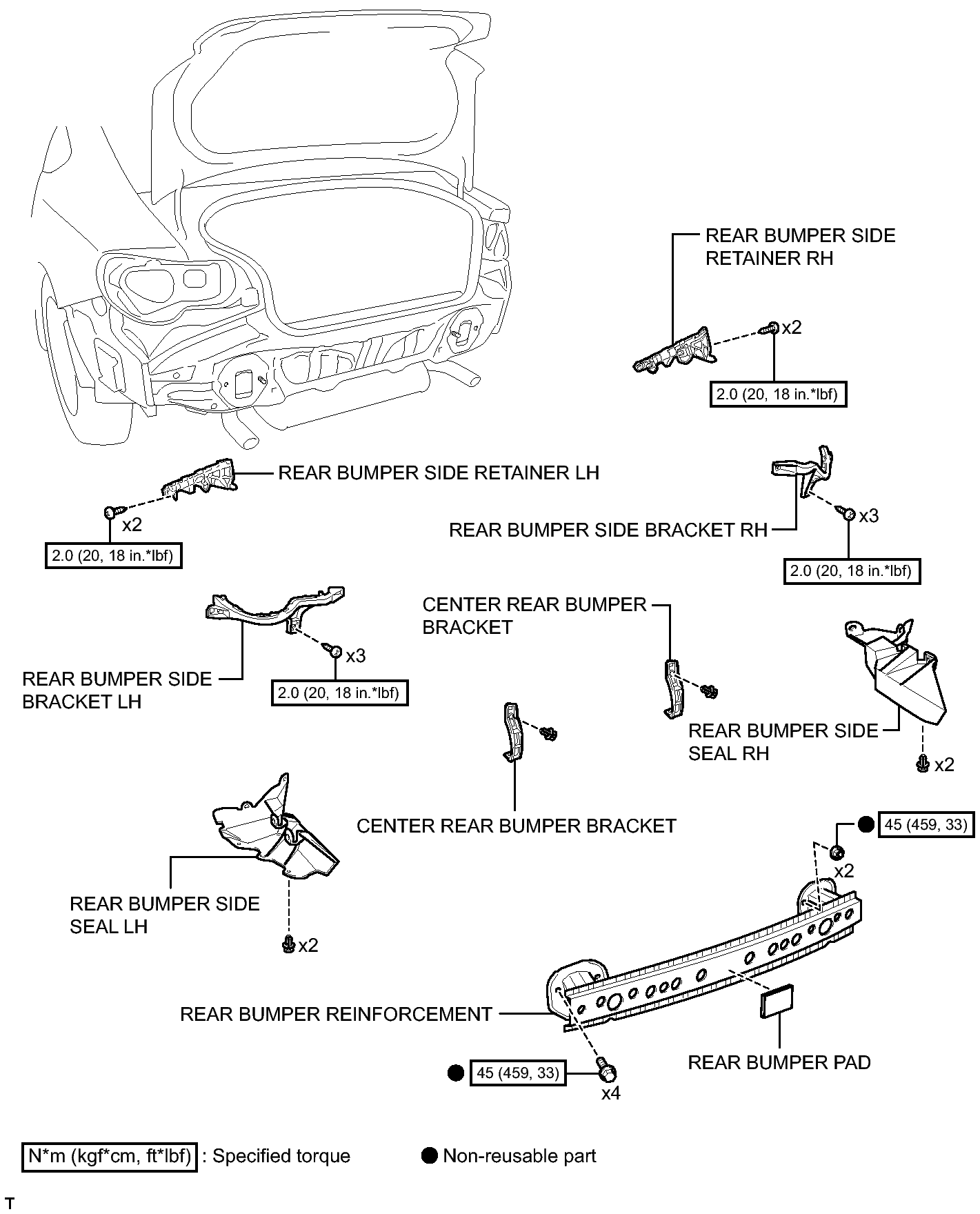

Fig 1: Identifying Rear Bumper Replacement Components With Torque Specifications (2 Of 2)
GTY387734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
