Parts Location [03/2012 - ]: Illustration

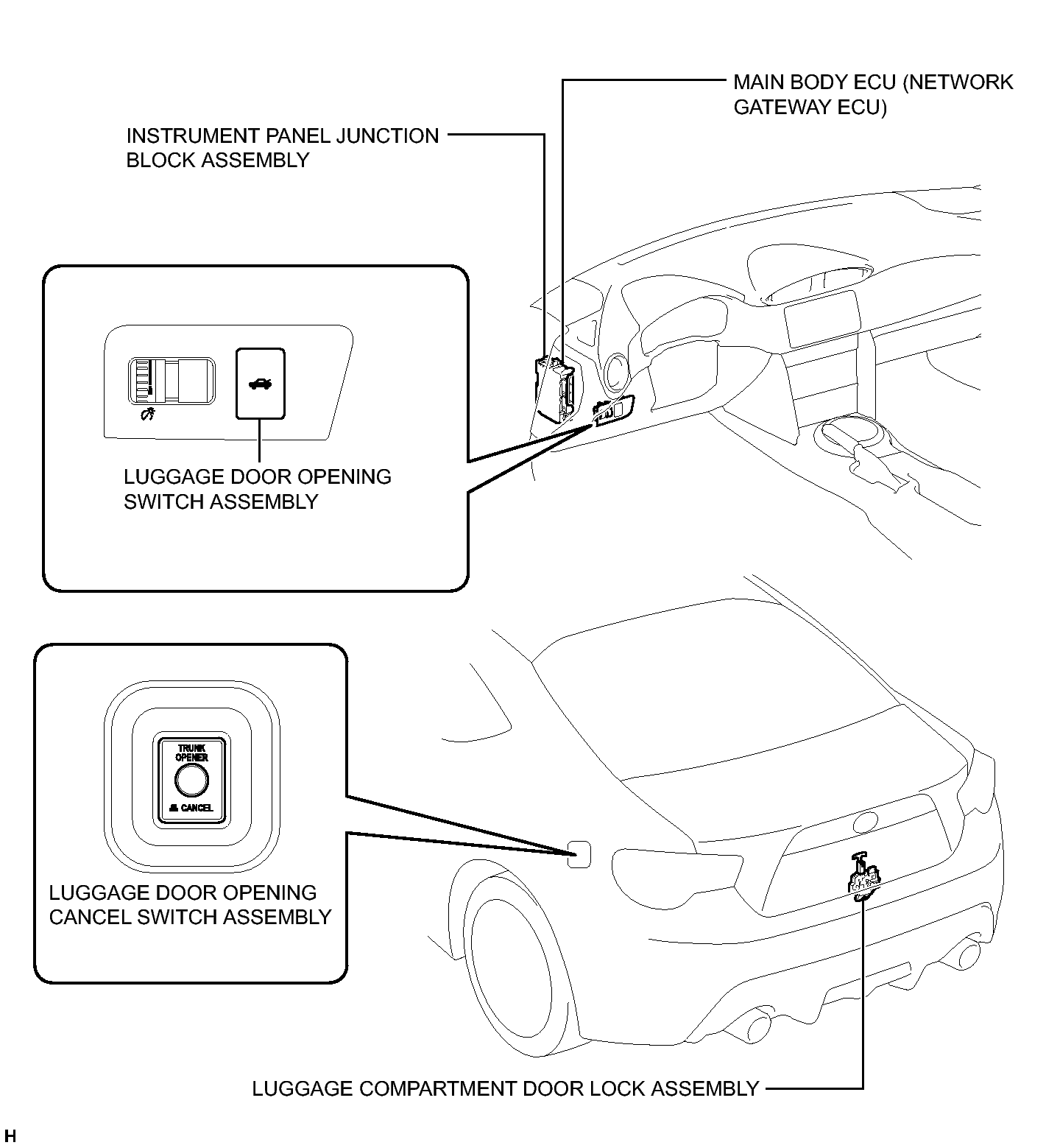

Fig 1: Identifying Luggage Compartment Door Opener System Component Location

GTY388076

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
