Removal [03/2012 - ]

  1. REMOVE INSTRUMENT SIDE PANEL LH  . Refer to REMOVAL [03/2012 - 05/2013] - Step 13
  2. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  . Refer to REMOVAL [03/2012 - ] - Step 2
  3. REMOVE SWITCH BASE  . Refer to REMOVAL [03/2012 - ] - Step 3
  4. REMOVE LUGGAGE DOOR OPENING SWITCH ASSEMBLY
    1. Disengage the 2 claws and remove the luggage door opening switch assembly.

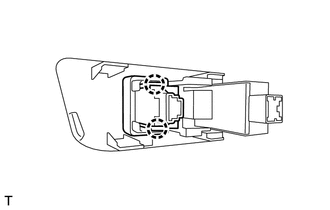

      Fig 1: Locating Luggage Door Opening Switch Claws
      GTY388903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
