Components [05/2013 - ]: Illustration

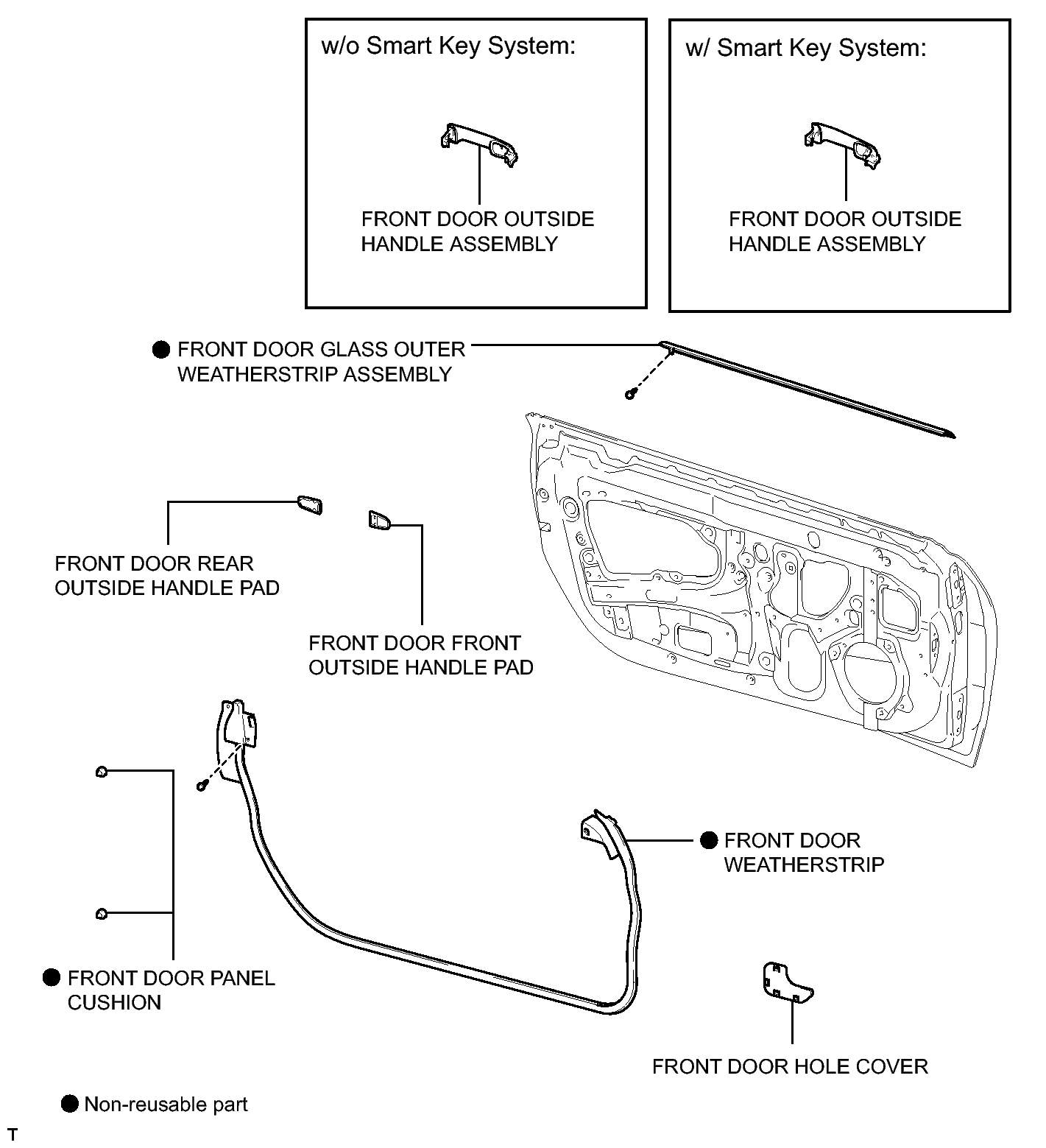

Fig 1: Identifying Front Door Replacement Components [05/2013 - ] (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

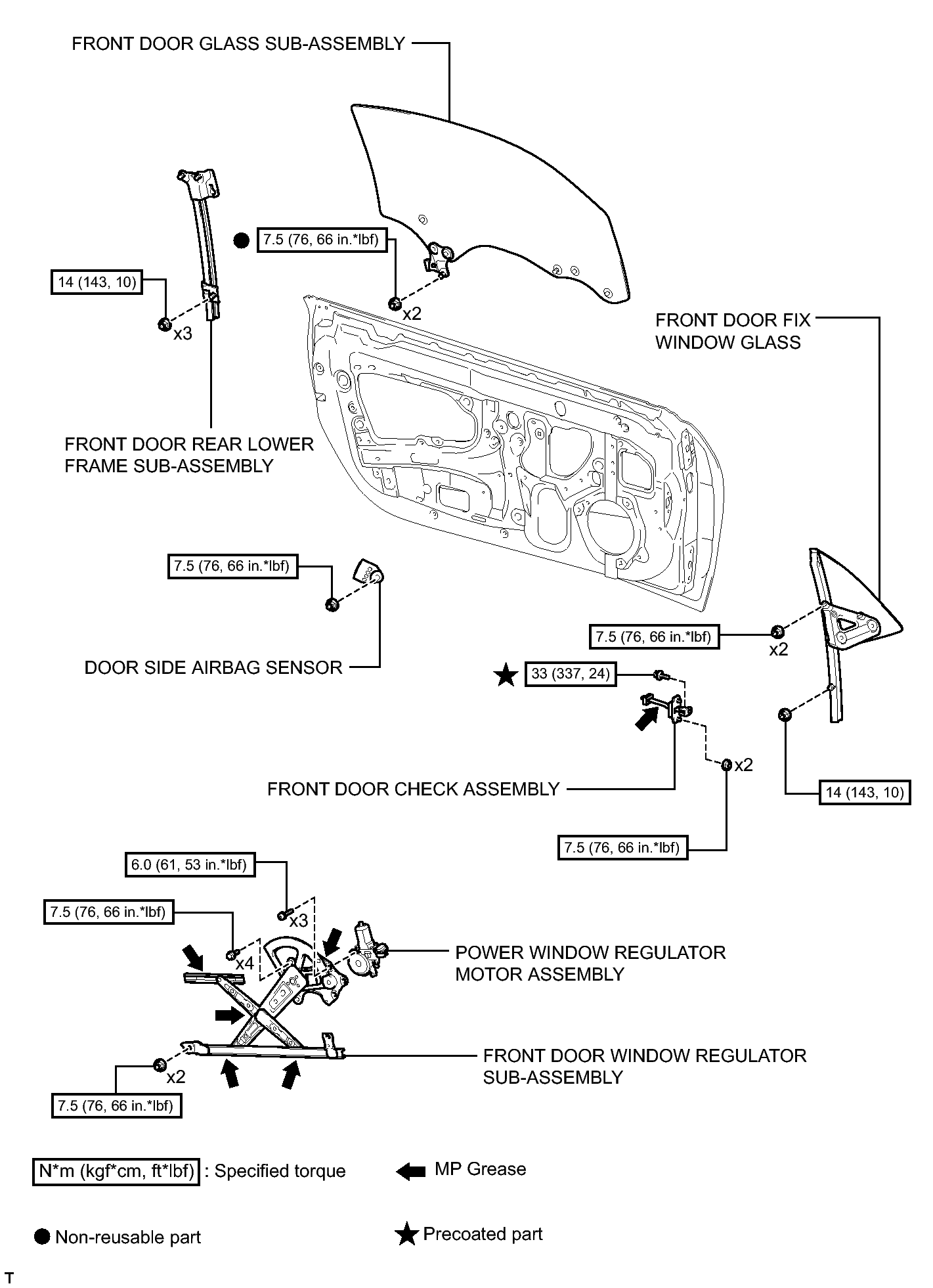

Fig 1: Identifying Front Door Replacement Components With Torque Specifications [05/2013 - ] (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Front Door Replacement Components With Torque Specifications [05/2013 - ] (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Front Door Replacement Components With Torque Specifications [05/2013 - ] (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Front Door Replacement Components [05/2013 - ] (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
