Components [03/2012 - 05/2013]: Illustration

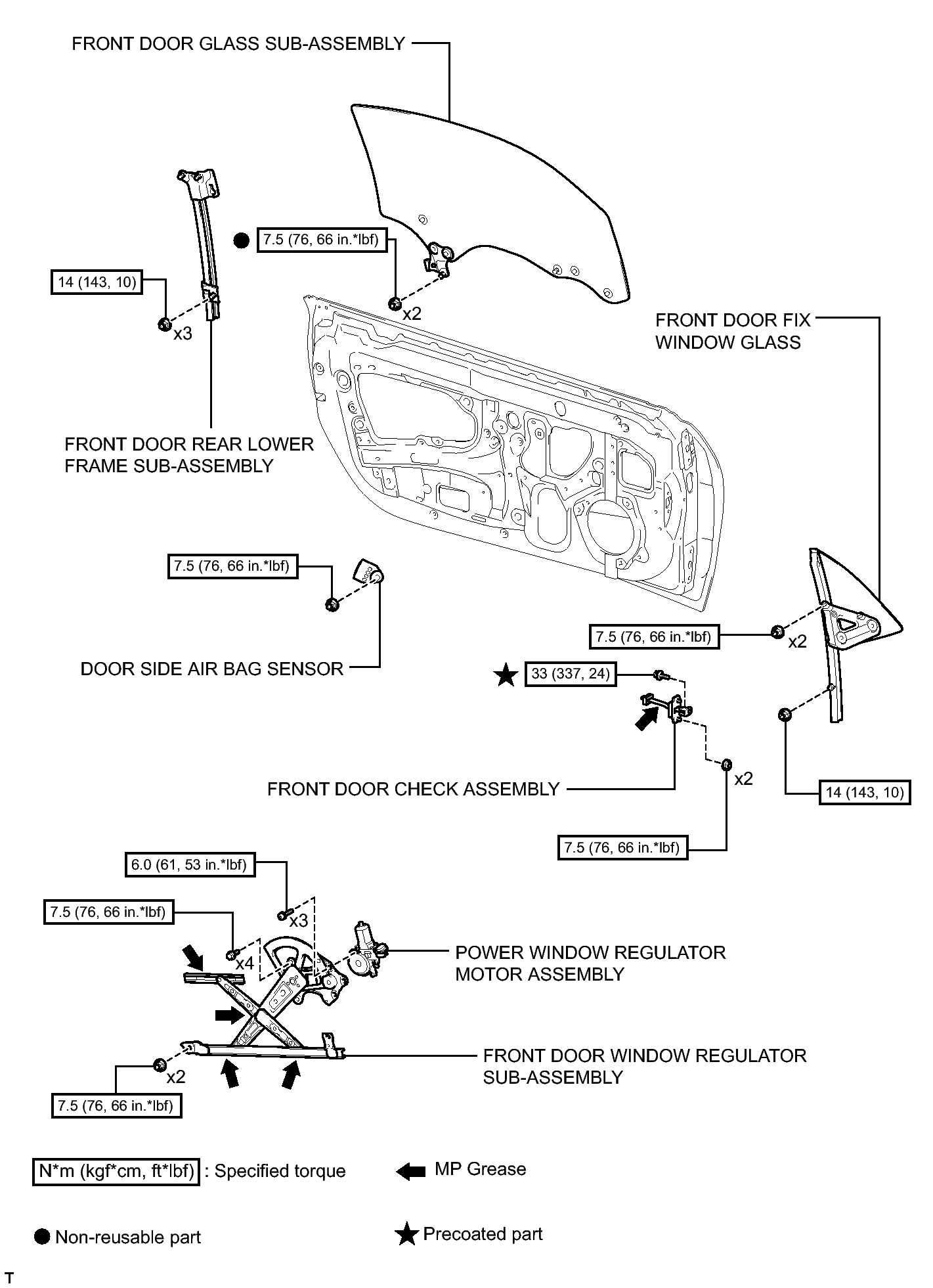

Fig 1: Identifying Front Door Replacement Components [03/2012 - 05/2013] (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

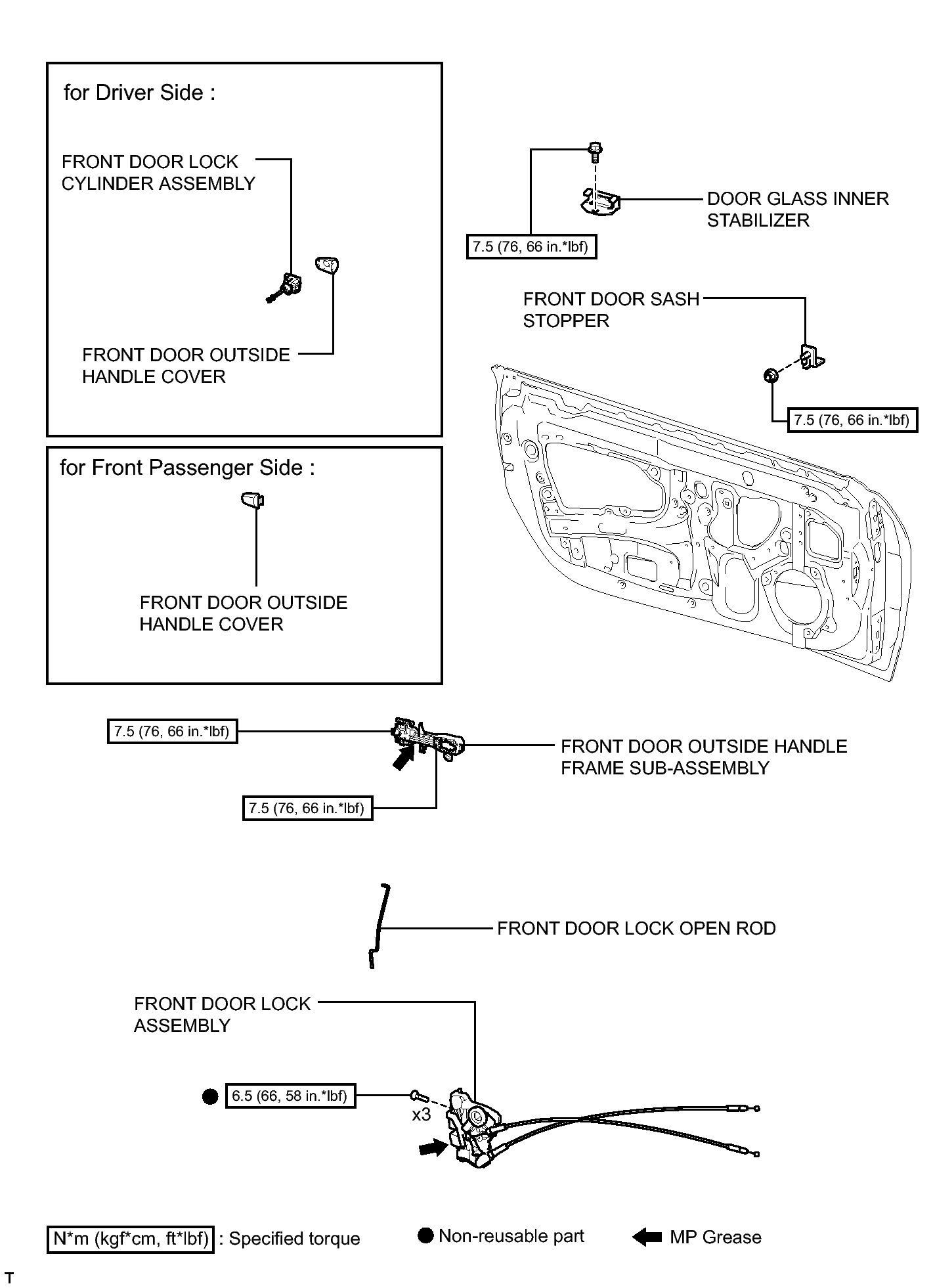

Fig 1: Identifying Front Door Replacement Components With Torque Specifications [03/2012 - 05/2013] (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

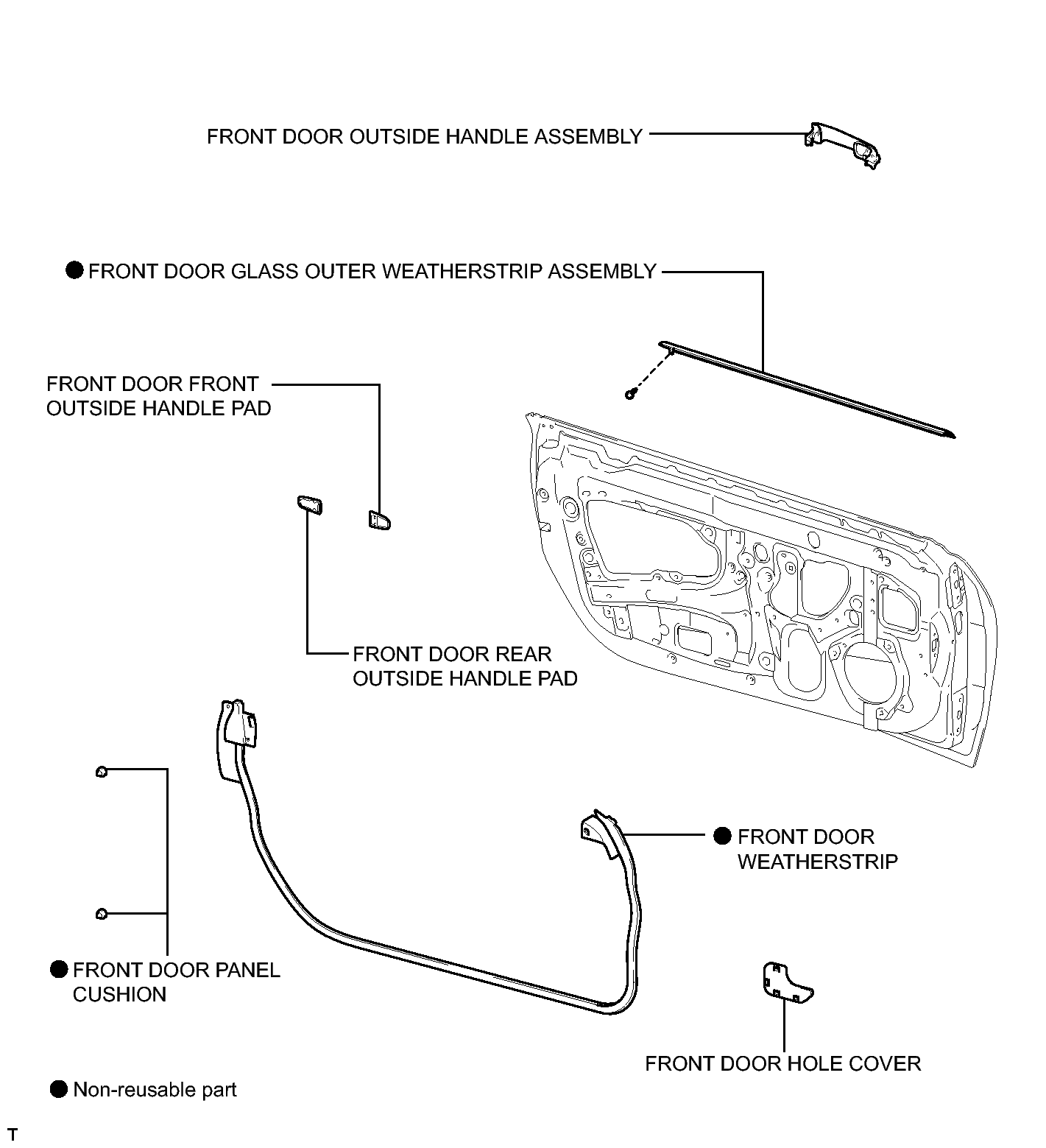

Fig 1: Identifying Front Door Replacement Components With Torque Specifications [03/2012 - 05/2013] (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

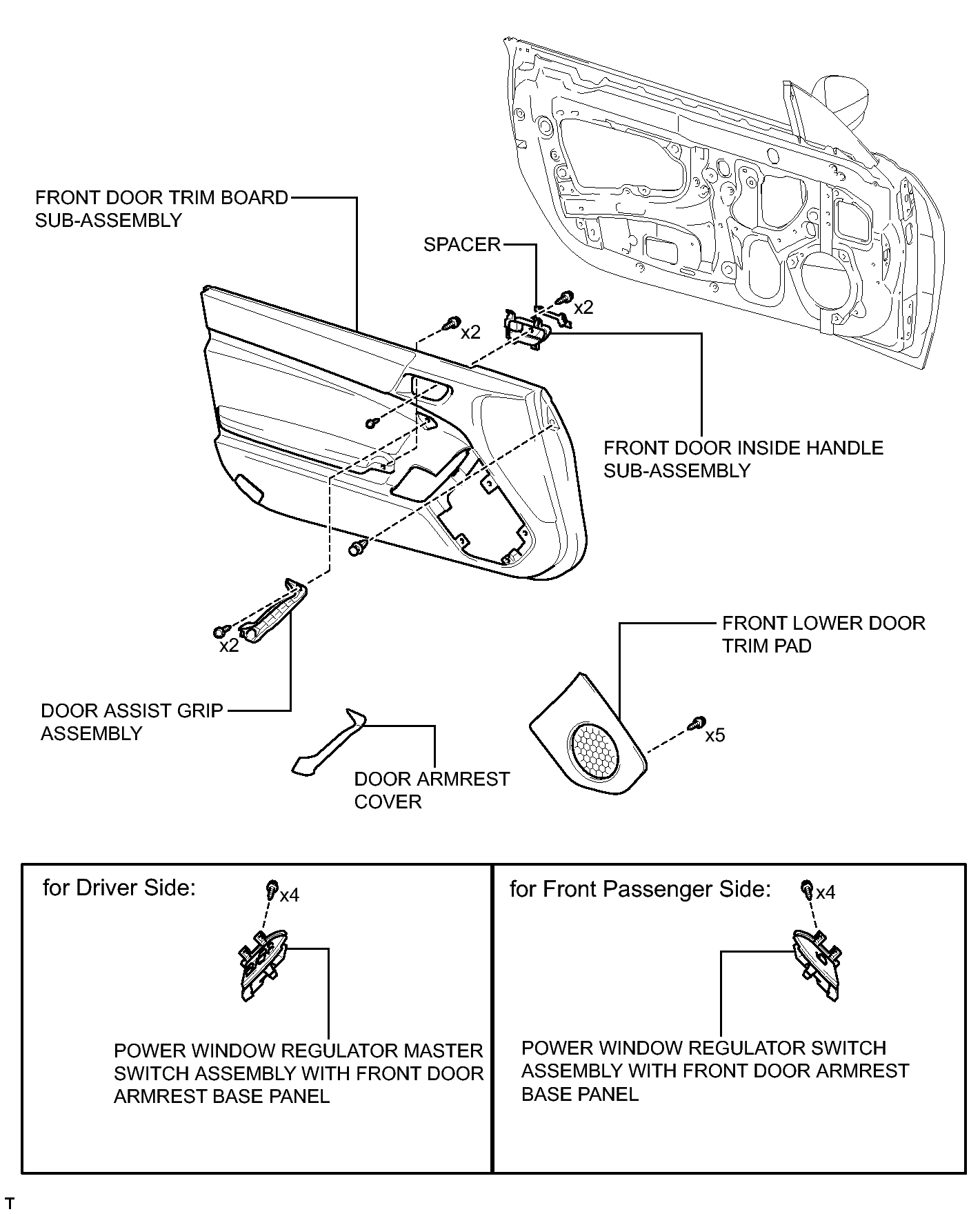

Fig 1: Identifying Front Door Replacement Components With Torque Specifications [03/2012 - 05/2013] (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

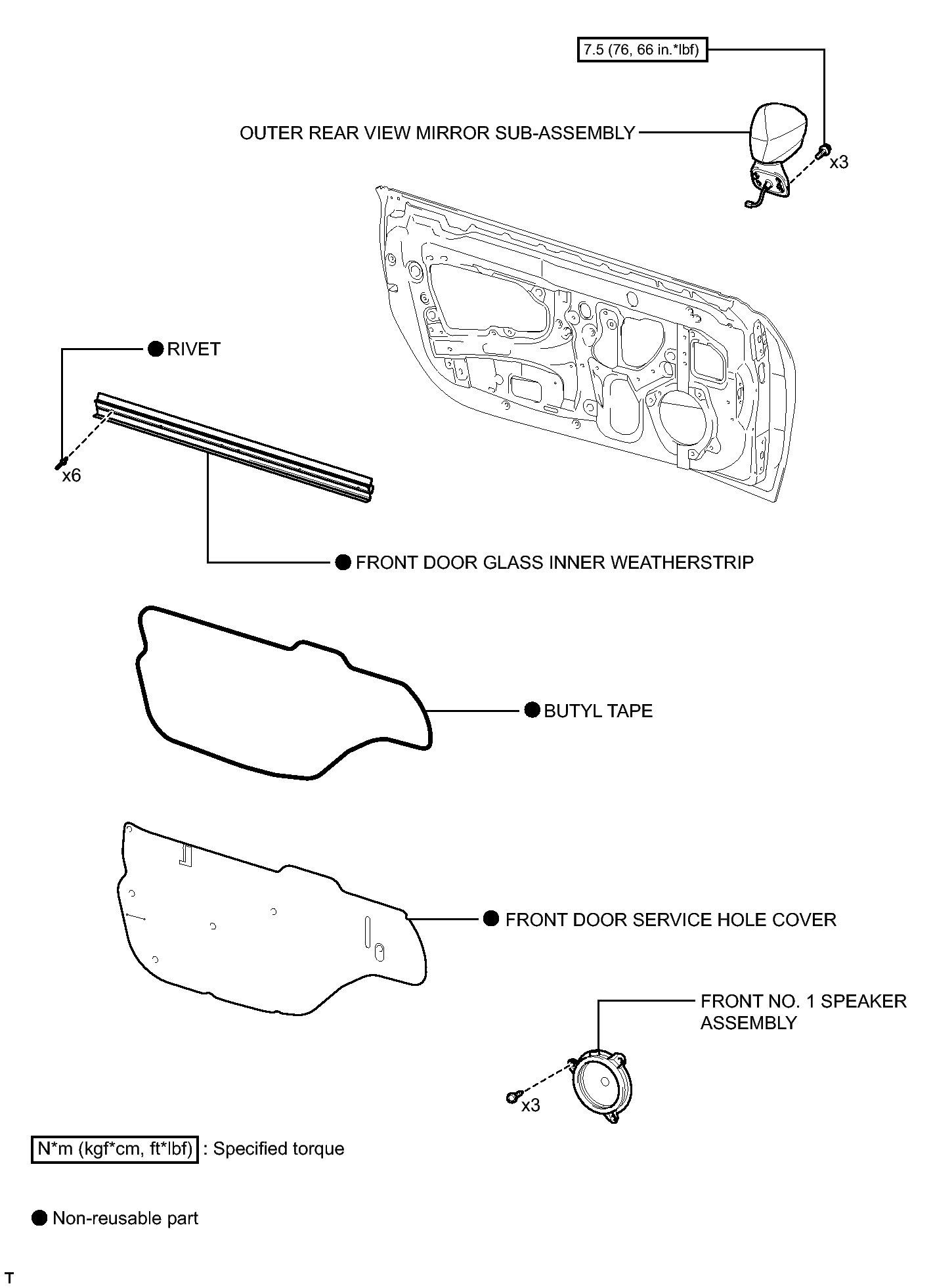

Fig 1: Identifying Front Door Replacement Components [03/2012 - 05/2013] (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
