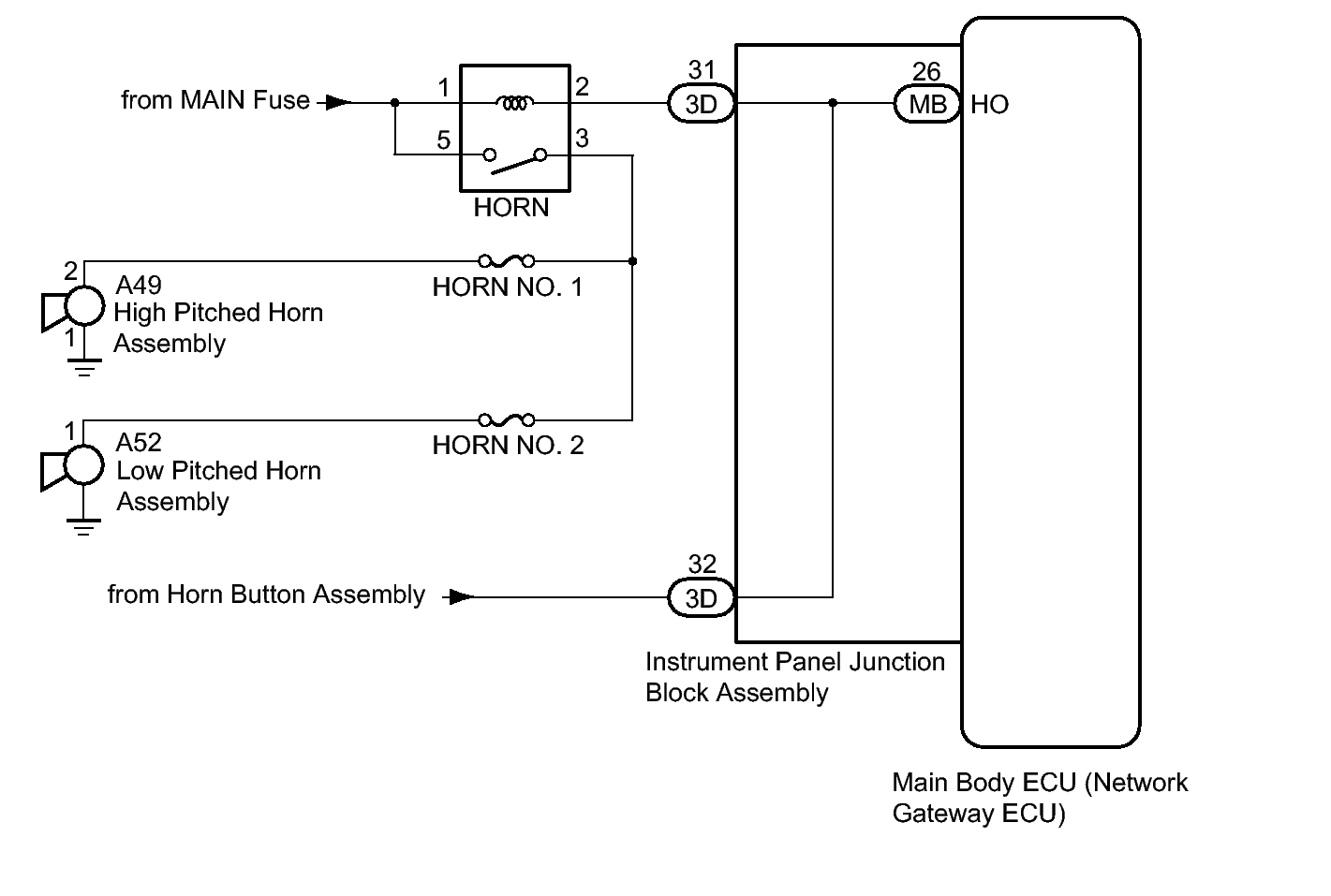

Home >> Scion >> 2013 >> FR-S Standard Trans >> Repair and Diagnosis (Single Page) >> Body & Frame >> Door Locks >> Theft Deterrent System (Diagnostics & Circuit Tests) >> Theft Deterrent System >> Circuit Tests >> Horn Circuit >> Wiring Diagram
