Components [03/2012 - ]: Illustration

Fig 1: Identifying Front Door Lock Replacement Components (1 Of 2)
GTY392629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

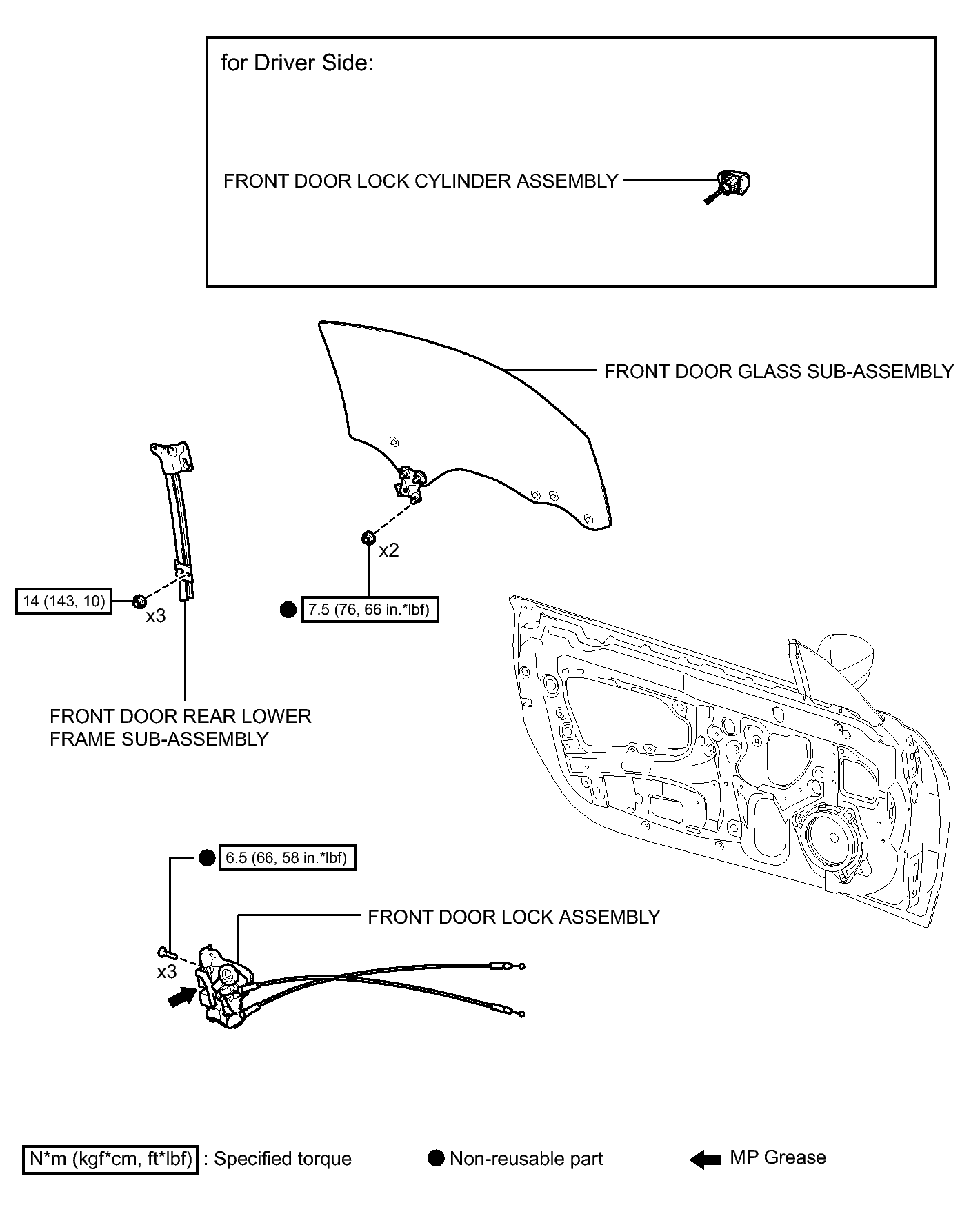

Fig 1: Identifying Front Door Lock Replacement Components With Torque Specifications (2 Of 2)
GTY389917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
