Removal [03/2012 - ]

HINT:

Use the same procedure as for the LH side.

HINT:

Use the same procedure as for the LH side.

HINT:

Disconnect the front door opening trim weatherstrip LH to the extent that allows the removal of the luggage compartment trim cover LH.

HINT:

Use the same procedure as for the LH side.

HINT:

Use the same procedure as for the LH side.

HINT:

Use the same procedure as for the LH side.

HINT:

Use the same procedure as for the LH side.

HINT:

Use the same procedure as for the LH side.

1. Apply protective tape to the installation position of the back window glass on the vehicle body.
   Fig 1: Apply Protective Tape To The Installation Position

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Protective Tape

   HINT:

   Apply protective tape to the vehicle body to prevent it from being scratched.

2. Using a knife, cut off the molding, as shown in the illustration.
   Fig 2: Cut Off The Molding

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Body
   *2	No. 1 Back Window Molding
   *3	Back Window Glass
   *a	Cut

   NOTE:

   • Do not damage the vehicle body with the knife.
   • If the vehicle body is damaged, repair the damaged portion by applying an anti-rust coating after removing the back window glass.
3. Place matchmarks on the back window glass and vehicle body on the locations indicated in the illustration.
   Fig 3: Matchmarks On The Back Window Glass And Vehicle Body

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a

   Matchmark

   HINT:

   Matchmarks are not needed to be placed if the back window glass will not be reused.

4. Disconnect the connector.
5. Pass a piano wire between the vehicle body and back window glass from the interior.

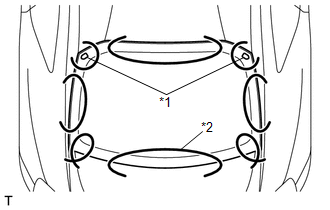

   Fig 4: Piano Wire

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Back Window Glass Stopper
   *2	Piano Wire

6. Tie both wire ends to wooden blocks or similar objects.
7. Cut off the adhesive by pulling the piano wire around the back window glass.
   NOTE:

   • When separating the back window glass, take care not to damage the paint or interior and exterior ornaments.
   • To prevent the package tray from being scratched when removing the back window glass, place a plastic sheet between the piano wire and package tray.
8. Using suction cups, disengage the windshield glass stoppers and remove the back window glass.
   Fig 5: Disengage The Windshield Glass Stoppers

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Back Window Glass Stopper

   NOTE:

   • There are 2 back window glass stoppers on the back window glass, as shown in the illustration. Be careful not to damage the back window glass when cutting off the adhesive.
   • To prevent the back window glass from dropping when performing this operation, be sure to hold the back window glass using suction cups.

1. When reusing the back window glass:
   1. Using a scraper, remove the back window glass adhesive dam.
      Fig 6: Back Window Glass Adhesive Dam

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1	Back Window Glass Adhesive Dam
      *a	Back Side

      NOTE:

      • Be careful not to damage the back window glass.
      • Be sure to replace the back window glass adhesive dam with a new one.

1. When reusing the back window glass:
   1. Using a scraper, remove the No. 1 back window molding.
      Fig 7: Remove The No. 1 Back Window Molding

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1	No. 1 Back Window Molding
      *a	Back Side

      NOTE:

      • Be careful not to damage the back window glass.
      • Be sure to replace the No. 1 back window molding with a new one.

1. When reusing the back window glass:
   1. Using a scraper, remove the No. 1 back window glass stopper.
      Fig 8: Remove The No. 1 Back Window Glass Stopper

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1	No. 1 Back Window Glass Stopper
      *2	No. 2 Back Window Glass Stopper
      *a	Back Side

      NOTE:

      • Be careful not to damage the back window glass.
      • Be sure to replace the No. 1 back window glass stopper with a new one.

1. When reusing the back window glass:

   HINT:

   Use the same procedure as for the No. 1 back window glass stopper.

1. Using a scraper, remove the adhesive tape and adhesive sticking to the back window glass.
   NOTE:

   Be careful not to damage the back window glass.

2. Clean the outer circumference of the back window glass with a non-residue solvent.
   Fig 9: Removing Adhesive Tape And Adhesive Sticking To Back Window Glass

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • Do not touch the glass surface after cleaning it.
   • Even if using new glass, clean it with a non-residue solvent.

1. Clean and shape the contact surface of the vehicle body.
   1. Using a knife, cut away any rough adhesive on the contact surface of the vehicle body to ensure the appropriate surface shape.
      NOTE:

      Be careful not to damage the vehicle body.

      HINT:

      Leave as much adhesive on the vehicle body as possible.

      Fig 10: Cut Away Excess Adhesive

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Dimension

      Area	Dimension
      a	2.0 mm (0.0787 in.)

      TEXT IN ILLUSTRATION



      *1	Body	-	-
      	Adhesive	-	-

   2. Clean the contact surface of the vehicle body with a piece of cloth saturated with cleaner.

      HINT:

      Even if all the adhesive has been removed, clean the vehicle body.
