Parts Location [03/2012 - ]: Illustration

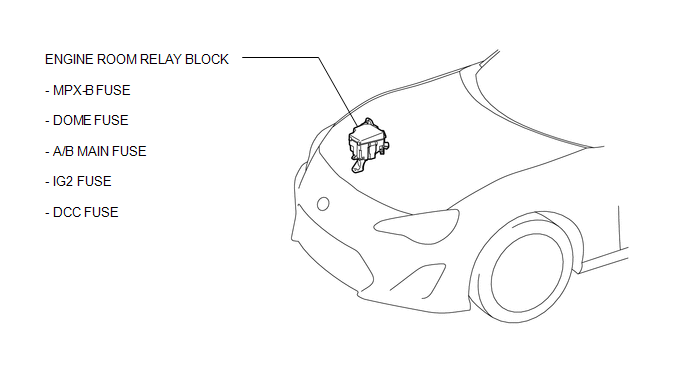

Fig 1: Identifying Seat Belt Warning System Components Location (1 Of 2)
GTY390620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

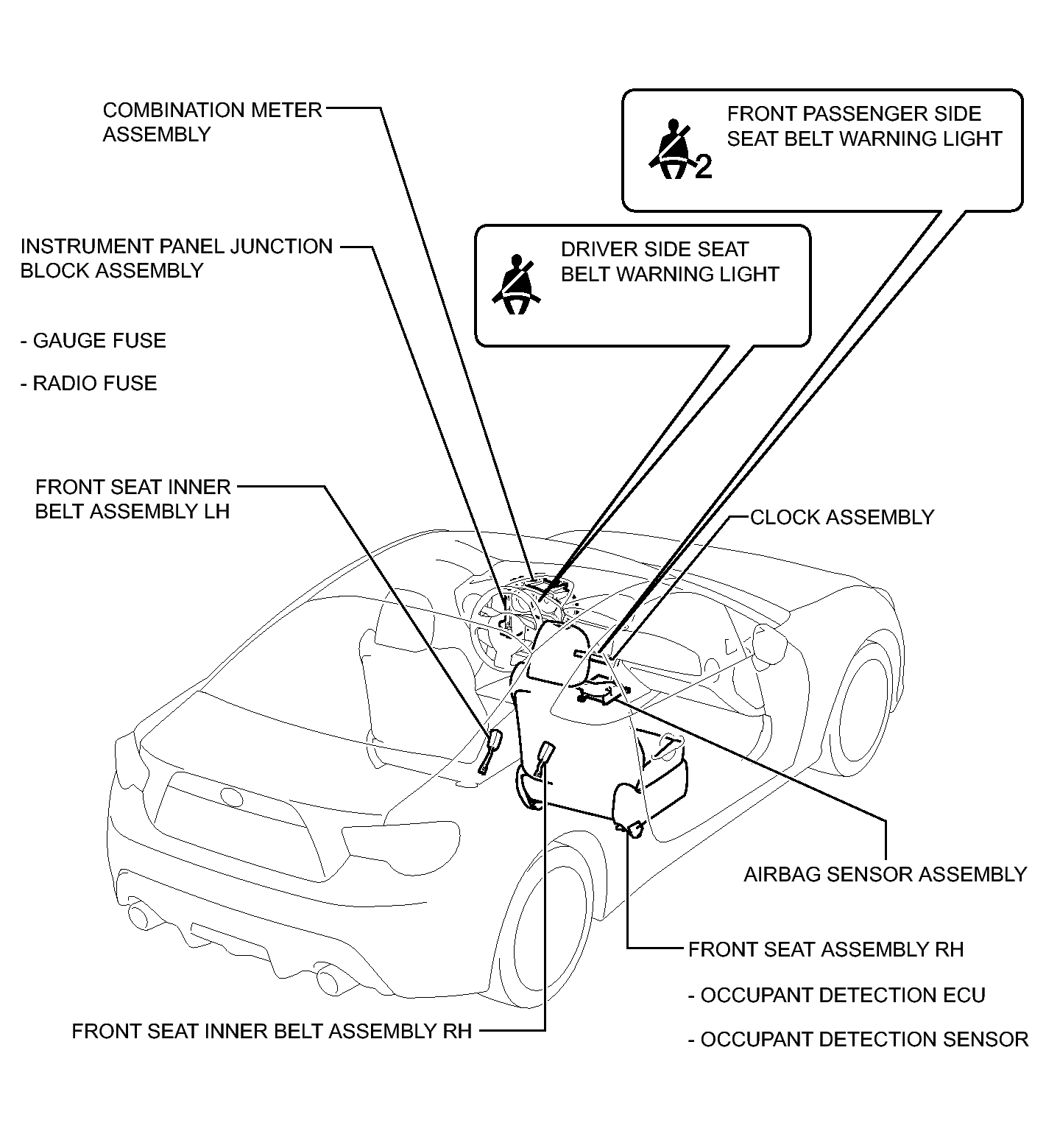

Fig 1: Identifying Seat Belt Warning System Components Location (2 Of 2)
GTY388116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
