Components [03/2012 - ]: Illustration

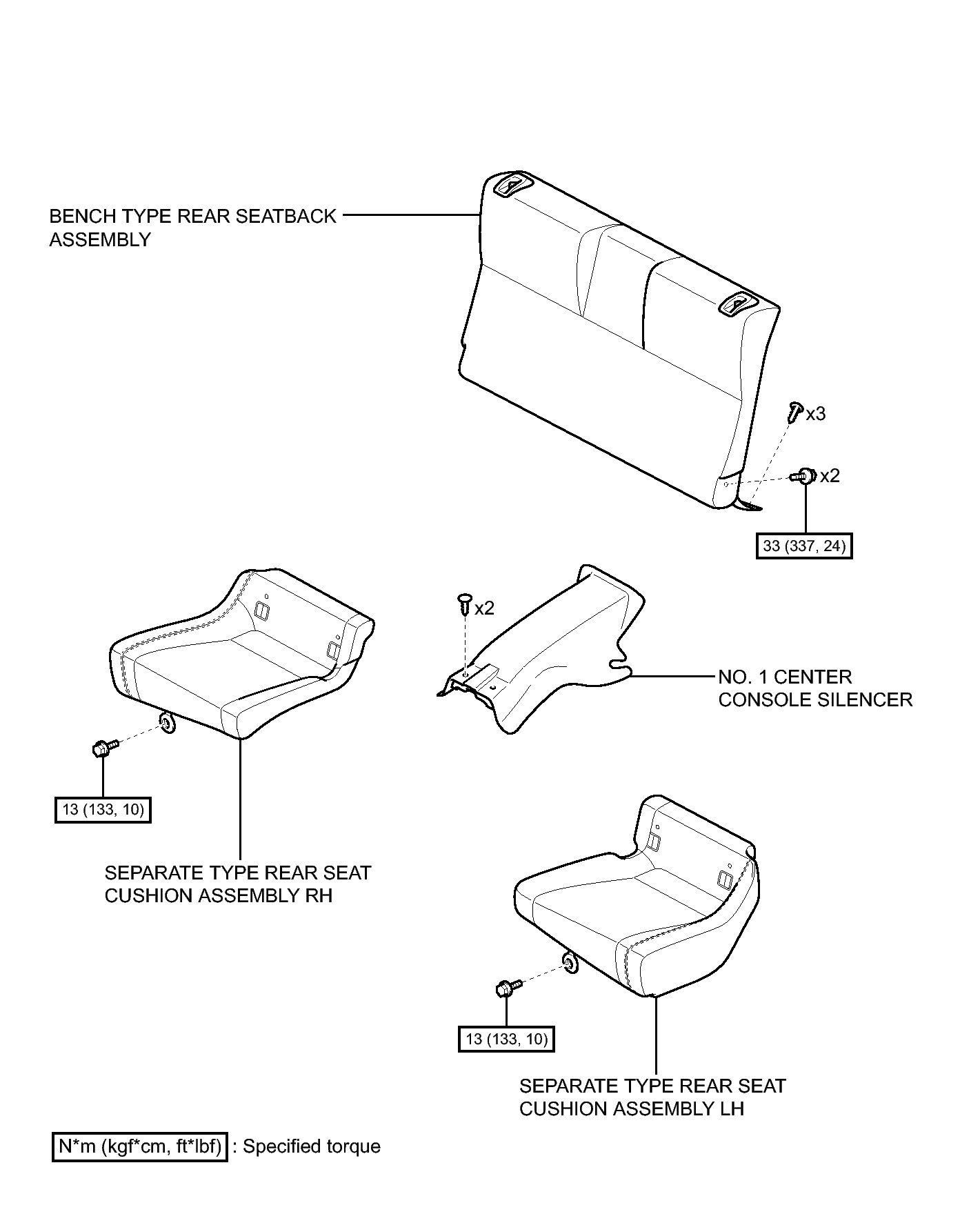

Fig 1: Identifying Rear Seat Assembly Replacement Components With Torque Specifications (1 Of 4)
GTY392415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


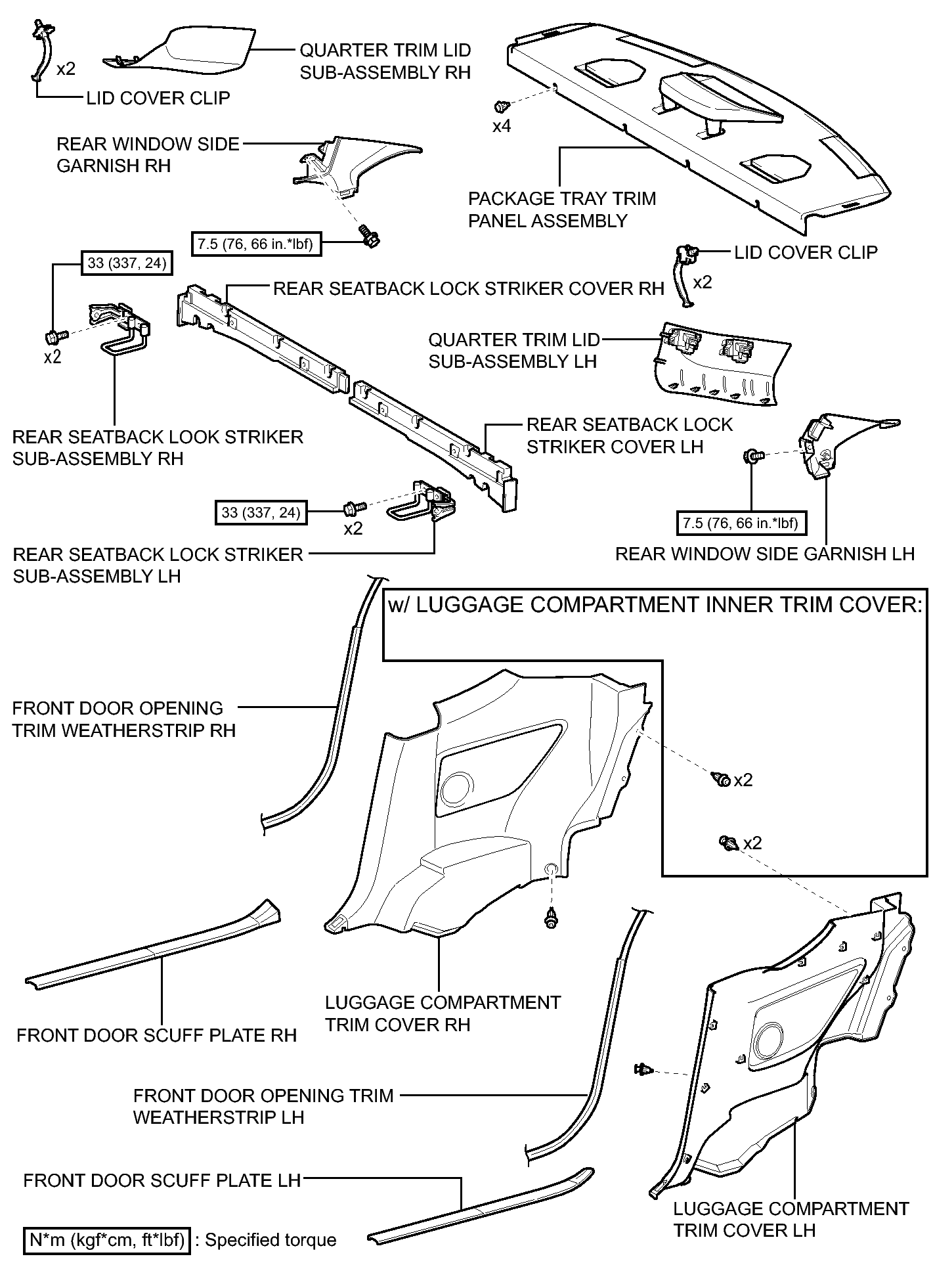

Fig 1: Identifying Rear Seat Assembly Replacement Components With Torque Specifications (2 Of 4)
GTY387791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

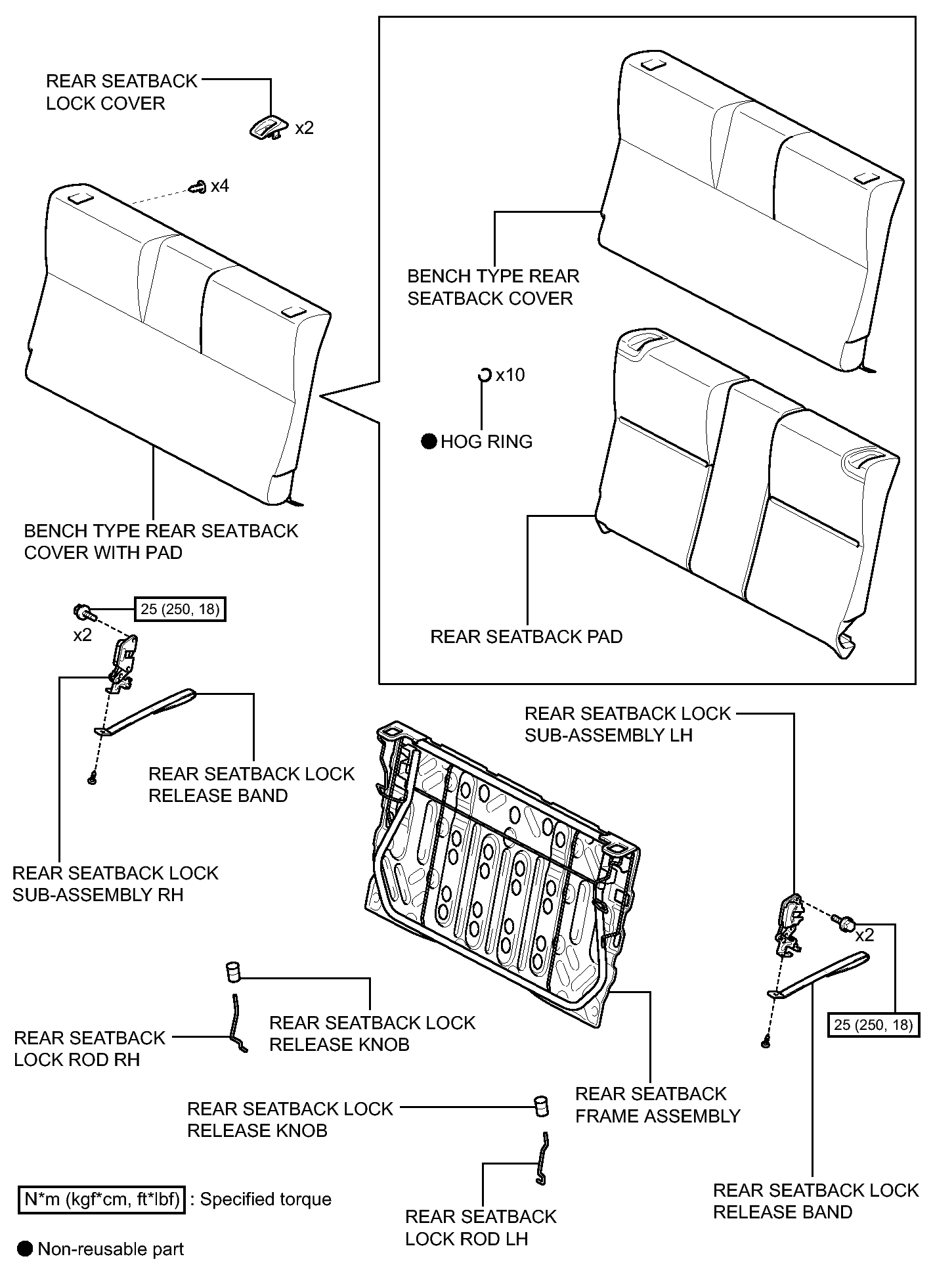

Fig 1: Identifying Rear Seat Assembly Replacement Components With Torque Specifications (3 Of 4)
GTY391650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

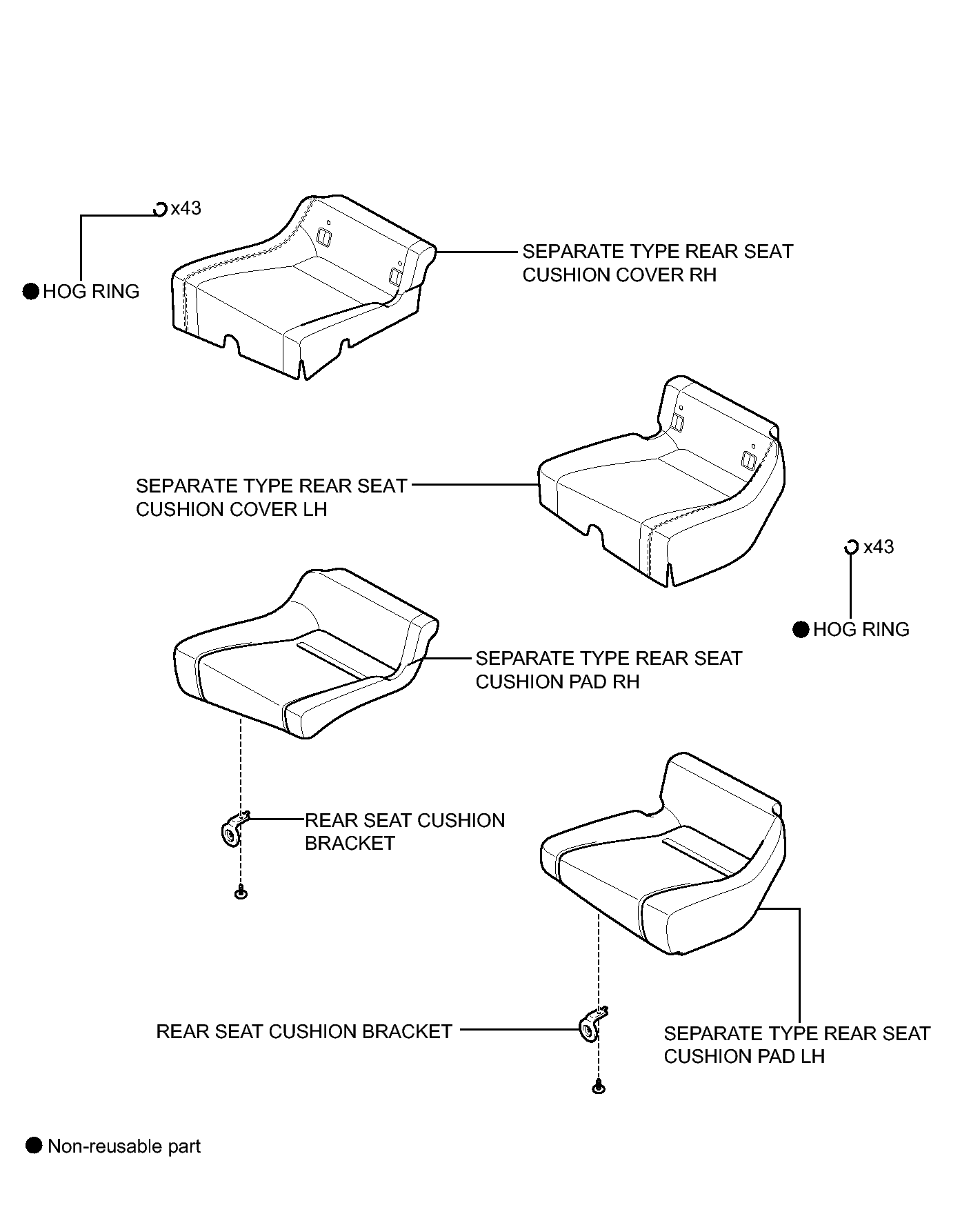

Fig 1: Identifying Rear Seat Assembly Replacement Components (4 Of 4)
GTY390348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
