Removal [03/2012 - ]

  1. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
    1. Turn the No. 1 luggage compartment light assembly in the direction indicated by the arrow in the illustration, and disconnect it.

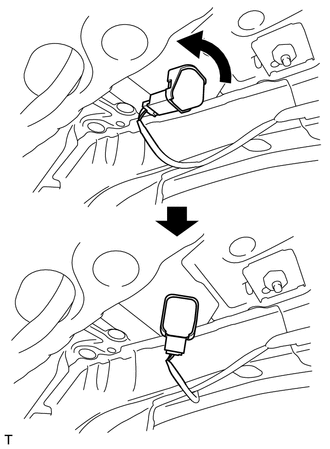

      Fig 1: No. 1 Luggage Compartment Light Assembly
      GTY387711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the No. 1 luggage compartment light assembly.

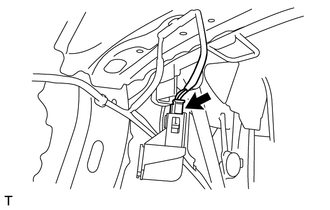

      Fig 2: Connector And Remove The No. 1 Luggage Compartment Light Assembly
      GTY392267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE LUGGAGE COMPARTMENT LIGHT LENS
    1. Disengage the 2 claws and remove the luggage compartment light lens.
      Fig 3: 2 Claws
      GTY388119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE LUGGAGE COMPARTMENT LIGHT BULB
    1. Remove the luggage compartment light bulb from the luggage compartment light body.
      Fig 4: Luggage Compartment Light Bulb
      GTY392339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
