Parts Location [05/2013 - ]: Illustration

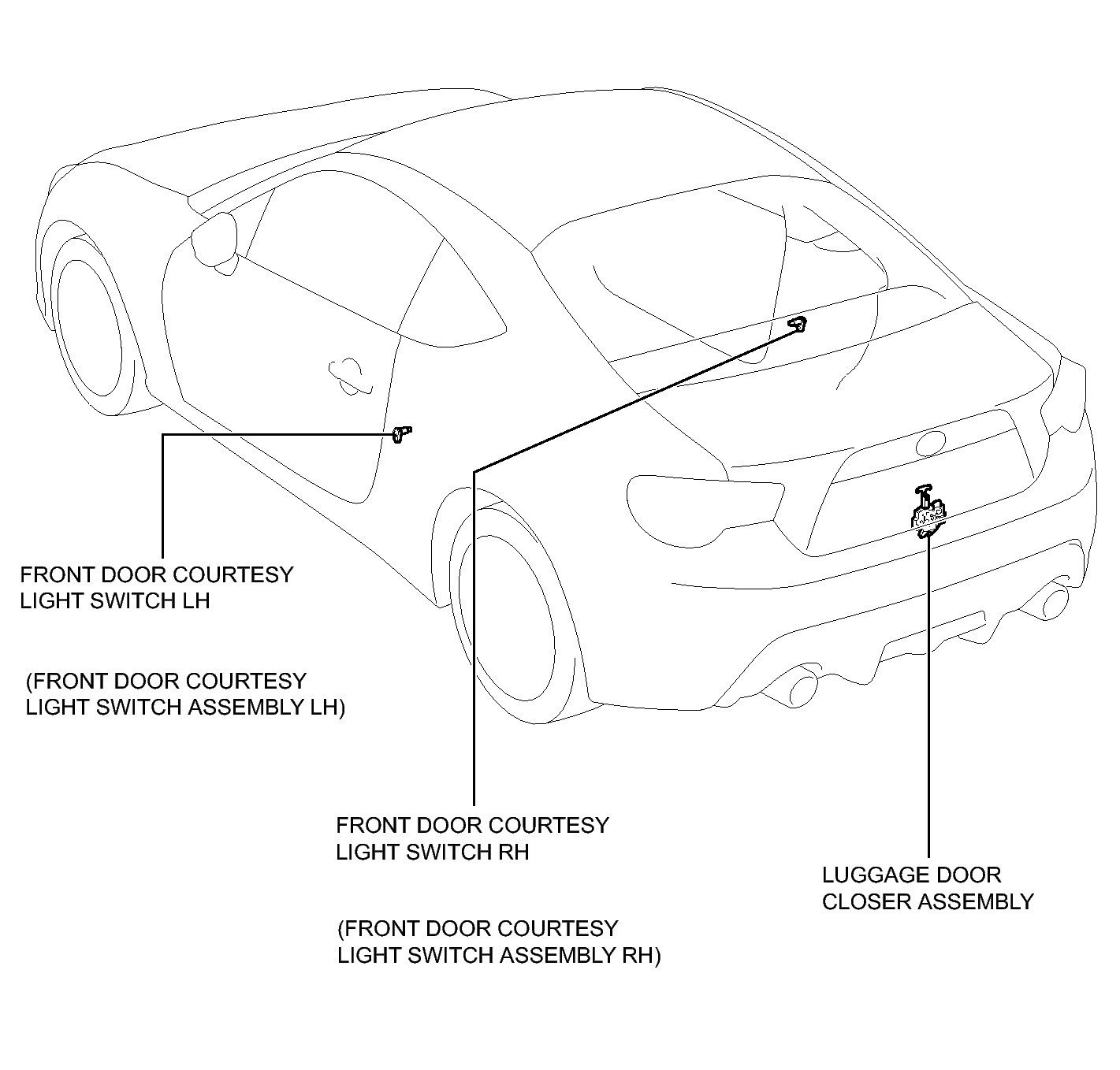

Fig 1: Identifying Lighting System Components Location (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Lighting System Components Location (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Lighting System Components Location (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
