Parts Location [03/2012 - 05/2013]: Illustration

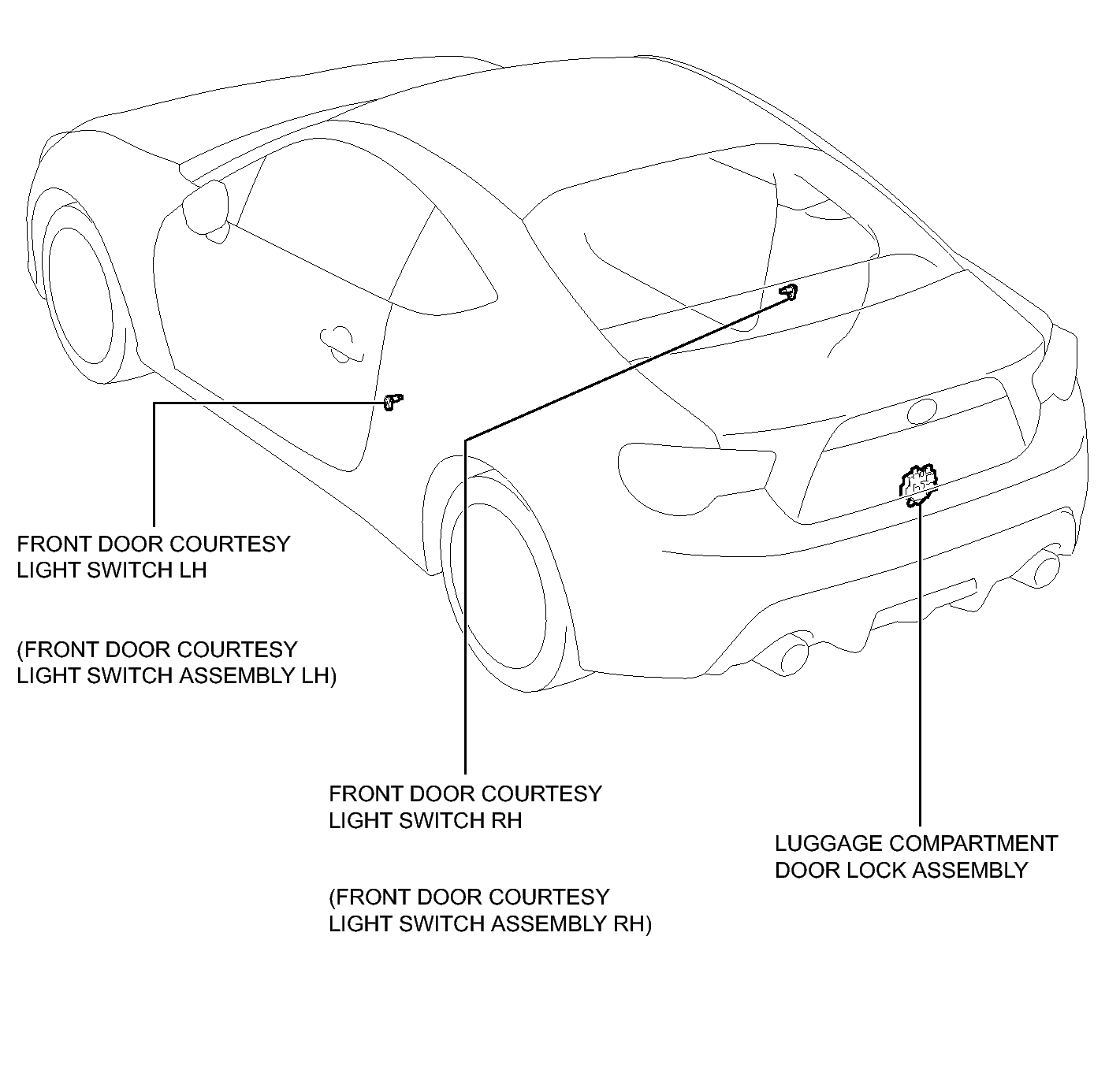

Fig 1: Identifying Lighting System Components Location (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

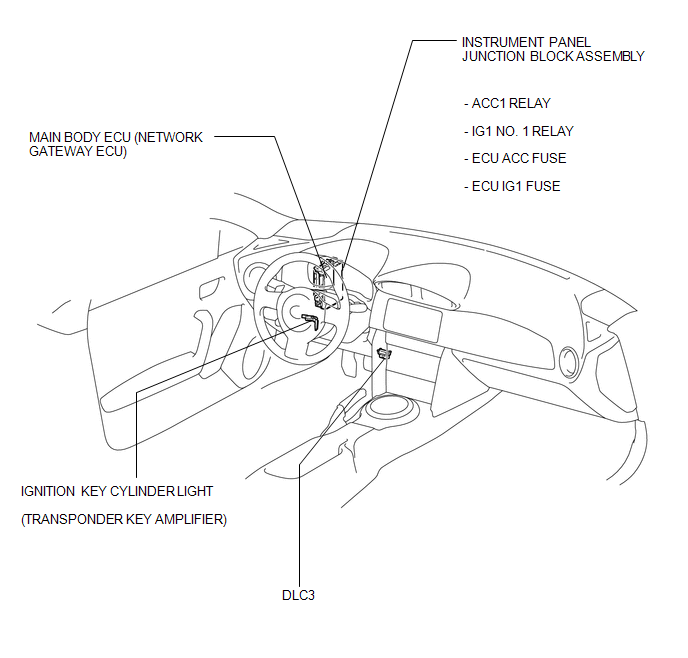

Fig 1: Identifying Lighting System Components Location (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

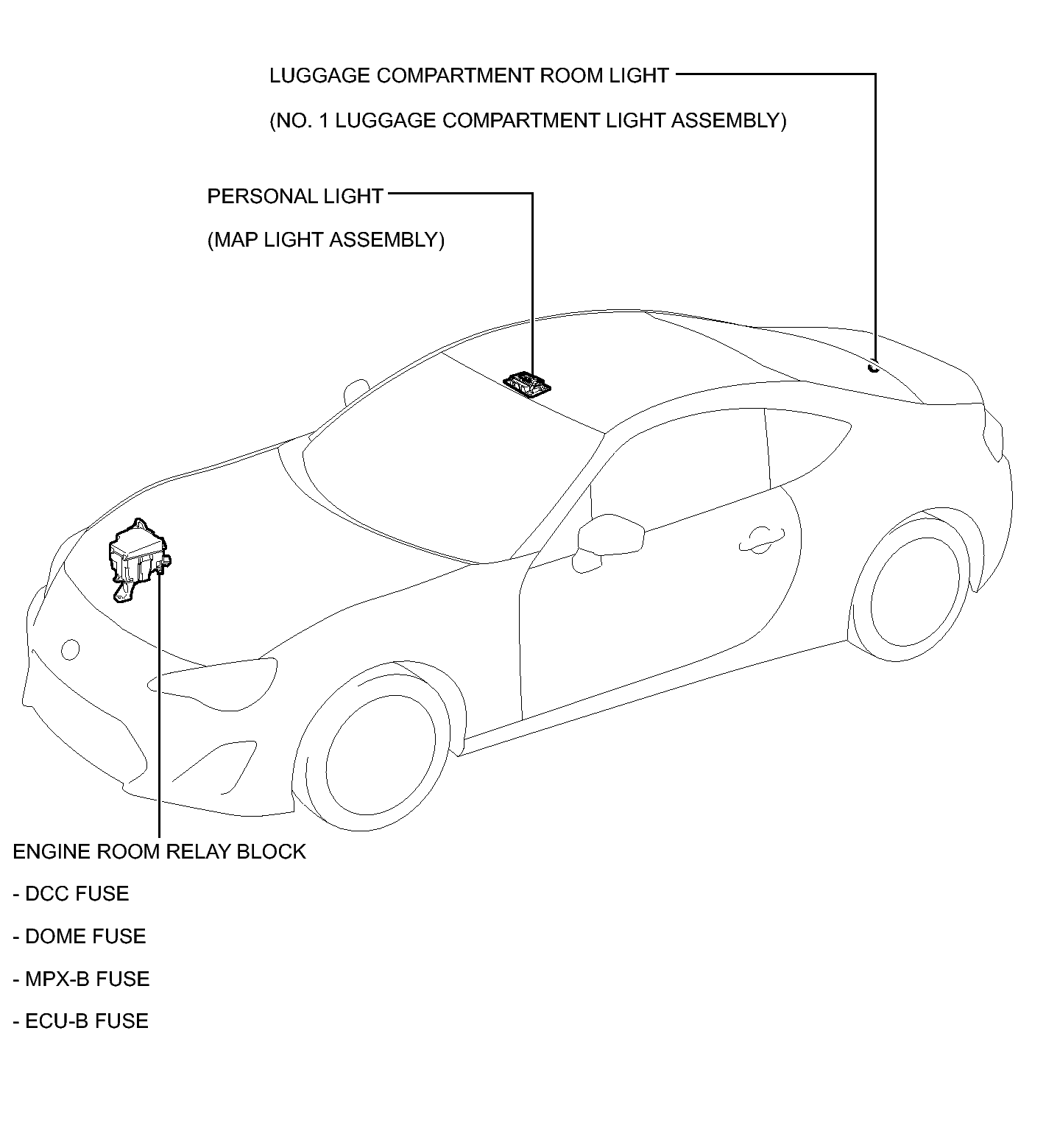

Fig 1: Identifying Lighting System Components Location (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
