Removal [03/2012 - ]

HINT:

Use the same procedure for the RH and LH sides.

1. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP

   HINT:

   Separate the front door opening trim weatherstrip to the extent that allows the removal of the luggage compartment trim cover.

2. REMOVE FRONT DOOR SCUFF PLATE  . Refer to REMOVAL [03/2012 - ] - Step 7
3. REMOVE REAR SEAT CUSHION ASSEMBLY  . Refer to REMOVAL [03/2012 - ] - Step 1
4. SEPARATE LUGGAGE COMPARTMENT INNER TRIM COVER  . Refer to REMOVAL [03/2012 - ] - Step 17
5. REMOVE LUGGAGE COMPARTMENT TRIM COVER  . Refer to REMOVAL [03/2012 - ] - Step 19
6. REMOVE REAR SPEAKER ASSEMBLY
   1. Disconnect the connector.

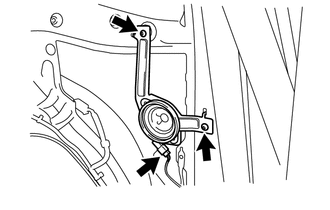

      Fig 1: Locating Rear Speaker Assembly Screws And Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the 2 screws and the rear speaker assembly.
      NOTE:

      Do not touch the speaker cone.
