Removal [03/2012 - ]

HINT:

Use the same procedure for the RH and LH sides.

1. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY  . Refer to REMOVAL [03/2012 - 05/2013] - Step 8
2. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
   1. Disengage the 3 claws and remove the front No. 2 speaker assembly from the No. 1 instrument speaker panel sub-assembly.
      NOTE:

      Do not touch the cone part of the speaker.

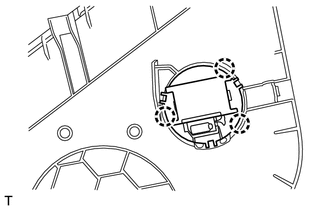

      Fig 1: Locating Front No. 2 Speaker Assembly Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
